Aiphone IPW-1A Instructions

The IPW-1A offers voice-quality Intercom function over standard IP based networks. Designed specifically to integrate
seamlessly into a new or existing LAN / WAN infrastructure, the IPW-1A system is capable of supporting hundreds of
stations. Providing intercom/paging solutions to a large variety of applications including commercial, industrial,
residential, general security, office, and institutional.
1
NAMES & FEATURES
IPW-1A
Front plate
1 2
Rear plate

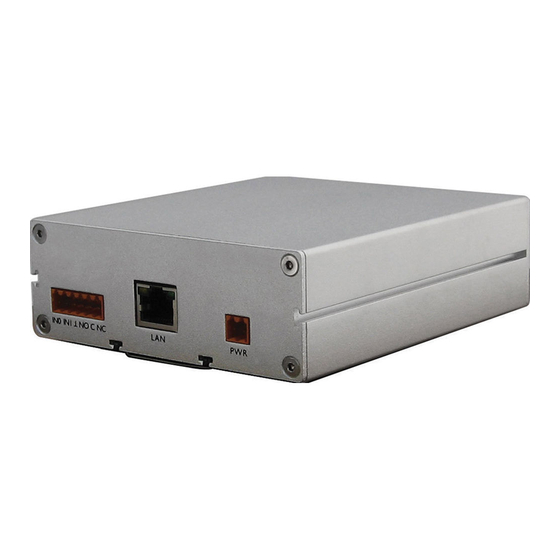

IN0 IN1 NO C NC
IN0 IN1 NC C NO
5 6
FEATURES:
·
Cost-effective multi-master (PC-based) based design
·
Compatible with IE Series sub stations and AX-DM
·
Scalable to hundreds of stations / locations
·
Works with standard wired and wireless network infrastructure. (LAN/WAN)
·
Digital audio recording and playback capability via included software.
·
Relay output for remote release (N/O or N/C)
Intercom-Over-IP Adaptor
- INSTRUCTIONS -
3 4
PWR
7
0211
IPW-1A
NAMES & FUNCTIONS:
1. Reset switch (reset unit)
2. RS-232 Serial Port (for firmware recovery)
3. Green and Red Status Lights
4. Sub station connector
5. Door release relay output &
external input.
Door release:
NC = Normally closed contact
NO = Normally open contact
C = Common
External input:
IN0 = call button input (simulates door call in)
IN1 = sensor input (changes icon in CommuniCenter adaptor list)
Gnd = ground
6. RJ-45 10/100 ethernet jack & connection indicator LED's (network
connection)
7. Power input connector
Package Contents:
(1) IPW-1A
(1) PT-1211C
(1) Mounting hardware
(1) Software CD
(1) Install manual
Pg. 1
