Miele CS 1212 Operating And Installation Manual

Ceramic hobs with induction
Hide thumbs

Advertisement

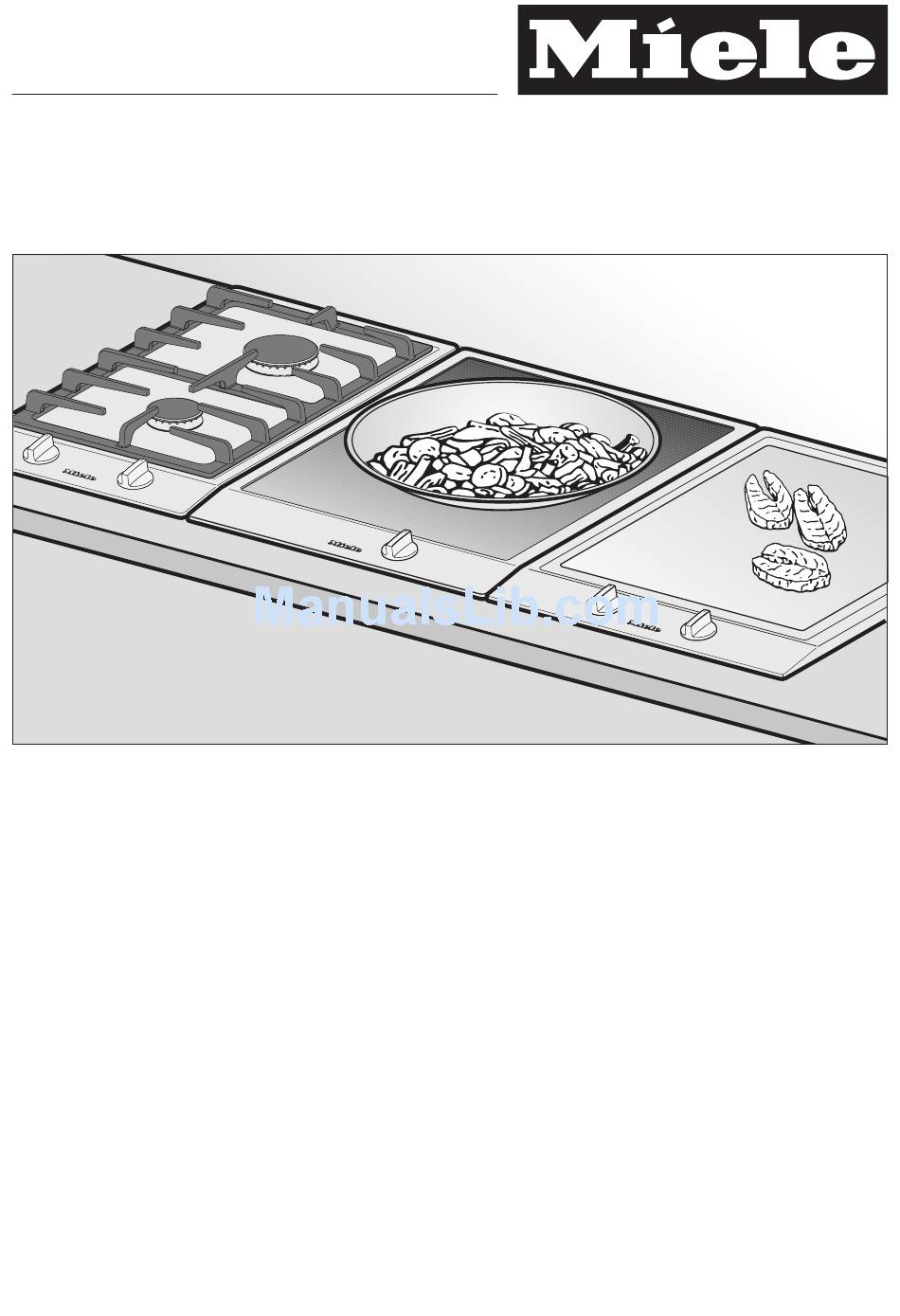

Operating and installation instructions
Ceramic hobs with induction
CS 1212
CS 1221
CS 1234
en - GB
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time.
M.-Nr. 07 180 660

Advertisement

loading

  Also See for Miele CS 1212

  Related Manuals for Miele CS 1212

  Summary of Contents for Miele CS 1212

  • Page 1 Operating and installation instructions Ceramic hobs with induction CS 1212 CS 1221 CS 1234 en - GB To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.
  • Page 2: Table Of Contents

    CS 1212 ........
  • Page 3 CS 1212 ........
  • Page 4: Guide To The Appliance

    Guide to the appliance CS 1212 a Cooking zone with twin booster (BI/II) Cooking zone controls: b Cooking zone with single booster (Bl) f Rear c Display g Front d Cooking zone symbols e Indicators Indicators l In-operation indicator m Booster indicator...
  • Page 5 Guide to the appliance CS 1221 a Cooking zone with twin booster (BI/II) Indicators b Display c Indicators d Control l In-operation indicator m Booster indicator n Residual heat indicator...
  • Page 6 Guide to the appliance CS 1234 abd Cooking zones with single Cooking zone controls: booster (BI) g Rear right c Cooking zone with twin booster (BI/II) h Front right e Cooking zone symbols i Rear left f Indicators j Front left k Display Indicators l In-operation indicator...
  • Page 7: Display

    = Booster I = Booster II (only for cooking zones with twin boosters) = Safety lock (see "Safety features") Cooking zones Cooking zone CS 1212 minimum to maximum C Rating in watts for 230 V** in cm* 10 - 16...
  • Page 8 Guide to the appliance CS 1221 minimum to maximum C Rating in watts for 230 V** in cm* 18 - 30 normal: 2400 with Booster I: 3000 with Booster II: 3700 Cooking zone CS 1234 minimum to maximum C Rating in watts for 230 V** in cm* Front left 14 - 19...
  • Page 9: Warning And Safety Instructions

    Any other use is not supported by the on to any future owner. manufacturer and could be dangerous. Miele cannot be held liable for damage resulting from incorrect or improper use or operation of the appliance. This appliance is not intended for...
  • Page 10 Warning and Safety instructions Safety with children Packaging, e.g. cling film, polystyrene and plastic wrappings, Activate the safety lock to ensure must be kept out of the reach of babies that children cannot switch on the and young children. Danger of appliance inadvertently.
  • Page 11 Miele cannot be held liable During installation, maintenance and for the consequences of an inadequate repair work, the appliance must be earthing system (e.g.
  • Page 12 Miele original with current local and national safety spare parts. The manufacturer can only regulations. Miele cannot be held liable guarantee the safety of the appliance for damage caused by incorrect when Miele replacement parts are installation or connection.
  • Page 13 Pans that have boiled dry can cause ceramic surface and be difficult to damage to the ceramic surface for dislodge. which Miele cannot be held liable. Switch the cooking zones off after use. Boiling fat or oil could ignite and cause Where several appliances are a fire.
  • Page 14 Warning and Safety instructions Do not use plastic or aluminium foil Do not allow either solid or liquid containers These melt at high sugar, or pieces of plastic or aluminium temperatures and could catch fire. foil to get onto the cooking zones when they are hot.
  • Page 15 Cutlery inserts must be heat-resistant. Miele cannot be held liable for Metal utensils stored in a drawer damage caused by non-compliance under the hob can become hot if the...
  • Page 16: Caring For The Environment

    Caring for the environment Disposal of the packing Disposal of your old appliance material Electrical and electronic appliances often contain materials which, if The transport and protective packing handled or disposed of incorrectly has been selected from materials which could be potentially hazardous to are environmentally friendly for human health and to the environment.
  • Page 17: Before Using For The First Time

    Before using for the first time Before using for the first time Please stick the extra data plate for the appliance supplied with this When the induction hob is first documentation in the space provided in connected, and after a power cut, all of the "After sales service, data plate"...
  • Page 18: Induction

    Induction The induction principle If no pan or an unsuitable pan is placed on the cooking zone, the cooking zone An induction coil is located under each will switch off automatically after 3 cooking zone. When a cooking zone is minutes.
  • Page 19: Noises

    Induction Noises The appliance has a cooling fan to help extend the life of the electronics. When When using an induction cooking zone, the hob is being used intensively, this the following noises can occur in the will come on and you will hear a pan, depending on what it is made of whirring sound.
  • Page 20: Pans

    Induction Pans Make sure that you always place the Suitable pans include: pan in the middle of the cooking zone. If the pan only partially covers – stainless steel pans with a magnetic the zone, the handle could become base very hot.
  • Page 21: Operation

    Operation Switching on and off Residual heat indicator The residual heat indicator remains on until the induction hob is cool enough to touch. Do not touch or place any heat sensitive objects on the hob while the residual heat display is still on. Danger of burning and fire.
  • Page 22: Settings

    Operation Settings Cooking process Settings* Keeping warm Melting butter 1 - 2 Dissolving gelatine Making milk puddings Warming small quantities of liquid Cooking rice Defrosting frozen vegetables Cooking pulses Warming liquid and semi-solid foods Making omelettes and lightly frying eggs Steaming fruit Cooking dumplings Steaming vegetables, fish...
  • Page 23: Auto Heat-Up

    Operation Auto heat-up Activating Auto heat-up ^ Turn the control anticlockwise as far Continued Heat-up time as it will go and hold in that position cooking setting in minutes and until A appears in the display. seconds (approx.) 0 : 15 If you hold the control for too long, L will appear in the display which 0 : 15...
  • Page 24: Booster Function

    Operation Booster function The extra boost of energy is only available by taking a proportion of The cooking zones are equipped with energy away from another cooking Single (l) or Twin Boosters (I/II) (see zone. For this reason, the cooking "Guide to the appliance").
  • Page 25 Operation To activate Booster l ^ Turn the control past power setting 9 to BI or BI/II, and then back to 9. I will appear in the display for the cooking zone and the B booster indicator will light up. To activate Booster II ^ Turn the control past power setting 9 to BI/II, and then back to 9.
  • Page 26: Keeping Warm

    Operation Keeping warm Useful tips Each cooking zone has a keeping Only use pans for keeping food warm. warm function. Cover the pan with a lid. If the keeping warm function has been You do not have to stir food while it is activated, the cooking zone will switch being kept warm.
  • Page 27: Tips On Saving Energy

    Tips on saving energy – Use a pan lid whenever possible to minimise heat loss. uncovered covered – Select a smaller pan when cooking small quantities. A smaller pan uses less energy than a larger pan with very little in it. –...
  • Page 28: Safety Features

    Safety features Safety lock Safety switch-off Keep children away from the hob for Your hob is fitted with a safety their own safety. switch-off feature in case you forget to Your appliance is equipped with a switch it off yourself. safety lock to prevent the hob and If one of the cooking zones is heated cooking zones being switched on.
  • Page 29: Overheating Protection

    Safety features Overheating protection – If the temperature rises after the power supply has been reduced, the All the induction coils and the cooling cooking zones will switch off. element for the electronics are fitted Other cooking zones may switch off with an overheating protection shortly afterwards.
  • Page 30: Cleaning And Care

    Cleaning and care Miele offer a range of branded cleaning To avoid damaging the surface or and conditioning agents for your hob. your hob, do not use: See "Optional accessories". – cleaning agents containing soda, alkalines, ammonia, acids or Under no circumstances use a...
  • Page 31 Cleaning and care Ceramic surfaces Stainless steel Wipe all coarse soiling off using a The ceramic and stainless steel hob damp cloth. Stubborn soiling may need cleaner is suitable for cleaning stainless to be removed with a shielded scraper steel surfaces (see "Optional blade.
  • Page 32: Problem Solving Guide

    "d" If the hob still will not switch on, contact symbol appears in the display and a qualified electrician or the Miele Ser- the cooking zone does not heat up. vice Department. The hob is in demonstration mode.
  • Page 33 Problem solving guide ... after the cooking zone has been ... the food in the pan hardly heats up switched on for a few seconds L or does not heat up at all when the appears in the display. Auto heat-up function is switched on. The safety lock has been activated (see This could be because: "Safety lock").
  • Page 34: Optional Accessories

    Miele branded cleaning and conditioning products are available for your appliance. These can be ordered via the internet at www.miele-shop.com or from Miele (see back cover for contact details). Ceramic and stainless steel hob cleaner 250 ml Removes heavy soiling, limescale deposits and aluminium...
  • Page 35: Safety Instructions For Installation

    Safety instructions for installation This appliance must not be installed Fit the wall units and extractor hood over a dishwasher, washing machine, before fitting the appliance to avoid tumble dryer, refrigerator or freezer. damaging the surface. The high temperatures radiated by hobs could damage the appliance The veneer or laminate coatings of below.
  • Page 36 Safety instructions for installation Safety distance above the appliance When two or more appliances are installed together below a cooker hood, e.g. an induction hob or wok and a gas hob, which have different safety distances given in the installation instructions, you should select the greater distance of the two.
  • Page 37 The minimum distance a between the worktop cut-out and a wall or tall unit to the right or left of it is: 40 mm CS 1212 CS 1221 CS 1234 / CS 1234-1 CS 1223 50 mm...
  • Page 38 Safety instructions for installation Safety distance when installing the appliance near a wall with additional niche cladding A minimum safety distance must be maintained between the worktop cut-out and any niche cladding to protect it from heat damage. If the niche cladding is made from a combustible material (e. g. wood) a minimum safety distance e of 50 mm must be maintained between the cut-out and the cladding.
  • Page 39: Appliance And Building-In Dimensions

    Appliance and building-in dimensions CS 1212 a Spring clamps b Front c Casing depth d Casing depth including mains connection box with mains connection cable, L = 1,440 mm...
  • Page 40 Appliance and building-in dimensions CS 1221 a Spring clamps b Front c Casing depth d Casing depth including mains connection box with mains connection cable, L = 1,440 mm...
  • Page 41 Appliance and building-in dimensions CS 1234 a Spring clamps b Front c Casingdepth d Casing depth including mains connection box with mains connection cable, L = 2,000 mm...
  • Page 42: Preparing The Worktop

    Preparing the worktop ^ Make the worktop cut-out for one or more appliances as applicable. Remember to maintain a minimum safety distance from the back wall, as well as from any tall unit or side wall to the right or left of the appliance.
  • Page 43: Installation Of Several Appliances

    Installation of several appliances When installing two or more appliances next to each other a spacer bar b must be used between each one. See "Fixing the spring clamps and spacer bars". Worktop cut-out Worktop cut-out - two appliances - three appliances To calculate the cut-out width (D) required: Add up the widths of each appliance (e.g.
  • Page 44 Installation of several appliances a Spring clamps b Spacer bars c Gap between spacer bar and worktop d Sealing strip The illustration shows a worktop cut-out with spring clamps a and spacer bars b for 3 appliances. An additional spacer bar is required for each additional appliance. The position for securing each additional spacer bar will depend on the width of appliance B (288 mm / 380 mm / 576 mm).
  • Page 45: Fixing The Spring Clamps And Spacer Bars

    Fixing the spring clamps and spacer bars Wooden worktops ^ Position the spring clamps supplied a and spacer bars b on the top edge of the cut-out in the positions marked. ^ Secure the spring clamps and spacer bars with the 3.5 x 25 mm screws supplied.
  • Page 46 Fixing the spring clamps and spacer bars Granite and marble worktops The screws are not required for granite or marble worktops. ^ Apply silcone to the side edges and the lower edges of the spring clamps a and spacer bars b. ^ Then fill gap e between the spacer bars and the worktop with silicone ^ Position and secure the spring...
  • Page 47: Installing The Appliance(S)

    Installing the appliance(s) ^ Feed the connection cable down ^ Starting at the front, position the next through the cut-out. appliance in the worktop cut-out. ^ Starting at the front, position the ^ Connect each appliance to the mains appliance in the worktop cut-out. (see "Electrical connection").
  • Page 48: General Installation Tips

    General installation tips Tiled worktop Grout lines a and the hatched area Do not use any sealant unless underneath the appliance must be expressly instructed to do so. The smooth and even. If they are not, the sealing strip under the edge of the top appliance frame will not sit flush with part of the appliance provides a the worktop and the sealing strip will...
  • Page 49: Electrical Connection

    H 05 V V-F be provided for all poles. (pvc insulated), available from Miele. For extra safety it is advisable to protect the appliance with a suitable residual Installation, repairs and other work current device (RCD).
  • Page 50 Electrical connection Important The electrical safety of this appliance can only be guaranteed when continuity is complete between the appliance and an effective earthing system, which complies with local and national regulations. It is most important that this basic safety requirement is present and tested regularly and if there is any doubt the electrical wiring in the home should be inspected by a...
  • Page 51 Electrical connection Wiring diagram CS 1234 200-240 V~ 200 - 240 V~ 200 - 240 V~ (L3) 200 - 240 V~ 200 - 240 V~ (L2) 200 - 240 V~ N.B. This appliance is supplied single phase only in the U.K.
  • Page 52: After Sales Service, Data Plate

    Please note that telephone calls may be monitored and recorded to improve our service. When contacting Miele, please quote the model and serial number of your appliance which are given on the data plate. N.B. A call-out charge will be applied for service visits where the problem could have been resolved as described in these instructions.
