Installation Instructions

CS 1212 I, CS 1221 I
en - CA
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation instructions.

Advertisement

loading

  Summary of Contents for Miele CS 1212 I

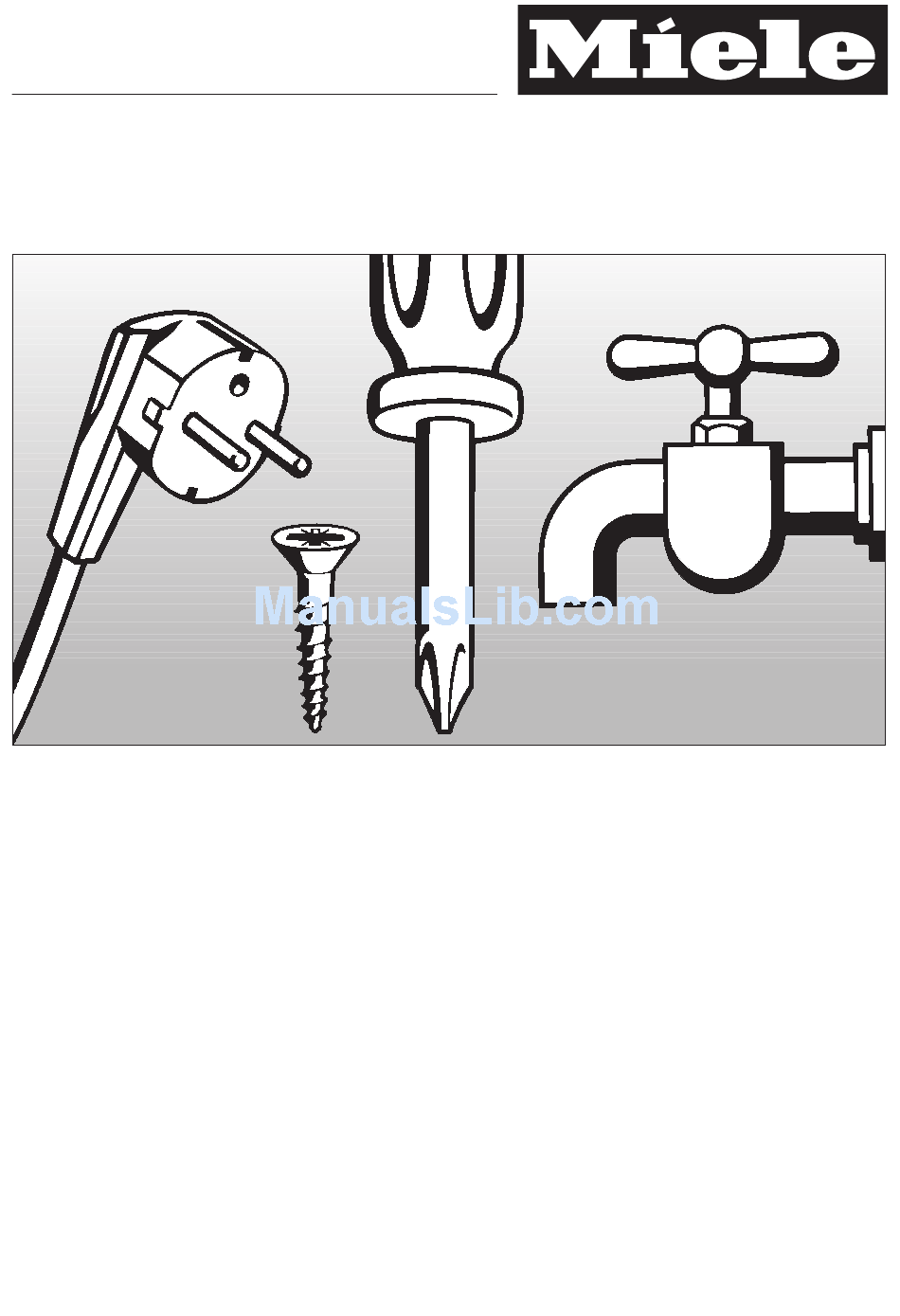

  • Page 1: Installation Instructions

    Installation Instructions CS 1212 I, CS 1221 I en - CA Installation, repair and maintenance work should be performed by a Miele authorized service technician in accordance with national and local safety regulations and the provided installation instructions.
  • Page 2: Safety Instructions For Installation

    The minimum distances given in installation in these applications. Please these Installation Instructions must contact the Miele Technical Service be observed in order to ensure safe Department with specific requirements. operation. Failure to do so increases You must ensure the power cord for the risk of fire.
  • Page 3 SAFETY INSTRUCTIONS FOR INSTALLATION Safety distances above the If there is more than one appliance appliance beneath a hood (e.g. wok burner and electric combiset), and they have different minimum safety distances always observe the greater distance. The minimum safety distance given by the hood manufacturer must be maintained between the combiset and the hood above it.
  • Page 4 SAFETY INSTRUCTIONS FOR INSTALLATION Safety distances to the sides of the appliance The appliance should only be installed as shown in the illustrations, while 2 " (50 mm) maintaining the required safety distances shown. Do not install the appliance between two tall cabinets, this is a fire hazard.
  • Page 5: Installation

    Installation Safety distance from the wall covering If a wall covering is installed, a minimum safety distance must be maintained between the countertop cut-out and the covering, since high temperatures can damage these materials. If the covering is made of a combustible material (such as wood), the distance between the countertop cut-out and the wall covering must be a minimum of 2"...
  • Page 6: Installation Dimensions

    Installation Installation dimensions CS 1212 a Spring clips b Appliance front c Installation height d Power supply cable (encased in flexible metal conduit), L = 78 " (2000 mm) e Data plate...
  • Page 7 Installation CS 1221 a Spring clips b Appliance front c Installation height d Power supply cable (encased in flexible metal conduit), L = 78 " (2000 mm) e Data plate...
  • Page 8 Installation Cut out If during installation the seal around ^ Make the worktop cut-out for one or the frame does not sit flush with the more appliances as applicable. countertop in the corners, the corner Remember to maintain a minimum radius, maximum "...
  • Page 9: Installation Of Multiple Appliances

    Installation Installation of multiple appliances When installing more than one combiset appliance, a support bar b must be installed between the appliances. Countertop cut-out Countertop cut-out two appliances three appliances For the installation of three appliances For the installation of two appliances the width of the countertop cut-out D is the width of the countertop cut-out D is the sum of A and C.
  • Page 10 Installation Sample calculations for a countertop cut-out for three appliances appliance width appliance width appliance width Countertop minus " (8 mm) minus " (8 mm) cut-out 11" " 11" " (280 mm) (280 mm) (848 mm) (288 mm) 11" 15" "...
  • Page 11 Installation a Spring clips b Support bars c Space between support bar and countertop d Sealing strip The illustration represents the attachment of spring clips a and support bars b for 3 appliances. An additional support bar is required for each additional appliance. The position for attachment of an additional support bar depends on the width of appliance B.
  • Page 12 Installation Attaching the spring clips and support bars Wood or solid surface countertops ^ Place the supplied spring clips a and the support bars b at the marked positions as shown above, by laying them on the upper edge of the cut-out and then securing them with the "...
  • Page 13 Installation Granite countertop The screws are not needed for granite countertops. ^ Coat the edges of the spring clips a, ^ and the space e between the support bars b and the countertop with silicone (supplied). ^ Position and attach the spring clips a and support bars b with strong, double-sided tape c.
  • Page 14 Installation ^ Place the front edge of the next Installing the appliance / appliance into the cut-out. appliances ^ Connect the appliance / appliances ^ Feed the power cord down through to the main power supply (see the cut-out. "Electrical connection"). ^ Place the front edge of the appliance ^ Turn the appliance / appliances on into the cut-out.
  • Page 15: Tiled Surfaces

    Installation Sealing Tiled surfaces The grouting a and shaded area under The appliance must not be permanently sealed into the countertop when the appliance frame must be flat and installed. The sealing strip under the even, so that the frame will lie evenly edge of the appliance provides a and the sealing strip under the edge of sufficient seal for the countertop.
  • Page 16: Electrical Connection

    Electrical connection Power supply CAUTION: Before installation or ^ Be sure your electrical supply servicing, disconnect the power matches the data plate. supply by either removing the fuse, shutting off the main power supply The combiset is equipped with a or manually "tripping"...
  • Page 17: Help Protect Our Environment

    Help protect our environment Disposal of packing materials Disposal of an old appliance The cardboard box and packing Old appliances contain materials that materials are biodegradable and can be recycled. Please contact your recyclable. Please recycle. local recycling authority about the possibility of recycling these materials.
  • Page 20 Alteration rights reserved / 4309 M.-Nr. 07 353 950 / 02 For the most updated manual see the Miele web site.

This manual is also suitable for:

Cs 1221 i
