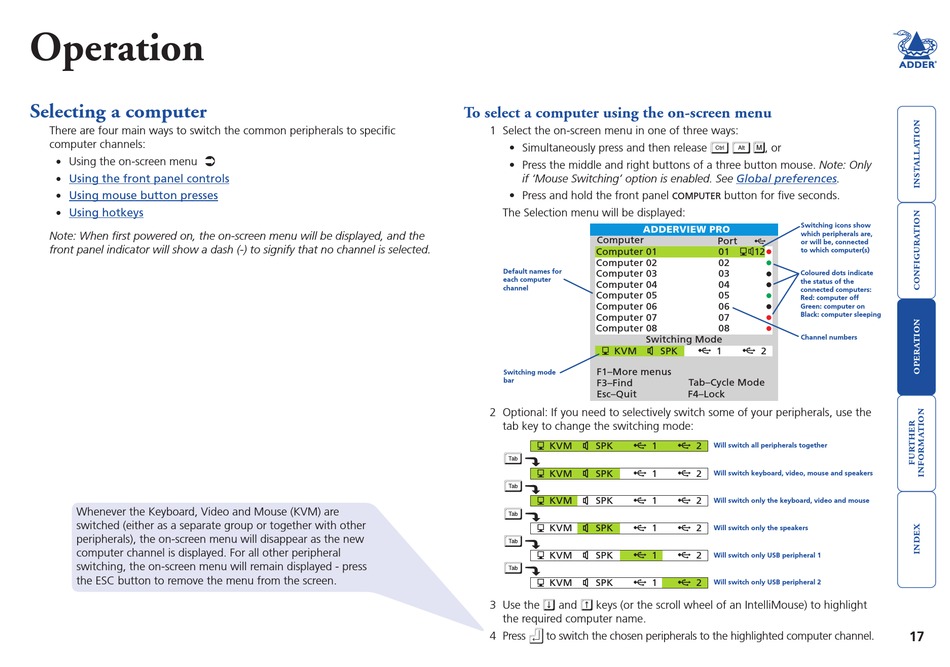

Operation

Selecting a computer

There are four main ways to switch the common peripherals to specific
computer channels:
• Using the on-screen menu 
•
Using the front panel controls
•
Using mouse button presses
•
Using hotkeys
Note: When first powered on, the on-screen menu will be displayed, and the
front panel indicator will show a dash (-) to signify that no channel is selected.
Whenever the Keyboard, Video and Mouse (KVM) are
switched (either as a separate group or together with other
peripherals), the on-screen menu will disappear as the new
computer channel is displayed. For all other peripheral
switching, the on-screen menu will remain displayed - press
the ESC button to remove the menu from the screen.

To select a computer using the on-screen menu

1 Select the on-screen menu in one of three ways:
• Simultaneously press and then release
• Press the middle and right buttons of a three button mouse. Note: Only
if 'Mouse Switching' option is enabled. See
• Press and hold the front panel
The Selection menu will be displayed:
Computer
Computer 01
Computer 02
Default names for Computer 03
each computer
Computer 04
channel
Computer 05
Computer 06
Computer 07
Computer 08
KVM
F1–More menus
Switching mode
bar
F3–Find
Esc–Quit
2 Optional: If you need to selectively switch some of your peripherals, use the
tab key to change the switching mode:
KVM SPK
KVM SPK
KVM SPK
KVM SPK
KVM SPK
KVM SPK
3 Use the and keys (or the scroll wheel of an IntelliMouse) to highlight
the required computer name.
4 Press to switch the chosen peripherals to the highlighted computer channel.
, or
Global preferences.
button for five seconds.
COMPUTER
Switching icons show
ADDERVIEW PRO
which peripherals are,
Port
or will be, connected
01 1 2
to which computer(s)
02
03
Coloured dots indicate
the status of the
04
connected computers:
05
Red: computer off
06
Green: computer on
Black: computer sleeping
07
08
Switching Mode Channel numbers
SPK 1 2
Tab–Cycle Mode
F4–Lock
1 2
Will switch all peripherals together
1 2
Will switch keyboard, video, mouse and speakers
1 2
Will switch only the keyboard, video and mouse
1 2
Will switch only the speakers
1 2
Will switch only USB peripheral
1 2
Will switch only USB peripheral
