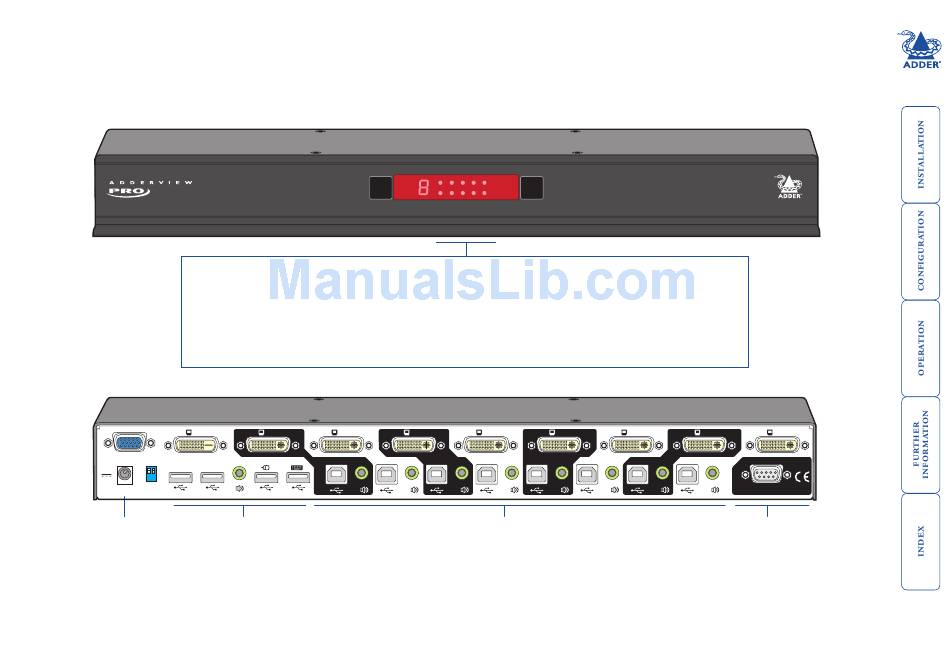

AV8PRO-DVI features - front and rear

The unit packs a great deal of functionality into a compact space. It occupies a
single 1U rack space and provides connectors at the rear face. The smart front
face features the control buttons and the operation indicators.
COMPUTER button Indicators
Press to change to
Six of the ten indicators show basic input or mode status:
the next computer
• KB
channel.
• MS
• OSD Indicates that the on-screen display is currently active.
• UPG Indicates that the unit is currently in upgrade mode.
• LCK Indicates that the unit is locked. Enter the password.
• PWR Power input indicator.
DVI-D
VGA
USER CONSOLE
USB 1 USB 2
5V
1 2
ON
4A
INDOOR USE ONLY
Power input User console
The power supply
Connect DVI-D and/or VGA video leads, USB
connects here.
keyboard and mouse, (up to) two other USB devices
plus optional speakers to these connectors.
COMPUTER
Keyboard data are being received from the user console.
Mouse data are being received from the user console.
DVI-I DVI-I
8
KVM SPK USB1 USB2 PWR MODE
KB MS OSD UPG LCK
The remaining four indicators (KVM, SPK, USB, USB) show which
peripherals are switched to the current computer channel OR (as you
begin pressing the MODE button) the peripherals that will be switched
during the next press(es) of the COMPUTER button.
The seven segment numeric display indicates the computer channel that
is currently active.
DVI-I DVI-I DVI-I
7 6 5 4
Computer channels
Each computer connects to one of these eight
channels via a DVI-I video connector, a USB
B-type connector and an audio 3.5mm jack
input.
www.adder.com
MODE button
Press to determine
which peripherals
should be switched
to another computer
channel (will occur
when the COMPUTER
button is pressed.
DVI-I DVI-I DVI-I
3 2 1
OPTIONS
Options port
This RS232 serial port can separately
support the following functions:
• Synchronisation - allows the actions of
two or more AdderView PRO switches
to be synchronised so that multiple
computers/video screens can be
switched and accessed.
• Upgrades - used to update the
internal firmware when necessary by
connecting to a computer.
