Enclosure System Interface/Operators Panel Module - Intergraph Fibre Channel User Manual

SS-1200-FCAL User Guide
1.3.2

Enclosure System Interface/Operators Panel Module

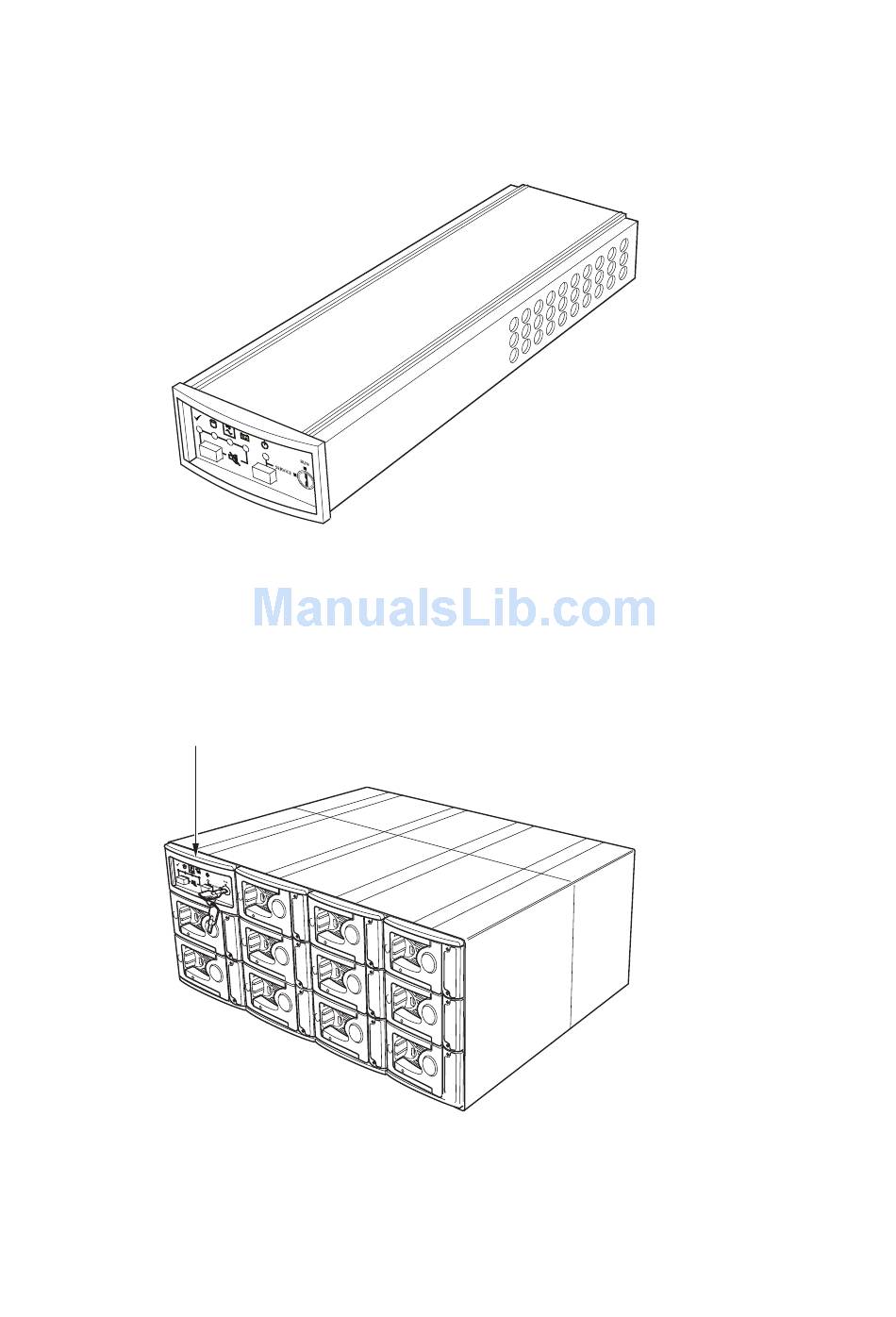

Supplied as part of the Enclosure core product, a typical Enclosure System Interface/Operators (ESI/Ops) panel
module is shown in
Figure 1–5
The(ESI/Ops) Panel provides the enclosure with a micro controller which is used to monitor and control all elements
of the Enclosure. Each element (Power, Cooling, Temperature, Device status) is interfaced to the processor using
an I
The ESI/Ops Panel is available as a plug-in module suitable for fitting in the enclosure either front facing
1–6) or rear facing
Figure 1–6
4
Figure 1–5.
ESI/Ops Panel Module
2
C (I Square C) Bus.
(Figure 1–7).
ESI/Ops Panel
ESI/Ops Panel (Front mounting)
(Figure
