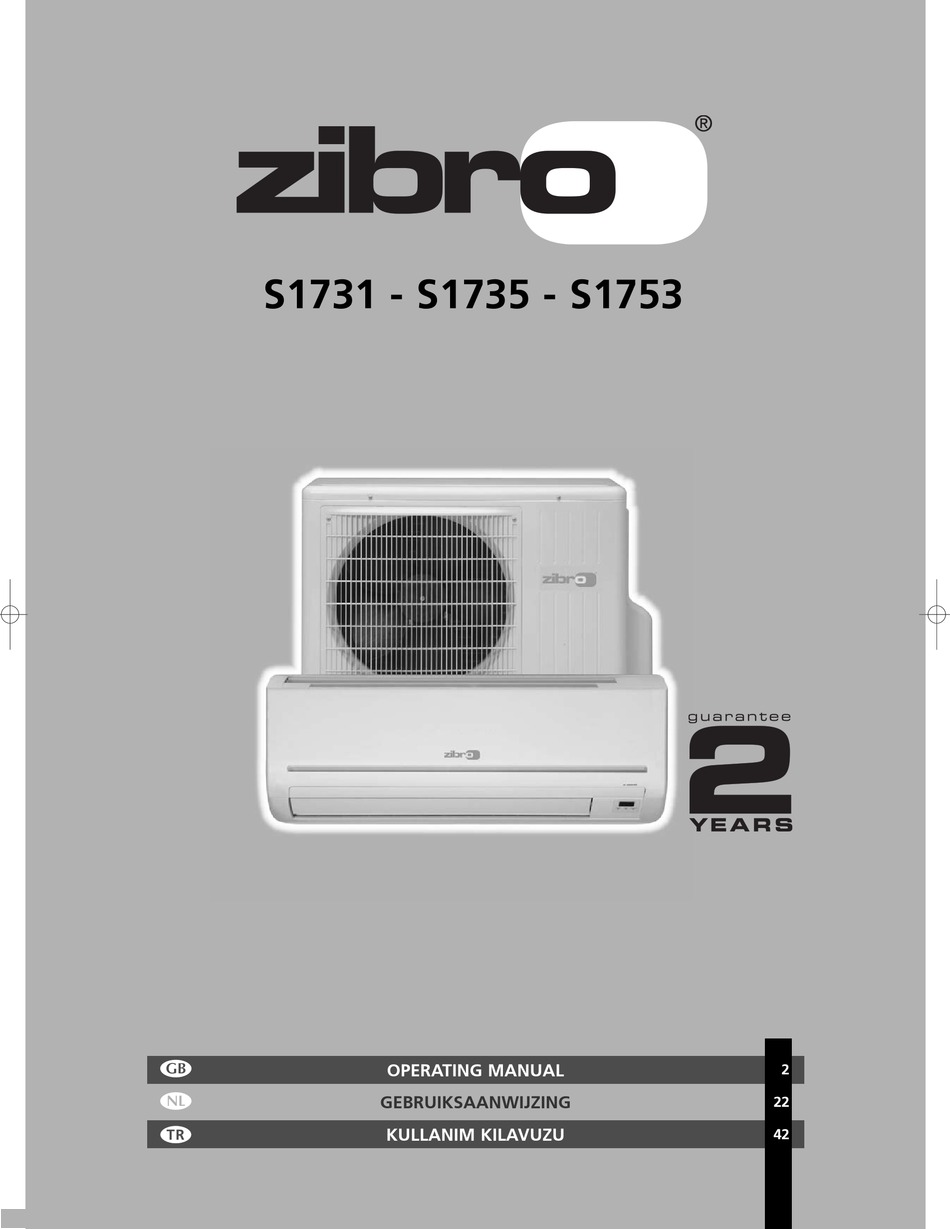

- Page 1 S1731 - S1735 - S1753 OPERATING MANUAL GEBRUIKSAANWIJZING KULLANIM KILAVUZU...
- Page 2 Dear Sir, Madam, Congratulations on the purchase of your Zibro airconditioner. You have acquired a high quality product that, if used responsibly, will give you many years of pleasure. Please read these instructions for use first in order to ensure the maximum life span of your airconditioner.
-
Page 3: Table Of Contents
CONTENTS Safety instructions Parts and functions Before operation Instructions for use Air filter Cleaning Trouble shooting Guarantee conditions Technical data... -
Page 4: Safety Instructions
• Have any repairs and/or maintenance only carried out by a recognised service engineer or your recognised Zibro supplier. Follow the instructions for use and maintenance as indicated in the user manual of this device. • Always remove the plug of the unit from the wall socket when it is not in use. -
Page 5: Bparts And Functions
Do not install in the following places: • Heat or steam is generated in the vicinity. • Under influence by the atmosphere containing in excess salt (in coastal area), sulphide gas (in spa), ammonia, steam of high temperature and vapor. •... - Page 6 Operating panel EMERGENCY OPERATION (manual) SWITCH. To operate the unit if the remote control is not operatio- nal. POWER INDICATOR. Lights up when this function is activated. TIMER. Time indicator lights up during preset time. OPERATE. Operating indicator lights up when the unit is in operation. Auto recovery function lf there is any power failure during operation, operation status before power failure is memorized.
-
Page 7: Remote Control
Remote Control S1731 - S1735 VERTICAL LOUVER TRANSMITTER BUTTON (S1753) Sends signals to the receiver of the indoor unit. Air flow direction can be changed vertically with swing movement (right and left) by FAN SPEED each press. INDICATION IONIZER BUTTON... -
Page 8: Cbefore Operation
Anti-Germ: Preventing E-coli, MRSA, and other bacteria from proliferating. COMMENT • Never use the airconditioner without the air filter. • Only use suitable Zibro filters. This will prevent damage to your airconditioner. • Suitable filter packages are available at your dealer. -
Page 9: Instructions For Use
Open the front panel by pulling upward Attach the 3 in 1 filter behind the stopper so that the “FRONT” indication is showing outward. Make sure that the filters are completely behind the stop- 3 in 1 pers. If the filters are not attached correctly, it may cause defects. filter Close the front panel by pushing downward. - Page 10 Press the ON/OFF button Set the operation mode, circulating , by pressing the operation mode but- ton. Adjust the setting temperature by pressing the temperature setting buttons. Circulating Operation begins after the room temperature reaches the tem- perature set by the remote controller. Adjust the fan speed by pressing the fan speed button.
-
Page 11: Automatic Operation
NOTE! • If the unit operates in cooling or dry for a long time in high humidity (i.e., windows and doors are opened), dew and water drops may form on the indoor unit. Be aware that falling drops of water can damage your floor (e.g. carpet or parquet). •... - Page 12 Negative ion operation (only on S1731 and S1735) This function is available only when the air conditioner is operating. Press the ON/OFF button Press the ionizer button To stop negative ion operation, press the ionizer button. Air flow adjustment Horizontal adjustment (all models) When the ON/OFF button is pressed, the horizontal louver will move automatically.
-
Page 13: Timer Operation
Swing of air flow (horizontallay) If the louver button is pressed once, the horizontal louver will move within the range of the figure above. Fixing the air flow Direction If the louver button switch is pressed again, the horizontal louver will be fixed and that position is memo- rized. - Page 14 “ON Timer” Example: set the “ON Timer” to 7 a.m. Operation starts at the set time. Programming the “ON Time” Press the “TIME ADJ” 2 times. Adjust the time with the button. The time setting changes in 10-minu- te intervals. Hold the button to fast forward the time. Press the “TIME ADJ”...
- Page 15 Cancelling “OFF Timer” Press the timer fixing button “OFF”. The timer lamp of the indoor unit goes off. “SLEEP Timer” Pressing this button starts the timer mode that will stop the operation after the setting time. Press the “SLEEP” button during the operation. The setting time repeats the following mode by pressing the button: Continuous operation (Sleep Operation: OFF).
-
Page 16: Eair Filter
NOTE Emergency operation at the temperature between above 23°C and below 26°C just switch the machine in operation in “cooling mode” without actually “cooling”. It is not possible to operate in “Dry” mode. Test operation • Same switch as used in Emergency operation. •... -
Page 17: Cleaning The Filter
Close the front panel. NOTE Never use the air conditioner without the 3 in 1 filter. Maintenance of the negative ion generator (twice a year) (only S1731 - S1735) Switch the machine off and remove the plug from the socket. WARNING! Make sure that the air conditioner is not operating. -
Page 18: Trouble Shooting
TROUBLE SHOOTING CAUTION! In the event of a malfunction (burning smell, etc.) immediately stop operation, disconnect the Power Supply plug and consult sales shop. Before requesting service, perform the following checks: The following problems do not always indicate a fault. Please check them before contacting the service department: Problem Cause / Solution... -
Page 19: Guarantee Conditions
Damage caused by not using suitable Zibro filters is not covered by the guarantee. Refrigerant loss and/or leakage because of incompetent (dis)connecting the units is not covered by the guarantee conditions applicable to this product. -
Page 20: Technical Data
TECHNICAL DATA Model S1731 S1735 S1753 Type airconditioner DC inverter Wandmodel Koelcapaciteit, nom (min-max) * 2640 (1290-3100) 3315 (1400-3500) 5200 (1500-5300) Koelcapaciteit, nom (min-max) * BTU/u 9000 (4400-10600) 11300 (4800-11900) 17700 (5100-18000) EE Klasse* EER* 3,62 3,76 2,81 Verwarmingscapaciteit, nom (min-max) *... - Page 21 Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Environmental information: This equipment contains fluorinated greenhouse gases covered by the Kyoto Protocol. It should only be serviced or dismantled by professional trained personnel. This equipment contains R410A refrigerant in the amount as stated in the table above.
- Page 22 Cranage, Middlewich, CW10 9LT UK tel: +43 7434 44867 tel.: +44 1606 837787 fax: +43 7434 44868 fax: +44 1606 837757 email: pvgaustria@zibro.com email: sales@scottmail.co.uk > ITALIA e BELGIË PVG Italy SRL PVG Belgium NV/SA Via Niccolò Copernico 5 Industrielaan 55 50051 CASTELFIORENTINO (FI)
