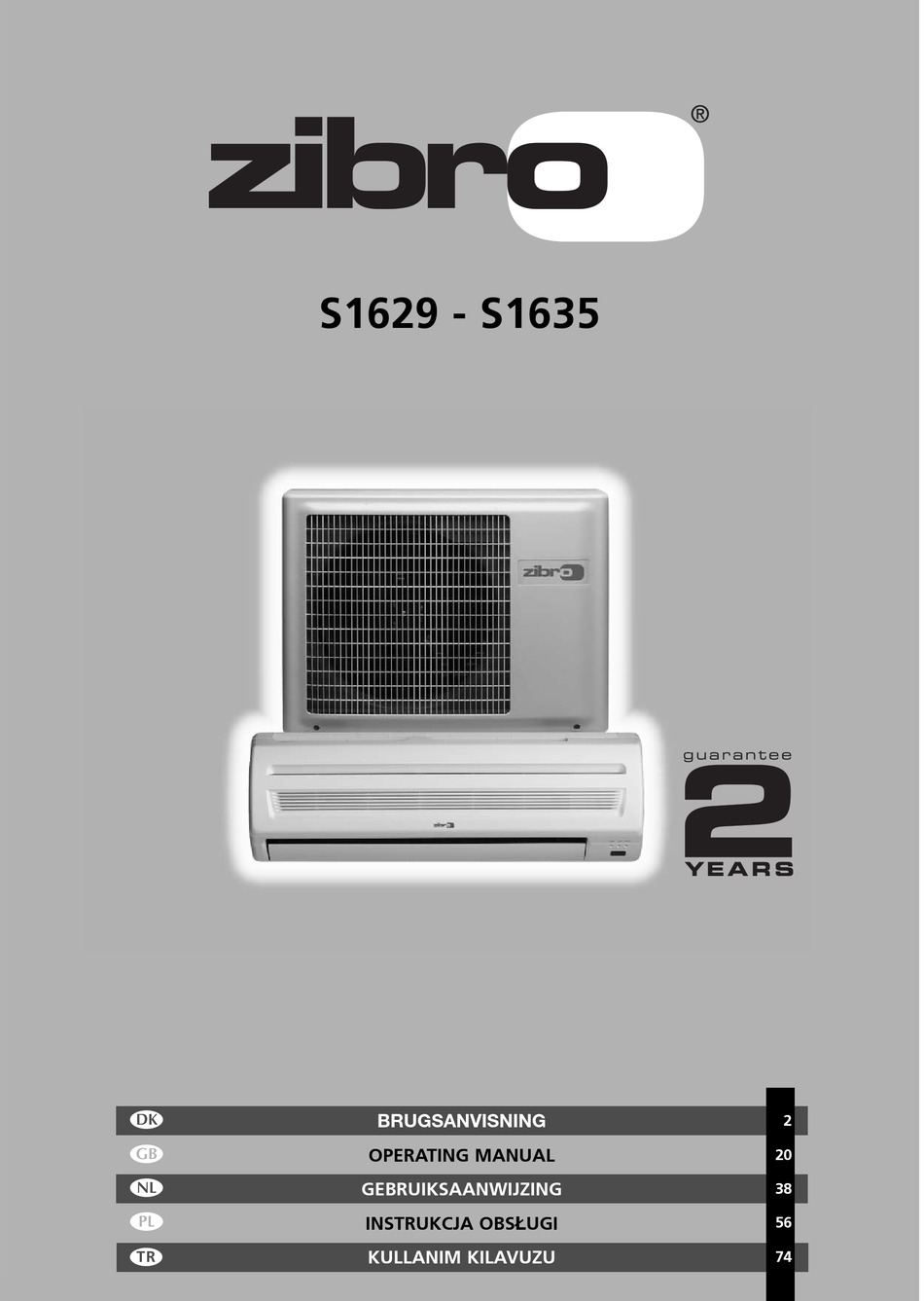

- Page 1 S1629 - S1635 BRUGSANVISNING OPERATING MANUAL GEBRUIKSAANWIJZING INSTRUKCJA OBSŁUGI KULLANIM KILAVUZU...
- Page 2 Dear Sir, Madam, Congratulations on the purchase of your airconditioner. You have acquired a high quality product that, if used responsibly, will give you many years of pleasure. Please read these instructions for use first in order to ensure the maximum life span of your airconditioner. On behalf of the manufacturer, we provide a 24-month guarantee on all material and production defects.
-
Page 3: Table Of Contents
CONTENTS Safety instructions Parts and functions Before operation Instructions for use Air filter Cleaning Trouble shooting Guarantee conditions Technical data... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Install the device only when it complies with local regulations, by-laws and standards. The unit is only sui- table for use in dry locations, indoors. Check the mains voltage and frequency. This unit is only suitable for earthed sockets, connection voltage 220 - 240 V. / 50 Hz. IMPORTANT The device MUST always have an earthed connection. -
Page 5: Bparts And Functions
PARTS AND FUNCTIONS Outdoor unit Pipe and connecting cable Air inlet Drain hose Air outlet * Warm air comes out when cooling, Earthing terminal cool air comes out when heating. Indoor unit Inlet grill Active carbon filter Screen filter Outlet ** Enzyme filter ** The air flow direction can be OUTDOOR UNIT... -
Page 6: Remote Control
ATTENTION! • Because of Auto Recovery Function, if shutting off the power supply during operation, the unit may restart irrespective your intention when turning on the power supply again. • If the unit is not to be used for a long time, shut off the power supply after terminating all operation with remote controller. -
Page 7: Cbefore Operation
BEFORE OPERATION 1. Inserting batteries in remote control Placing the batteries Remove the battery cover in the direction of the arrow. Place the new batteries as indicated (ensure that the positive (+) and negative poles (-) are in the correct positions. Slide the battery cover back into place. NOTE Use 2 AAA (1.5 Volt) batteries. -
Page 8: Instructions For Use
INSTRUCTIONS FOR USE Present time setting Example: Set to 3:50 p.m. Press the “TIME ADJ” button once Adjust the time with “+”, “-“ buttons. Holding a button changes time set- ting in 10-minute intervals. Press the “TIME ADJ” button 3 times. The present time appears on the dis- play. -
Page 9: Automatic Operation
Cooling/dry operation Press the ON/OFF button Set the operation mode to Cooling , Heating or Dry , by pressing the operation mode button Adjust the setting temperature by pressing the temperature setting buttons. Adjust the fan speed by pressing the fan speed button. When the mode is set at “AUTO”... - Page 10 Press the ON/OFF button Set the operation mode to Automatic “AUTO“, by pressing the operation mode button Adjust the setting temperature by pressing the temperature setting buttons. Adjust the fan speed by pressing the fan speed button. When the mode is set at “AUTO”...
-
Page 11: Air Flow Adjustment
Air flow adjustment Horizontal adjustment When the ON/OFF button is pressed, the horizontal louver will move automatically. During cooling, During circulation, dry operation heating operation Level Level Approx. 10° Approx. 60° Level Level Approx. 10° Approx. 10° Approx. 45° Approx. 60° Swing of air flow If the louver button is pressed once, the horizontal louver will move within the range of the figure above. -
Page 12: Timer Operation
Timer operation Before setting the timer, confirm that the present time is set accurately. Once you set the timer, the remote controller memorizes the setting. From the next time, you can operate the same timer mode just by pres- sing the ON/OFF button and the Timer fixing (“ON/OFF Timer”) button. You can use the combined function of the “ON Timer”... - Page 13 “OFF Timer” Example: Set the “Off Timer” to 10 p.m. Operation starts at the set time. Programming the “OFF Time” Press the “TIME ADJ” 3 times. Adjust the time with the button. The time setting changes in 10-minu- te intervals. Hold the button to fast forward the time. Press the “TIME ADJ”...
- Page 14 Sleep Timer features During Cooling Operation The setting temperature rises 0.6°C after 30 minutes of Sleep Timer ON, and rises 0.6°C again after 30 minutes of the first temperature rise. During Heating Operation The setting temperature drops 0.6°C after 30 minutes of Sleep Timer ON, and drops 0.6°C again after 30 minutes of the first temperature drop.
-
Page 15: Eair Filter
AIR FILTER This air conditioner is equipped with a 3 layer filter to clean the circulated room air. Screen filter; to remove bigger dust particles. Enzyme filter; neutralizes airborne micro organisms. Active carbon filter; to remove odours. NOTE The active carbon filter and the Enzyme filter are delivered in a plastic packaging. Remove plastic bags and install filters (refer chapter B). - Page 16 Cleaning the screen filter The screen filter must be cleaned regularly (approximately. every 2 weeks) Follow this procedure: Switch the machine off completely. - Open the front panel (a). - Carefully pull the filter handle towards you. - Grip the handle and slide the filters out. Cleaning the screen filter.
-
Page 17: Trouble Shooting
TROUBLE SHOOTING The following problems do not always indicate a fault. Please check them before contacting the service department: Problem Cause / Solution The plug is not inserted firmly in the socket. The unit does not operate. The batteries in the remote control are empty. The safety feature has been activated or the fuse has burnt out. -
Page 18: Guarantee Conditions
GUARANTEE CONDITIONS The air conditioner is supplied with a 24-month guarantee, commencing on the date of purchase. All mate- rial and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply: We expressly refuse all further damage claims, including claims for collateral damage. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee. -
Page 19: Technical Data
TECHNICAL DATA Model S1629 S1635 Type air-conditioner DC inverter wall mounted DC inverter wall mounted Cooling capacity (max) * EE Class* EER* Heating capacity (max)* Heating performance* COP* Dehumidifying capacity ** L / 24h Power consumption cooling 0.82 Power consumption heating 0.89... - Page 20 Holloway Bank, Wednesbury tel: +43 7434 44867 West Midlands WS10 OAW fax: +43 7434 44868 tel.: +44 121 506 1818 email: pvgaustria@zibro.com fax: +44 121 505 1744 email: gases@lister.co.uk e BELGIË PVG Belgium NV/SA > ITALIA Industrielaan 55 PVG Italy SRL 2900 SCHOTEN Via Niccolò...
