ACV ETS 09 Specification

Electric Boilers
ETS

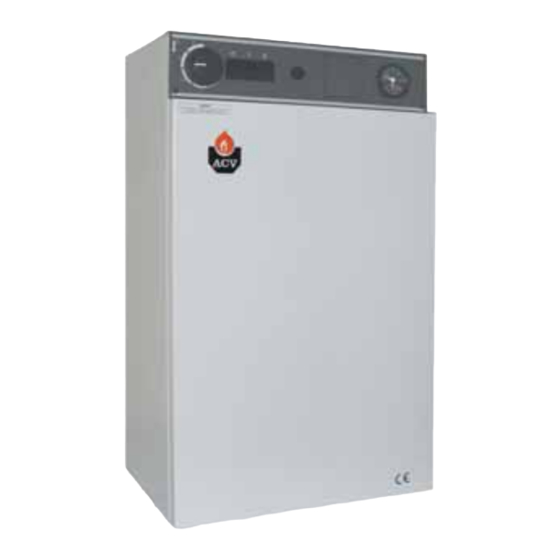

Product Description

• Wall hung electric system boiler
• Choice of three sizes and single or tri-phase
- ETS 09 and ETS 15 in single or tri-phase
- ETS 24 tri-phase only
• Up to 14.4 kW output in single phase, up to
28.8kW tri-phase
• Compatible with Honeywell S-plan and Y-plan
wiring systems
• Built-in control circuit protected by internal 3 amp MCB
• Removable stainless steel immersion elements
• Quiet operation
• Very low maintenance
• Stove enamelled casing
• Control panel including thermostats, combined
temperature and pressure gauge and on/off switch
• Wall mounting bracket included
• Simple connection to heating systems
33
• Can also be used in multiple boiler installations
1
11
10
9
8

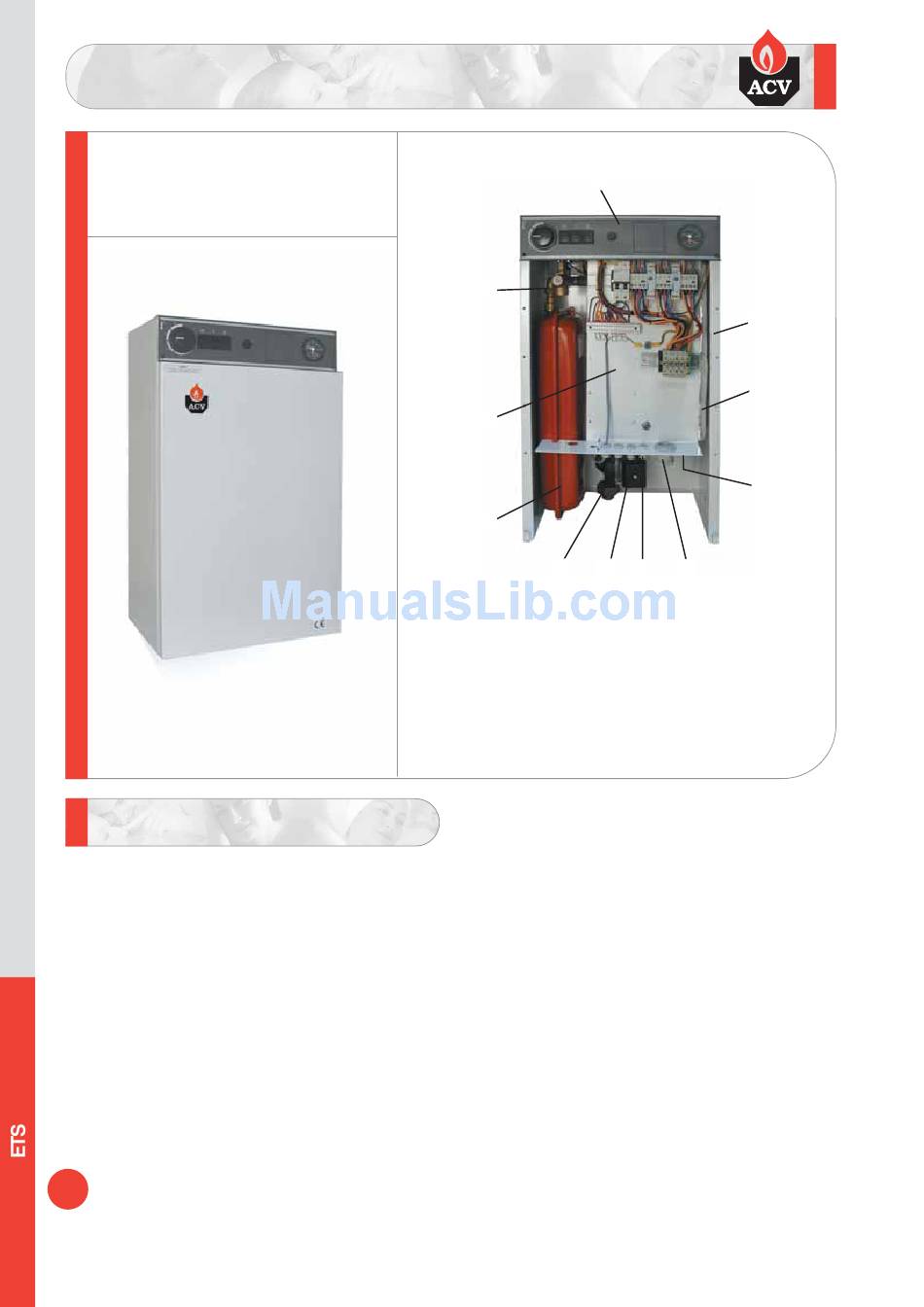

1. Control panel
2. Stove enamelled metal
casing
3. Steel boiler shell
4. Primary water return
connection
5. Power cable entry position
Plug and Play Installation
The boiler includes all the necessary components to allow
direct connection to a heating system without the need for
a feed and expansion cistern, including:
• Primary 8 litre expansion vessel
(suitable for a system water content of up to 128 litres)
• Pressure and temperature gauge
• Safety valve
• Circulating pump
• Low water pressure switch
• Control and high limit thermostats
• On/off and power level switches
2
3
4
7
6 5
6. Control circuit cable
entry point
7. Circulating pump
8. Primary water flow
connection
9. Primary expansion vessel
10. Wiring plate
11. Primary safety valve
