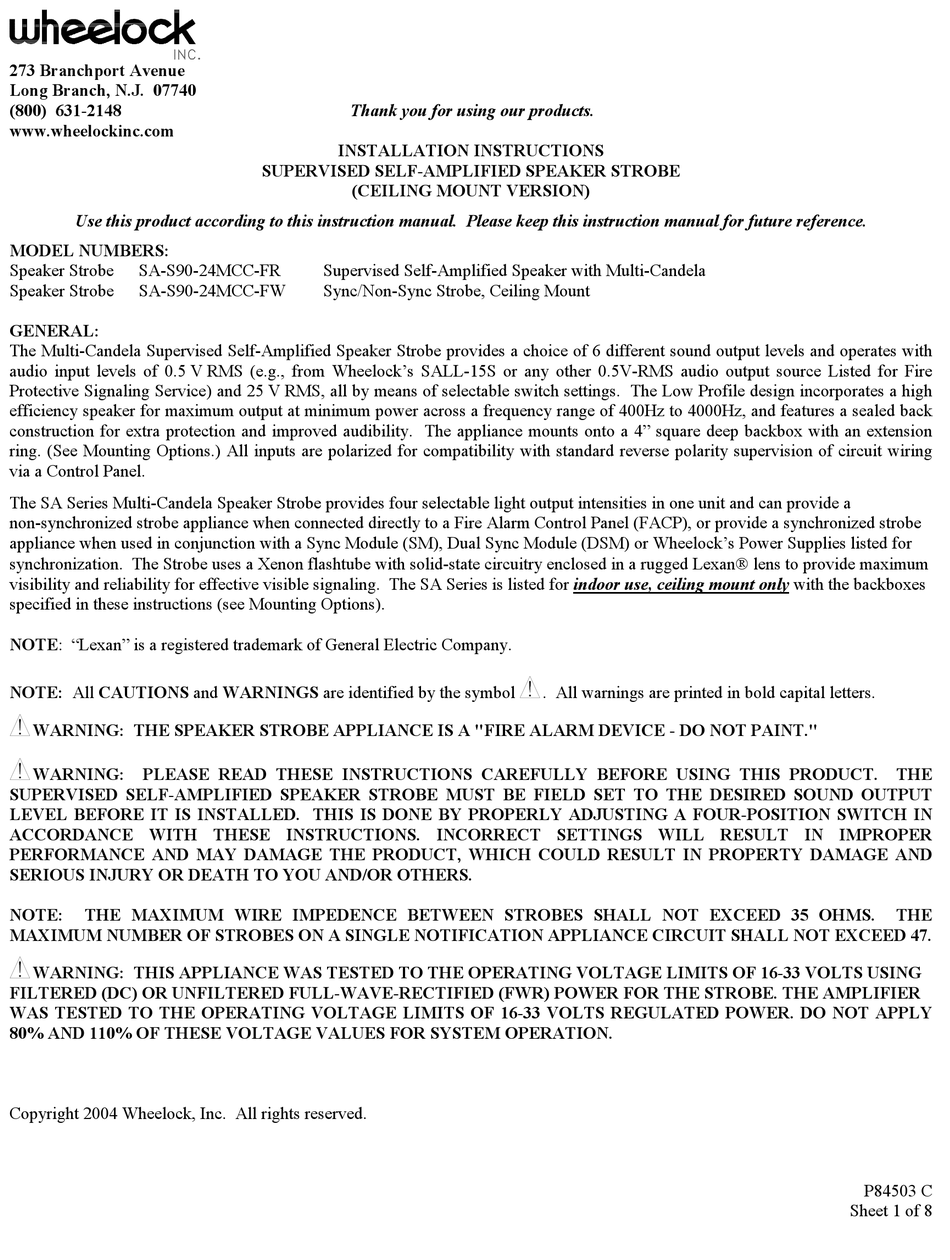

Wheelock SA-S90-24MCC-FR Installation Instructions Manual

273 Branchport Avenue
Long Branch, N.J. 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
MODEL NUMBERS:
Speaker Strobe SA-S90-24MCC-FR
Speaker Strobe SA-S90-24MCC-FW
GENERAL:
The Multi-Candela Supervised Self-Amplified Speaker Strobe provides a choice of 6 different sound output levels and operates with
audio input levels of 0.5 V RMS (e.g., from Wheelock's SALL-15S or any other 0.5V-RMS audio output source Listed for Fire
Protective Signaling Service) and 25 V RMS, all by means of selectable switch settings. The Low Profile design incorporates a high
efficiency speaker for maximum output at minimum power across a frequency range of 400Hz to 4000Hz, and features a sealed back
construction for extra protection and improved audibility. The appliance mounts onto a 4" square deep backbox with an extension
ring. (See Mounting Options.) All inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring
via a Control Panel.
The SA Series Multi-Candela Speaker Strobe provides four selectable light output intensities in one unit and can provide a
non-synchronized strobe appliance when connected directly to a Fire Alarm Control Panel (FACP), or provide a synchronized strobe
appliance when used in conjunction with a Sync Module (SM), Dual Sync Module (DSM) or Wheelock's Power Supplies listed for
synchronization. The Strobe uses a Xenon flashtube with solid-state circuitry enclosed in a rugged Lexan lens to provide maximum
visibility and reliability for effective visible signaling. The SA Series is listed for indoor use, ceiling mount only with the backboxes
specified in these instructions (see Mounting Options).
NOTE: "Lexan" is a registered trademark of General Electric Company.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING: THE SPEAKER STROBE APPLIANCE IS A "FIRE ALARM DEVICE - DO NOT PAINT."
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. THE
SUPERVISED SELF-AMPLIFIED SPEAKER STROBE MUST BE FIELD SET TO THE DESIRED SOUND OUTPUT
LEVEL BEFORE IT IS INSTALLED. THIS IS DONE BY PROPERLY ADJUSTING A FOUR-POSITION SWITCH IN
ACCORDANCE WITH THESE INSTRUCTIONS. INCORRECT SETTINGS WILL RESULT IN IMPROPER
PERFORMANCE AND MAY DAMAGE THE PRODUCT, WHICH COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
NOTE: THE MAXIMUM WIRE IMPEDENCE BETWEEN STROBES SHALL NOT EXCEED 35 OHMS.
MAXIMUM NUMBER OF STROBES ON A SINGLE NOTIFICATION APPLIANCE CIRCUIT SHALL NOT EXCEED 47.
WARNING: THIS APPLIANCE WAS TESTED TO THE OPERATING VOLTAGE LIMITS OF 16-33 VOLTS USING
FILTERED (DC) OR UNFILTERED FULL-WAVE-RECTIFIED (FWR) POWER FOR THE STROBE. THE AMPLIFIER
WAS TESTED TO THE OPERATING VOLTAGE LIMITS OF 16-33 VOLTS REGULATED POWER. DO NOT APPLY
80% AND 110% OF THESE VOLTAGE VALUES FOR SYSTEM OPERATION.
Copyright 2004 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SUPERVISED SELF-AMPLIFIED SPEAKER STROBE
(CEILING MOUNT VERSION)
Supervised Self-Amplified Speaker with Multi-Candela
Sync/Non-Sync Strobe, Ceiling Mount
. All warnings are printed in bold capital letters.
THE
P84503 C
Sheet 1 of 8
