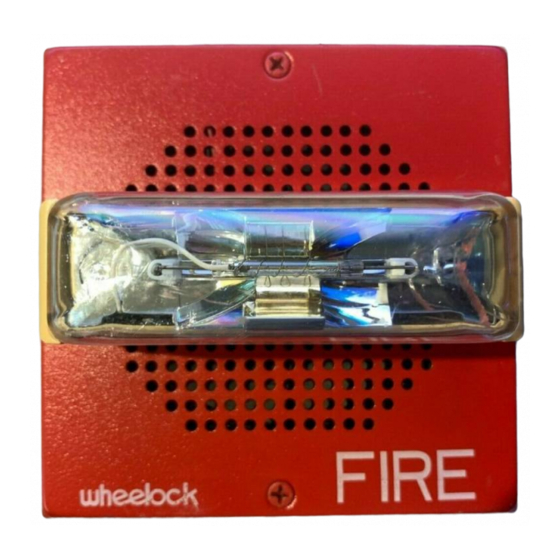

Wheelock E70-2415W Installation Instructions Manual

273 Branchport Avenue
Long Branch, N.J. 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
Wheelock's Series E70/90 Low Profile Speakers and Speaker Strobes are UL Listed under Standard 1971 for Signaling Devices for the
Hearing Impaired and UL Standard 1480 for Speaker Appliances. They are designed for multiple power requirements with high dBA
output at each power tap. All models offer a choice of field selectable taps, 1/8W to 2W, for either 25.0VRMS or 70.0VRMS audio
systems. The Low Profile design incorporates a high efficiency speaker for maximum output at minimum power across a frequency
range of 400Hz to 4000Hz, and features a sealed back construction for extra protection and improved audibility. The Series E70/90
appliances also incorporate a Speaker Mounting Plate attached to the speaker for ease of installation. The Low Profile Speaker Strobes
can provide a non-synchronized strobe appliance when connected directly to a Fire Alarm Control Panel (FACP), or provide a
synchronized strobe appliance when used in conjunction with a Sync Module (SM), Dual Sync Module (DSM), or Power Supply (PS-
12/24-8). The Strobes use a Xenon flashtube with solid state circuitry enclosed in a rugged Lexan® lens to provide maximum visibility
and reliability for effective visible signaling. The 241575W candela wall mounted strobes are listed at 15 candela under UL Standard
1971 and meet 75 candela intensity on axis with low current draw. The E70 Speaker Strobes for wall mounting only are available with a
choice of five UL Listed strobe options: 2415W, 241575W, 2430W, 2475W and 24110W. The E90 Speaker Strobes for ceiling mounting
only are available with a choice of four UL Listed strobe options: 2415C, 2430C, 2475C, and 24100C. All models are Listed for indoor
use only with the backboxes specified in these instructions (see Mounting Options).
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING: READ THESE INSTRUCTIONS CAREFULLY.
INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR
OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SPECIFICATIONS:
Models
E70
E70-2415W
E70-241575W
E70-2430W
E70-2475W
E70-24110W
E70-24100C
E90
E90-2415C
E90-2430C
E90-2475C
E90-24100C
1. Strobes will produce 1 flash per second over the "Regulated Voltage" range. 2. All models are UL Listed for indoor use
NOTES:
with a temperature range of +32 ° F to +120 ° F (0 ° C to +49 ° C) and maximum humidity of 85% RH. 3. dBA is rated per UL Standard 1480
for Speaker Appliances.
NOTE: THE MAXIMUM WIRE IMPEDENCE BETWEEN STROBES SHALL NOT EXCEED 35 OHMS. THE MAXIMUM NUMBER OF
STROBES ON A SINGLE NOTIFICATION APPLIANCE CIRCUIT SHALL NOT EXCEED 47.
www.PDF-Zoo.com
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SERIES E70/90 LOW PROFILE SPEAKERS AND SPEAKER STROBES
Table 1: UL Listed Models and Ratings
Speaker
dBA at 10 Feet
Voltage (Rated Watts)
(VRMS) 1/8 1/4
25/70 75 78
25/70 75 78
25/70 75 78
25/70 75 78
25/70 75 78
25/70 75 78
25/70 75 78
25/70 75 78
25/70 75 78
25/70 75 78
25/70 75 78
25/70 75 78
* 241575W models are UL Listed at 15cd and meet 75cd on axis.
. All warnings are printed in bold capital letters.
FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
Regulated Voltage
(VDC/VRMS)
1/2 1 2 Min Nom
81 84 87 ---- ----
81 84 87 16 24
81 84 87 16 24
81 84 87 16 24
81 84 87 16 24
81 84 87 16 24
81 84 87 16 24
81 84 87 ---- ----
81 84 87 16 24
81 84 87 16 24
81 84 87 16 24
81 84 87 16 24
Strobe
Mounting
Candela Options
Max
---- ---- A,C
33 15 B,D
33 15* B,D
33 30 B,D
33 75 B,D
33 110 B,D
33 100
---- ----
33 15
33 30
33 75
33 100
B
A
B
B
B
B
P83566 G
Sheet 1 of 10
