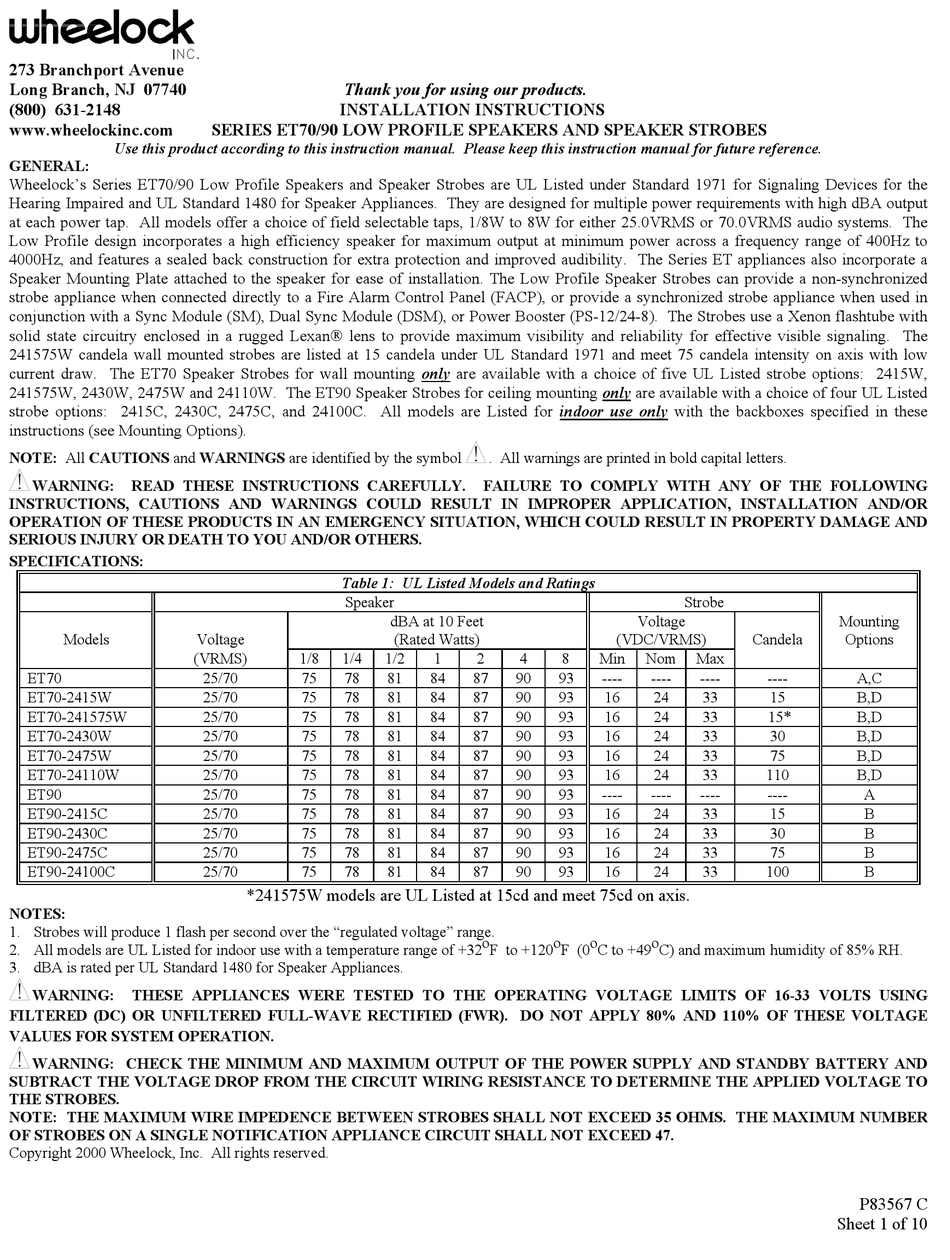

Wheelock ET70 Installation Instructions Manual

Series et70/90 low profile speakers and speaker strobes
Hide thumbs Also See for ET70:

Advertisement

Quick Links

273 Branchport Avenue
Long Branch, NJ 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
Wheelock's Series ET70/90 Low Profile Speakers and Speaker Strobes are UL Listed under Standard 1971 for Signaling Devices for the
Hearing Impaired and UL Standard 1480 for Speaker Appliances. They are designed for multiple power requirements with high dBA output
at each power tap. All models offer a choice of field selectable taps, 1/8W to 8W for either 25.0VRMS or 70.0VRMS audio systems. The
Low Profile design incorporates a high efficiency speaker for maximum output at minimum power across a frequency range of 400Hz to
4000Hz, and features a sealed back construction for extra protection and improved audibility. The Series ET appliances also incorporate a
Speaker Mounting Plate attached to the speaker for ease of installation. The Low Profile Speaker Strobes can provide a non-synchronized
strobe appliance when connected directly to a Fire Alarm Control Panel (FACP), or provide a synchronized strobe appliance when used in
conjunction with a Sync Module (SM), Dual Sync Module (DSM), or Power Booster (PS-12/24-8). The Strobes use a Xenon flashtube with
solid state circuitry enclosed in a rugged Lexan lens to provide maximum visibility and reliability for effective visible signaling. The
241575W candela wall mounted strobes are listed at 15 candela under UL Standard 1971 and meet 75 candela intensity on axis with low
current draw. The ET70 Speaker Strobes for wall mounting only are available with a choice of five UL Listed strobe options: 2415W,
241575W, 2430W, 2475W and 24110W. The ET90 Speaker Strobes for ceiling mounting only are available with a choice of four UL Listed
strobe options: 2415C, 2430C, 2475C, and 24100C. All models are Listed for indoor use only with the backboxes specified in these
instructions (see Mounting Options).
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING:
READ THESE INSTRUCTIONS CAREFULLY.
INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR
OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SPECIFICATIONS:
Models
ET70
ET70-2415W
ET70-241575W
ET70-2430W
ET70-2475W
ET70-24110W
ET90
ET90-2415C
ET90-2430C
ET90-2475C
ET90-24100C
NOTES:
1. Strobes will produce 1 flash per second over the "regulated voltage" range.
2. All models are UL Listed for indoor use with a temperature range of +32 o F to +120 o F (0 o C to +49 o C) and maximum humidity of 85% RH.
3. dBA is rated per UL Standard 1480 for Speaker Appliances.
WARNING:
THESE APPLIANCES WERE TESTED TO THE OPERATING VOLTAGE LIMITS OF 16-33 VOLTS USING
FILTERED (DC) OR UNFILTERED FULL-WAVE RECTIFIED (FWR). DO NOT APPLY 80% AND 110% OF THESE VOLTAGE
VALUES FOR SYSTEM OPERATION.
WARNING: CHECK THE MINIMUM AND MAXIMUM OUTPUT OF THE POWER SUPPLY AND STANDBY BATTERY AND
SUBTRACT THE VOLTAGE DROP FROM THE CIRCUIT WIRING RESISTANCE TO DETERMINE THE APPLIED VOLTAGE TO
THE STROBES.
NOTE: THE MAXIMUM WIRE IMPEDENCE BETWEEN STROBES SHALL NOT EXCEED 35 OHMS. THE MAXIMUM NUMBER
OF STROBES ON A SINGLE NOTIFICATION APPLIANCE CIRCUIT SHALL NOT EXCEED 47.
Copyright 2000 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SERIES ET70/90 LOW PROFILE SPEAKERS AND SPEAKER STROBES
Table 1: UL Listed Models and Ratings
Speaker
Voltage
(VRMS)
1/8
1/4
25/70
75
78
25/70
75
78
25/70
75
78
25/70
75
78
25/70
75
78
25/70
75
78
25/70
75
78
25/70
75
78
25/70
75
78
25/70
75
78
25/70
75
78
*241575W models are UL Listed at 15cd and meet 75cd on axis.
. All warnings are printed in bold capital letters.
FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
dBA at 10 Feet
(Rated Watts)
1/2
1
2
4
8
81
84
87
90
93
81
84
87
90
93
81
84
87
90
93
81
84
87
90
93
81
84
87
90
93
81
84
87
90
93
81
84
87
90
93
81
84
87
90
93
81
84
87
90
93
81
84
87
90
93
81
84
87
90
93
Strobe
Voltage
(VDC/VRMS)
Candela
Min
Nom
Max
----
----
----
----
16
24
33
15
16
24
33
15*
16
24
33
30
16
24
33
75
16
24
33
110
----
----
----
----
16
24
33
15
16
24
33
30
16
24
33
75
16
24
33
100
Mounting
Options
A,C
B,D
B,D
B,D
B,D
B,D
A
B
B
B
B
P83567 C
Sheet 1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET70 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wheelock ET70

  • Page 1 241575W candela wall mounted strobes are listed at 15 candela under UL Standard 1971 and meet 75 candela intensity on axis with low current draw. The ET70 Speaker Strobes for wall mounting only are available with a choice of five UL Listed strobe options: 2415W, 241575W, 2430W, 2475W and 24110W.
  • Page 2 Table 2: Wall Mount Strobe Current Ratings (AMPS) for 24VDC Models Rated Average Current Voltage 2415W 241575W 2430W 2475W 24110W MEAN MEAN MEAN MEAN MEAN 16.0VDC 0.072 0.072 0.099 0.099 0.125 0.125 0.215 0.220 0.276 0.296 24.0VDC 0.053 0.053 0.068 0.076 0.085 0.089...
  • Page 3: Light Distribution

    WARNING: MAKE SURE THAT THE TOTAL AVERAGE CURRENT, TOTAL PEAK CURRENT AND TOTAL INRUSH CURRENT REQUIRED BY ALL APPLIANCES THAT ARE CONNECTED TO THE SYSTEM’S PRIMARY AND SECONDARY POWER SOURCES, NAC CIRCUITS, SM AND DSM SYNC MODULES DO NOT EXCEED THE POWER SOURCES’...
  • Page 4 Table 3A: Vertical Plane (Wall Mount) Vertical 1575W* 110W Angle Typ. Typ. Typ. Typ. Typ. (in deg.) Min. 1575W Min. Min. Min. 110W 15.0 30.0 75.0 110.0 13.5 27.0 67.5 99.0 13.5 27.0 67.5 99.0 13.5 27.0 67.5 99.0 13.5 27.0 67.5 99.0...
  • Page 5: Wiring Information

    Table 3C: Vertical Plane (Ceiling Mount) Vertical 100C Angle Typ. Typ. Typ. Typ. (in deg.) Min. Min. Min. Min. 100C 15.0 30.0 75.0 13.5 27.0 67.5 13.5 27.0 67.5 13.5 27.0 67.5 13.5 27.0 67.5 13.5 27.0 67.5 11.3 27.0 67.5 11.3 19.5...
  • Page 6 WARNING: THE SPEAKER AND SPEAKER STROBE APPLIANCES MUST BE FIELD SET TO THE DESIRED dBA SOUND OUTPUT LEVEL BEFORE THEY ARE INSTALLED. THIS IS DONE BY PROPERLY INSERTING JUMPER PLUGS IN ACCORDANCE WITH THESE INSTRUCTIONS. INCORRECT SETTINGS WILL RESULT IN IMPROPER PERFORMANCE, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
  • Page 7: Mounting Options

    Although the limits shown for each mounting option comply with the National Electrical Code (NEC), Wheelock recommends use of the largest backbox option shown and the use of approved stranded field wires, whenever possible, to provide additional wiring room for easy installation and minimum stress on the product from wiring.
  • Page 8: Mounting Procedures

    ORIENTATION. FAILURE TO DO SO COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS. ET70-24110W strobe models are Listed for use in sleeping or non-sleeping areas when installed in accordance with appropriate NFPA Standards and the Authority Having Jurisdiction.
  • Page 9 DOCUMENTS DESCRIBING THE PRODUCT FOR USE IN PROMOTIONAL OR ADVERTISING CLAIMS, OR FOR ANY OTHER USE, INCLUDING DESCRIPTION OF THE PRODUCT'S APPLICATION, OPERATION, INSTALLATION AND TESTING IS USED AT THE SOLE RISK OF THE USER AND WHEELOCK WILL NOT HAVE ANY LIABILITY FOR SUCH USE.
  • Page 10: Limited Warranty

    (as determined by date code). Correction of defects by repair or replacement shall be at Wheelock's sole discretion and shall constitute fulfillment of all obligations under this warranty. THE FOREGOING LIMITED WARRANTY SHALL IMMEDIATELY TERMINATE IN THE EVENT ANY PART NOT FURNISHED BY WHEELOCK IS INSTALLED IN THE PRODUCT.
