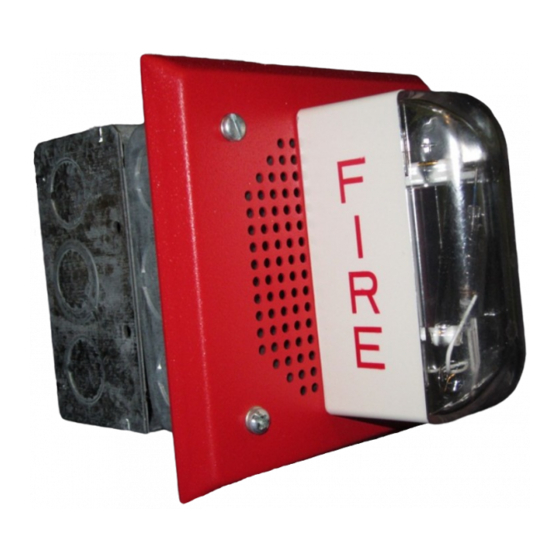

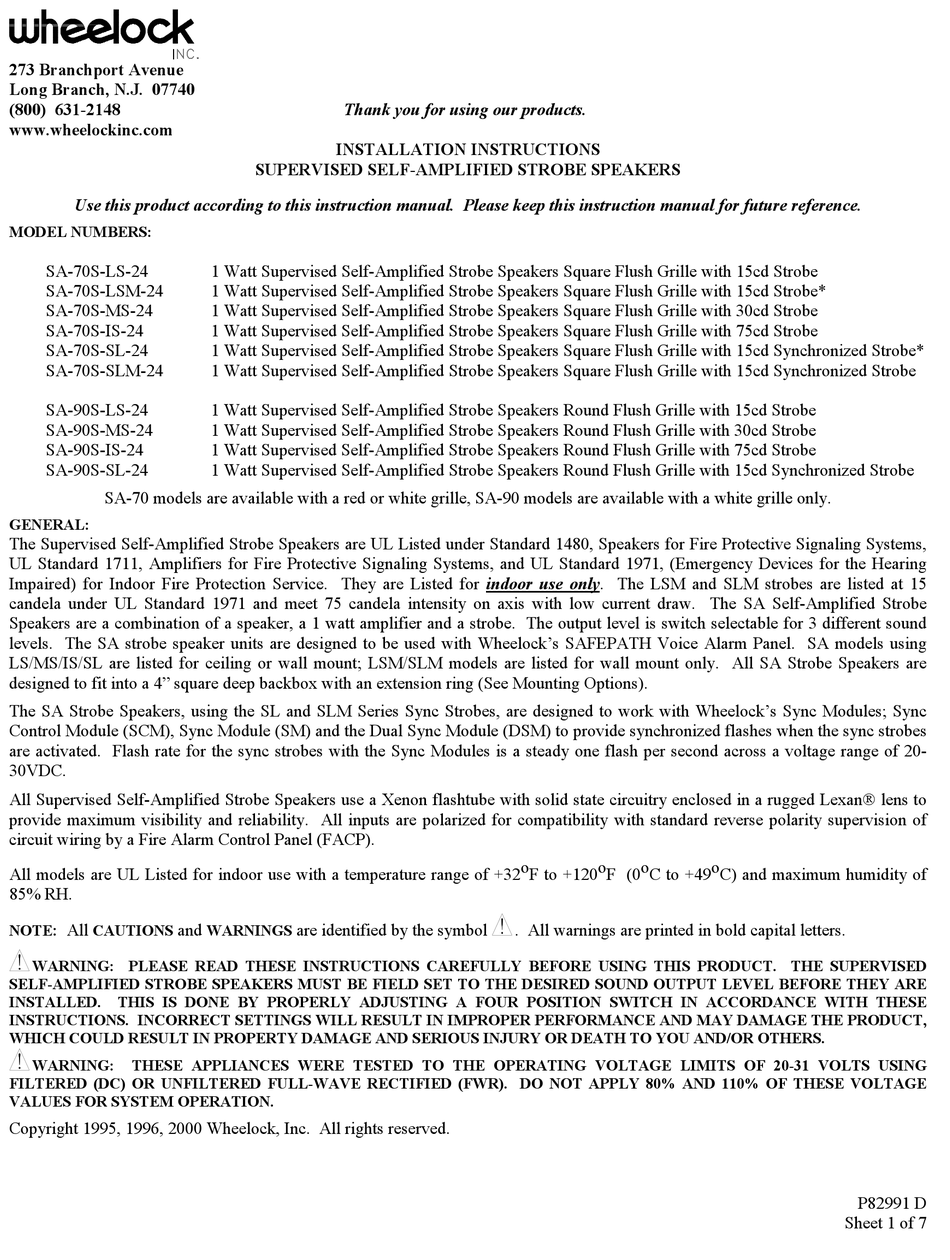

Wheelock SA-70S-LS-24 Installation Instructions Manual

273 Branchport Avenue
Long Branch, N.J. 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
MODEL NUMBERS:
SA-70S-LS-24
SA-70S-LSM-24
SA-70S-MS-24
SA-70S-IS-24
SA-70S-SL-24
SA-70S-SLM-24
SA-90S-LS-24
SA-90S-MS-24
SA-90S-IS-24
SA-90S-SL-24
SA-70 models are available with a red or white grille, SA-90 models are available with a white grille only.
GENERAL:
The Supervised Self-Amplified Strobe Speakers are UL Listed under Standard 1480, Speakers for Fire Protective Signaling Systems,
UL Standard 1711, Amplifiers for Fire Protective Signaling Systems, and UL Standard 1971, (Emergency Devices for the Hearing
Impaired) for Indoor Fire Protection Service. They are Listed for indoor use only. The LSM and SLM strobes are listed at 15
candela under UL Standard 1971 and meet 75 candela intensity on axis with low current draw. The SA Self-Amplified Strobe
Speakers are a combination of a speaker, a 1 watt amplifier and a strobe. The output level is switch selectable for 3 different sound
levels. The SA strobe speaker units are designed to be used with Wheelock's SAFEPATH Voice Alarm Panel. SA models using
LS/MS/IS/SL are listed for ceiling or wall mount; LSM/SLM models are listed for wall mount only. All SA Strobe Speakers are
designed to fit into a 4" square deep backbox with an extension ring (See Mounting Options).
The SA Strobe Speakers, using the SL and SLM Series Sync Strobes, are designed to work with Wheelock's Sync Modules; Sync
Control Module (SCM), Sync Module (SM) and the Dual Sync Module (DSM) to provide synchronized flashes when the sync strobes
are activated. Flash rate for the sync strobes with the Sync Modules is a steady one flash per second across a voltage range of 20-
30VDC.
All Supervised Self-Amplified Strobe Speakers use a Xenon flashtube with solid state circuitry enclosed in a rugged Lexan lens to
provide maximum visibility and reliability. All inputs are polarized for compatibility with standard reverse polarity supervision of
circuit wiring by a Fire Alarm Control Panel (FACP).
All models are UL Listed for indoor use with a temperature range of +32 o F to +120 o F (0 o C to +49 o C) and maximum humidity of
85% RH.
: All and
NOTE CAUTIONS
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. THE SUPERVISED
SELF-AMPLIFIED STROBE SPEAKERS MUST BE FIELD SET TO THE DESIRED SOUND OUTPUT LEVEL BEFORE THEY ARE
INSTALLED. THIS IS DONE BY PROPERLY ADJUSTING A FOUR POSITION SWITCH IN ACCORDANCE WITH THESE
INSTRUCTIONS. INCORRECT SETTINGS WILL RESULT IN IMPROPER PERFORMANCE AND MAY DAMAGE THE PRODUCT,
WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
WARNING: THESE APPLIANCES WERE TESTED TO THE OPERATING VOLTAGE LIMITS OF 20-31 VOLTS USING
FILTERED (DC) OR UNFILTERED FULL-WAVE RECTIFIED (FWR). DO NOT APPLY 80% AND 110% OF THESE VOLTAGE
VALUES FOR SYSTEM OPERATION.
Copyright 1995, 1996, 2000 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SUPERVISED SELF-AMPLIFIED STROBE SPEAKERS
1 Watt Supervised Self-Amplified Strobe Speakers Square Flush Grille with 15cd Strobe
1 Watt Supervised Self-Amplified Strobe Speakers Square Flush Grille with 15cd Strobe*
1 Watt Supervised Self-Amplified Strobe Speakers Square Flush Grille with 30cd Strobe
1 Watt Supervised Self-Amplified Strobe Speakers Square Flush Grille with 75cd Strobe
1 Watt Supervised Self-Amplified Strobe Speakers Square Flush Grille with 15cd Synchronized Strobe*
1 Watt Supervised Self-Amplified Strobe Speakers Square Flush Grille with 15cd Synchronized Strobe
1 Watt Supervised Self-Amplified Strobe Speakers Round Flush Grille with 15cd Strobe
1 Watt Supervised Self-Amplified Strobe Speakers Round Flush Grille with 30cd Strobe
1 Watt Supervised Self-Amplified Strobe Speakers Round Flush Grille with 75cd Strobe
1 Watt Supervised Self-Amplified Strobe Speakers Round Flush Grille with 15cd Synchronized Strobe
are identified by the symbol
WARNINGS
. All warnings are printed in bold capital letters.
P82991 D
Sheet 1 of 7
