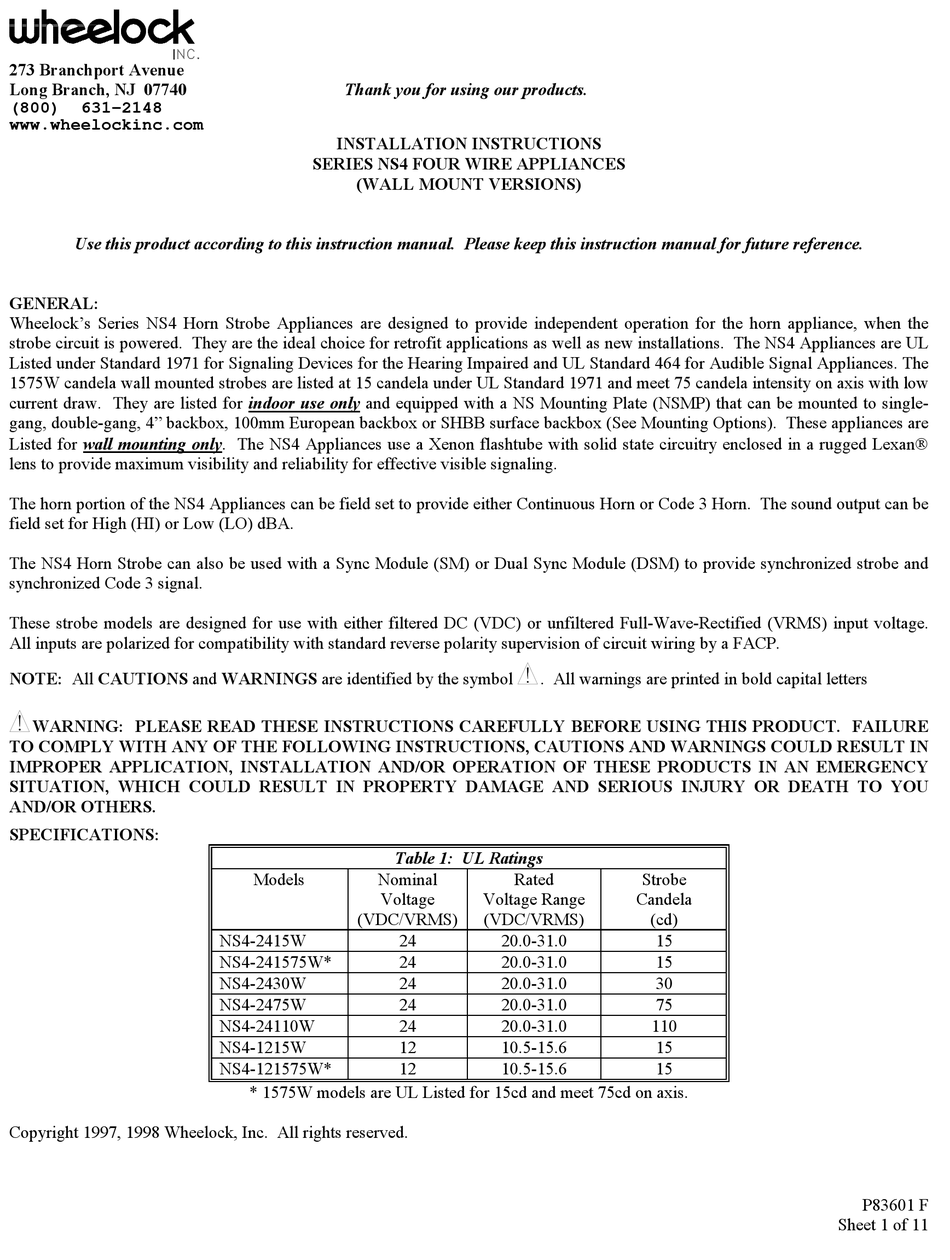

273 Branchport Avenue
Long Branch, NJ 07740
(800)
631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:
Wheelock's Series NS4 Horn Strobe Appliances are designed to provide independent operation for the horn appliance, when the
strobe circuit is powered. They are the ideal choice for retrofit applications as well as new installations. The NS4 Appliances are UL
Listed under Standard 1971 for Signaling Devices for the Hearing Impaired and UL Standard 464 for Audible Signal Appliances. The
1575W candela wall mounted strobes are listed at 15 candela under UL Standard 1971 and meet 75 candela intensity on axis with low
current draw. They are listed for indoor use only and equipped with a NS Mounting Plate (NSMP) that can be mounted to single-
gang, double-gang, 4" backbox, 100mm European backbox or SHBB surface backbox (See Mounting Options). These appliances are
Listed for wall mounting only. The NS4 Appliances use a Xenon flashtube with solid state circuitry enclosed in a rugged Lexan
lens to provide maximum visibility and reliability for effective visible signaling.
The horn portion of the NS4 Appliances can be field set to provide either Continuous Horn or Code 3 Horn. The sound output can be
field set for High (HI) or Low (LO) dBA.
The NS4 Horn Strobe can also be used with a Sync Module (SM) or Dual Sync Module (DSM) to provide synchronized strobe and
synchronized Code 3 signal.
These strobe models are designed for use with either filtered DC (VDC) or unfiltered Full-Wave-Rectified (VRMS) input voltage.
All inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring by a FACP.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE
TO COMPLY WITH ANY OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN
IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY
SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.
SPECIFICATIONS:
Copyright 1997, 1998 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SERIES NS4 FOUR WIRE APPLIANCES
(WALL MOUNT VERSIONS)
Table 1: UL Ratings
Models
Nominal
Voltage
(VDC/VRMS)
NS4-2415W
NS4-241575W*
NS4-2430W
NS4-2475W
NS4-24110W
NS4-1215W
NS4-121575W*
* 1575W models are UL Listed for 15cd and meet 75cd on axis.
. All warnings are printed in bold capital letters
Rated
Voltage Range
(VDC/VRMS)
24
20.0-31.0
24
20.0-31.0
24
20.0-31.0
24
20.0-31.0
24
20.0-31.0
12
10.5-15.6
12
10.5-15.6
Strobe
Candela
(cd)
15
15
30
75
110
15
15
P83601 F
Sheet 1 of 11
Advertisement
Table of Contents
Related Manuals for Wheelock NS4-2415W
Summary of Contents for Wheelock NS4-2415W
- Page 1 GENERAL: Wheelock’s Series NS4 Horn Strobe Appliances are designed to provide independent operation for the horn appliance, when the strobe circuit is powered. They are the ideal choice for retrofit applications as well as new installations. The NS4 Appliances are UL Listed under Standard 1971 for Signaling Devices for the Hearing Impaired and UL Standard 464 for Audible Signal Appliances.
- Page 2 WARNING: ALTHOUGH UL TESTING HAS VERIFIED THAT THESE PRODUCTS FUNCTION EVEN AT 80% OF THEIR MINIMUM RATING AND 110% OF THEIR MAXIMUM RATING, WHEELOCK STRONGLY RECOMMENDS THAT THE VOLTAGE APPLIED TO THESE PRODUCTS BE WITHIN THEIR RATED VOLTAGE RANGE. THE...
- Page 3 Table 3: Strobe Current Ratings (AMPS) Rated Average Current Voltage NS4-2415W NS4-241575W NS4-2430W NS4-2475W NS4-24110W 20.0VDC 0.067 0.084 0.100 0.165 0.209 24.0VDC 0.057 0.072 0.085 0.140 0.169 31.0VDC 0.049 0.059 0.069 0.114 0.138 20.0VRMS 0.087 0.109 0.131 0.217 0.274 24.0VRMS 0.080...
- Page 4 Table 3A: Horn Current Ratings (AMPS) for Wall Models High dBA Voltage NS4-2415W NS4-241575W NS4-2430W NS4-2475W NS4-24110W 20.0VDC 0.024 0.024 0.024 0.024 0.024 24.0VDC 0.028 0.028 0.028 0.028 0.028 31.0VDC 0.036 0.036 0.036 0.036 0.036 20.0VRMS 0.034 0.034 0.034 0.034 0.034...
- Page 5 LIGHT DISTRIBUTION PER UL 1971: Table 4: Horizontal Plane Horizontal 15cd 1575cd* 30cd 75cd 110cd Angle (in deg.) UL Min. Typ. 15cd Typ. 1575cd UL Min. Typ. 30cd UL Min. Typ. 75cd UL Min. Typ. 110cd 15.0 30.0 75.0 110.0 13.5 27.0 67.5...
- Page 6 WARNING: THE NS4 APPLIANCES MUST BE FIELD SET TO THE DESIRED TONE AND dBA SOUND OUTPUT LEVEL BEFORE THEY ARE INSTALLED. THIS IS DONE BY PROPERLY INSERTING JUMPER PLUGS IN ACCORDANCE WITH THESE INSTRUCTIONS. INCORRECT SETTINGS WILL RESULT IN IMPROPER PERFORMANCE, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
-

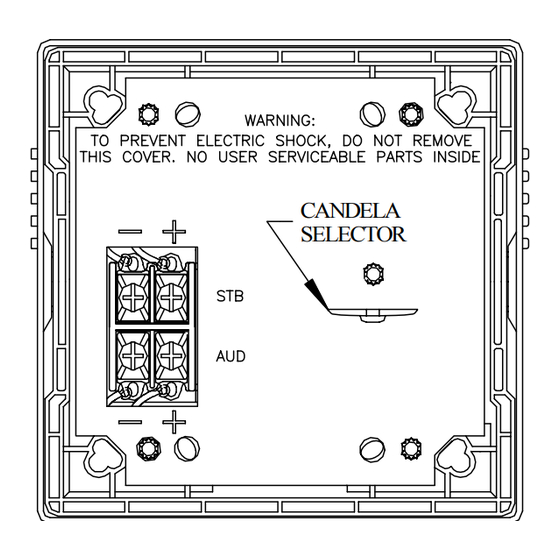

Page 7: Wiring Information
WIRING INFORMATION: Figure 6: Audible signal and strobe operate independently. FROM FIRE ALARM TO NEXT APPLIANCE CONTROL PANEL (FACP). OR END-OF-LINE PRECEDING APPLIANCE RESISTOR (EOLR). OR SYNC MODULE * STROBE AUDIBLE TO NEXT APPLIANCE FROM FACP OR OR EOLR PRECEDING APPLIANCE Figure 6A: Audible signal and strobe operate in unison . -
Page 8: Mounting Options
Although the limits shown for each mounting option comply with the National Electrical Code (NEC), Wheelock recommends use of the largest backbox option shown and the use of approved stranded field wires, whenever possible, to provide additional wiring room for easy installation and minimum stress on the product from wiring. -
Page 9: Mounting Procedures
MOUNTING PROCEDURES: CAUTION: Check that the installed product will have sufficient clearance and wiring room prior to installing backboxes and conduit, especially if sheathed multiconductor cable or 3/4" conduit fittings are used. 1. NS4 models have an integrated NS Mounting Plate (NSMP). 2. - Page 10 The Series NS4 products and these instructions are copyrighted by Wheelock and the Series NS4 products contain proprietary, confidential and trade secrets of Wheelock. No part of the Series NS4 products and these instructions may be photocopied, printed or reproduced in any form or modified, adapted, changed or enhanced, or converted to another programming language, or used to create updated, related or derivative works, without the prior written consent of Wheelock.
-
Page 11: Limited Warranty
(as determined by date code). Correction of defects by repair or replacement shall be at Wheelock's sole discretion and shall constitute fulfillment of all obligations under this warranty. THE FOREGOING LIMITED WARRANTY SHALL IMMEDIATELY TERMINATE IN THE EVENT ANY PART NOT FURNISHED BY WHEELOCK IS INSTALLED IN THE PRODUCT.
