273 Branchport Ave.
Long Branch, N.J.
(800)
631-2148
www.wheelockinc.com
Use this product according to this instruction manual.
GENERAL:
The Multitone Strobe Appliances are UL Listed under Standard 1638 for Fire Protective Service, private mode and UL Standard 464
for Audible Signal Appliances. They are Listed for indoor/outdoor use, wall or ceiling mount, with the backbox specified in these

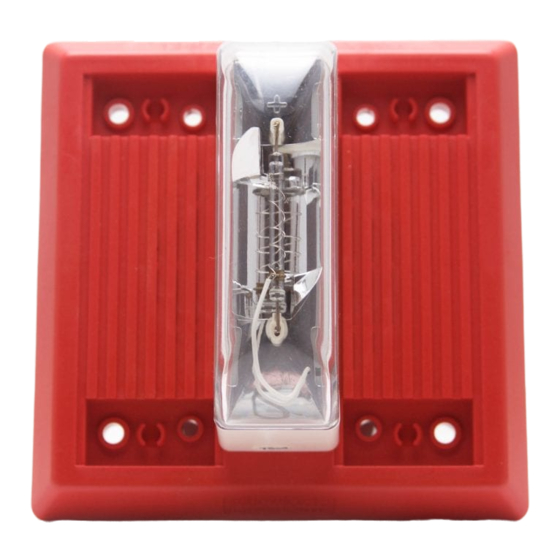

instructions (see Mounting Options). The Multitone Strobe Appliances use a Xenon flashtube with solid state circuitry enclosed in a
rugged Lexan lens to provide maximum visibility and reliability for effective visible signaling.
Multitone Strobe Appliances can be field set to produce any one of eight commonly used alarm tones. Sound output can be field set
to provide either HIGH (HI) dBA or STANDARD (STD) dBA sound output level.
All Multitone Strobe models are designed for use with either filtered DC or unfiltered Full-Wave-Rectified (FWR) input voltage. The
Multitone Strobe Appliances have separate input terminals for alarm tone activation and strobe activation. Shunt wires are provided
to operate both the alarm tone and the strobe simultaneously on a single input circuit (See Wiring Information). All inputs are
polarized for compatibility with standard reverse polarity supervision of circuit wiring by a Fire Alarm Control Panel (FACP).
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE
TO COMPLY WITH ANY OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN
IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY
SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE, SERIOUS INJURY OR DEATH TO YOU AND/OR
OTHERS.
SPECIFICATIONS:
Model
MT-12-WH
MT-24-WH
MT-24-RH
MT-24-WM
Strobe candela at -35 o Centigrade is reduced to 7.5 candela for WH models, 78 candela for WM models and 3.0 candela for RH
1
models.
The UL Listed "Rated Voltage" range is 18-31VDC for MT-24-WM/WH/RH and 12VDC for MT-12-WH using either filtered (DC)
or unfiltered full-wave-rectified (FWR) voltage. Check the minimum and maximum output of the power supply and standby battery
and subtract the voltage drop from the circuit wiring resistance to determine the applied voltage to the signaling device.
WARNING: ALTHOUGH UL TESTING HAS VERIFIED THAT THESE PRODUCTS FUNCTION EVEN AT 80% OF
THEIR MINIMUM RATING AND 110% OF THEIR MAXIMUM RATING, WHEELOCK STRONGLY RECOMMENDS
THAT THE VOLTAGE APPLIED TO THESE PRODUCTS BE WITHIN THEIR RATED VOLTAGE RANGE. THE
APPLICATION OF IMPROPER VOLTAGE MAY RESULT IN DEGRADED OPERATION OR DAMAGE TO THESE
PRODUCTS.
Copyright 1994, 1998, 1999 Wheelock, Inc. All rights reserved.
07740
INSTALLATION INSTRUCTIONS
MULTITONE STROBE APPLIANCES
manual for future reference.
Table 1: UL Ratings for Multitone Strobe Appliances
Rated Input Voltage
(VDC)
Min
Nom
----
12
18
24
18
24
18
24
Thank you for using our products.
. All warnings are printed in bold capital letters.
Rated Strobe Input Current
(AMPS)
Max
Min
----
----
31
.075
31
.075
31
.088
Please keep this instruction
Nom
Max
.150
----
.075
.078
.075
.078
.088
.096
Rated Strobe
1
Candela Per
UL 1638 (cd)
15.0cd
15.0cd
6.0cd
117.0cd
P82467-007 C
Sheet 1 of 9
Advertisement
Table of Contents
Related Manuals for Wheelock MT-12-WH
Summary of Contents for Wheelock MT-12-WH
- Page 1 Strobe candela at -35 o Centigrade is reduced to 7.5 candela for WH models, 78 candela for WM models and 3.0 candela for RH models. The UL Listed "Rated Voltage" range is 18-31VDC for MT-24-WM/WH/RH and 12VDC for MT-12-WH using either filtered (DC) or unfiltered full-wave-rectified (FWR) voltage. Check the minimum and maximum output of the power supply and standby battery and subtract the voltage drop from the circuit wiring resistance to determine the applied voltage to the signaling device.
- Page 2 Table 2: Current Ratings for Multitone Audible Appliances Rated Average Rated Average Tone Tone Description Current (Amps) Current (Amps) 24VDC 12VDC HI dBA STD dBA HI dBA STD dBA Horn Broadband Horn (Continuous) 0.040 0.023 0.100 0.020 Bell 1560 Hz Modulated (0.07 Sec. ON/Repeat) 0.014 0.012 0.031...
- Page 3 Table 4. Models Voltage MT-24-WM/WH/RH DC/FWR MT-12-WH DC/FWR (For full-wave-rectified input voltage, multiply 1.41 by percent value shown in Figure 1.) WARNING: MAKE SURE THAT THE TOTAL CURRENT REQUIRED BY ALL DEVICES THAT ARE CONNECTED TO THE SYSTEM'S PRIMARY AND SECONDARY POWER SOURCES AND SIGNALING CIRCUITS DOES NOT EXCEED THEIR RATED CURRENT.
- Page 4 MULTITONE SETTINGS: The Switch (SW1) of the Multitone Strobe Appliances, shown in Figure 2, is used to set the desired alarm tone and dBA sound output level. The factory settings are shown below. Read these instructions carefully before changing any of these factory settings. Figure 2.
-
Page 5: Wiring Information
STEP 2: Set desired alarm tone as follows (refer to Figure 3 and Table 6). Multitone Strobe Appliances are field set for any one of eight alarm tones by setting a four-position switch (SW1) as shown in Figure 3 and Table 6. Use SW1 POS 2, 3, 4 to select the desired alarm tone. 1) Multitone Strobe models have in-out wiring Table 6: Switch Settings terminals that accept two #12 to #18 American... -
Page 6: Mounting Option
Although the limits shown for each mounting option comply with the National Electrical Code (NEC), Wheelock recommends use of the largest backbox option shown and the use of approved stranded field wires, whenever possible, to provide additional wiring room for easy installation and minimum stress on the product from wiring. -
Page 7: Mounting Procedures
2-gang by 3-1/2" inch minimum deep electrical box (Figure B). All models can also be surface mounted to Wheelock's model IOB backbox (Figure C or D) or to a 4" square backbox (model DBB or BB) with Wheelock's model ISP extender (Figure F and G). - Page 8 Wheelock. No part of the Multitone Strobe products shall be decompiled, disassembled or reverse engineered.
-
Page 9: Limited Warranty
CLAIM OF ANY KIND UNLESS IT IS PROVEN THAT OUR PRODUCT WAS A DIRECT CAUSE OF SUCH CLAIM. FURTHER, IN NO EVENT, INCLUDING IN THE CASE OF A CLAIM OF NEGLIGENCE, SHALL WHEELOCK BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE PRECEDING LIMITATION MAY NOT APPLY TO ALL PURCHASERS.
