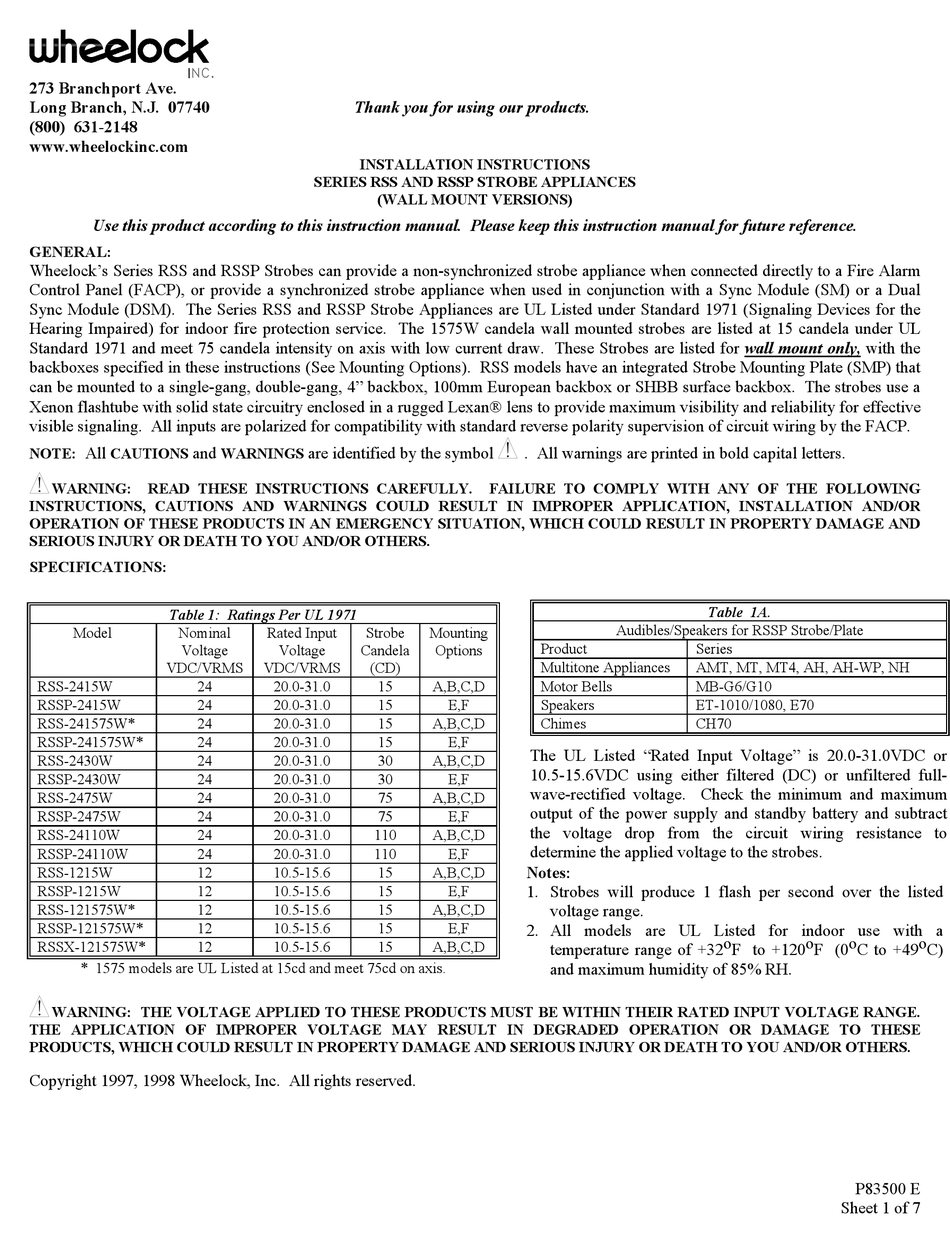

Wheelock RSSX-121575W Installation Instructions Manual

273 Branchport Ave.
Long Branch, N.J. 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.

GENERAL:

Wheelock's Series RSS and RSSP Strobes can provide a non-synchronized strobe appliance when connected directly to a Fire Alarm
Control Panel (FACP), or provide a synchronized strobe appliance when used in conjunction with a Sync Module (SM) or a Dual
Sync Module (DSM). The Series RSS and RSSP Strobe Appliances are UL Listed under Standard 1971 (Signaling Devices for the
Hearing Impaired) for indoor fire protection service. The 1575W candela wall mounted strobes are listed at 15 candela under UL
Standard 1971 and meet 75 candela intensity on axis with low current draw. These Strobes are listed for wall mount only, with the
backboxes specified in these instructions (See Mounting Options). RSS models have an integrated Strobe Mounting Plate (SMP) that
can be mounted to a single-gang, double-gang, 4" backbox, 100mm European backbox or SHBB surface backbox. The strobes use a
Xenon flashtube with solid state circuitry enclosed in a rugged Lexan lens to provide maximum visibility and reliability for effective
visible signaling. All inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring by the FACP.
All and
:
NOTE CAUTIONS
WARNING: READ THESE INSTRUCTIONS CAREFULLY.
INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR
OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.

SPECIFICATIONS:

Table 1: Ratings Per UL 1971
Model Nominal
Voltage
VDC/VRMS
RSS-2415W 24
RSSP-2415W 24
RSS-241575W* 24
RSSP-241575W* 24
RSS-2430W 24
RSSP-2430W 24
RSS-2475W 24
RSSP-2475W 24
RSS-24110W 24
RSSP-24110W 24
RSS-1215W 12
RSSP-1215W 12
RSS-121575W* 12
RSSP-121575W* 12
RSSX-121575W* 12
* 1575 models are UL Listed at 15cd and meet 75cd on axis.
WARNING: THE VOLTAGE APPLIED TO THESE PRODUCTS MUST BE WITHIN THEIR RATED INPUT VOLTAGE RANGE.
THE APPLICATION OF IMPROPER VOLTAGE MAY RESULT IN DEGRADED OPERATION OR DAMAGE TO THESE
PRODUCTS, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
Copyright 1997, 1998 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SERIES RSS AND RSSP STROBE APPLIANCES
(WALL MOUNT VERSIONS)
are identified by the symbol
WARNINGS
Rated Input Strobe
Voltage Candela
VDC/VRMS (CD)
20.0-31.0 15
20.0-31.0 15
20.0-31.0 15
20.0-31.0 15
20.0-31.0 30
20.0-31.0 30
20.0-31.0 75
20.0-31.0 75
20.0-31.0 110
20.0-31.0 110
10.5-15.6 15
10.5-15.6 15
10.5-15.6 15
10.5-15.6 15
10.5-15.6 15
. All warnings are printed in bold capital letters.
FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
Mounting
Product
Options
Multitone Appliances
A,B,C,D Motor Bells
E,F Speakers
Chimes
A,B,C,D
E,F
The UL Listed "Rated Input Voltage" is 20.0-31.0VDC or
A,B,C,D
10.5-15.6VDC using either filtered (DC) or unfiltered full-
E,F
wave-rectified voltage. Check the minimum and maximum
A,B,C,D
output of the power supply and standby battery and subtract
E,F
the voltage drop from the circuit wiring resistance to
A,B,C,D
determine the applied voltage to the strobes.
E,F
Notes:
A,B,C,D
E,F 1. Strobes will produce 1 flash per second over the listed
A,B,C,D voltage range.
E,F
2. All models are UL Listed for indoor use with a
temperature range of +32 o F to +120 o F (0 o C to +49 o C)
A,B,C,D
and maximum humidity of 85% RH.
Table 1A.
Audibles/Speakers for RSSP Strobe/Plate
Series
AMT, MT, MT4, AH, AH-WP, NH
MB-G6/G10
ET-1010/1080, E70
CH70
P83500 E
Sheet 1 of 7
