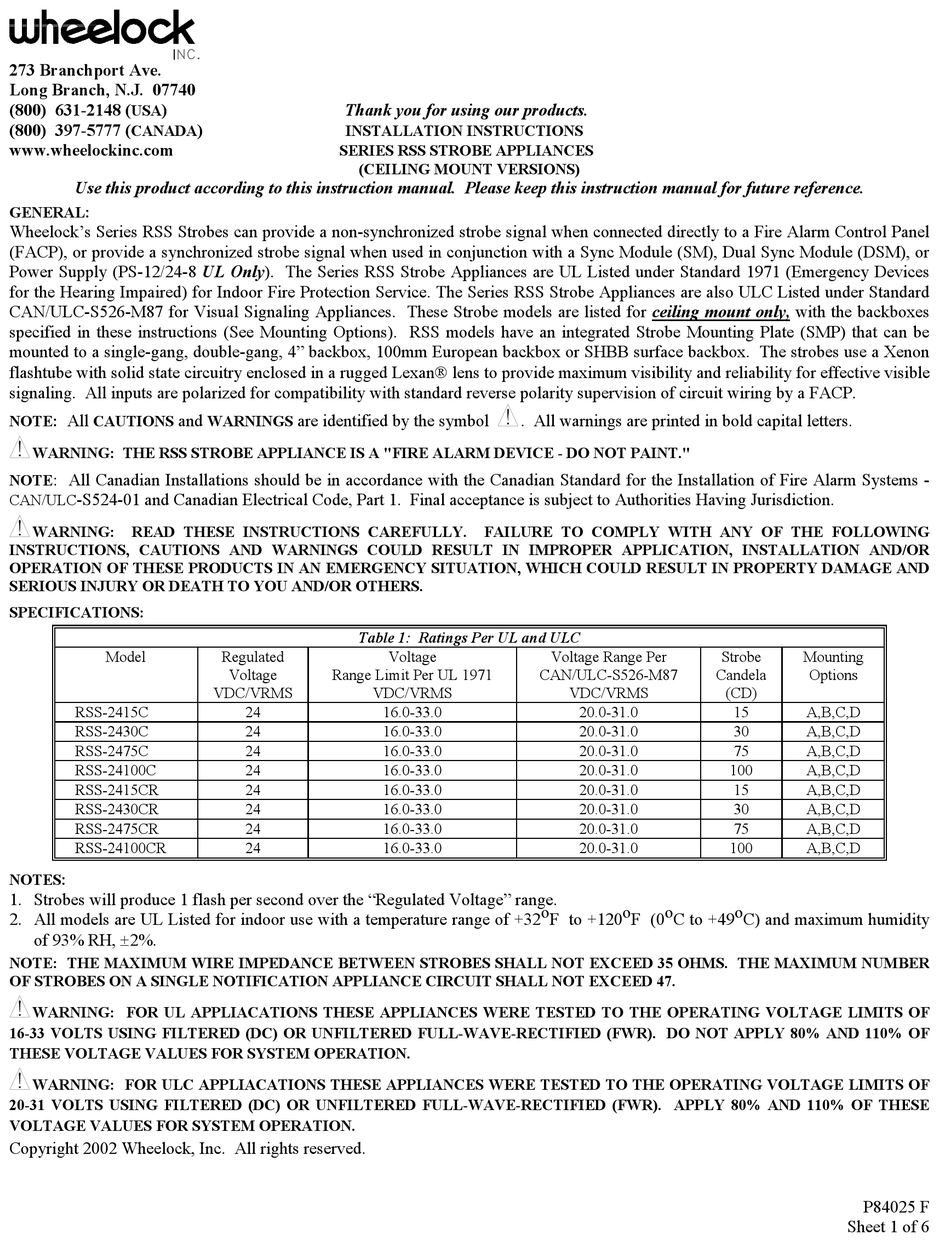

Wheelock RSS-2415C Installation Instructions Manual

273 Branchport Ave.
Long Branch, N.J. 07740
(800) 631-2148 ( )
USA
(800) 397-5777 (
CANADA
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
:
GENERAL
Wheelock's Series RSS Strobes can provide a non-synchronized strobe signal when connected directly to a Fire Alarm Control Panel
(FACP), or provide a synchronized strobe signal when used in conjunction with a Sync Module (SM), Dual Sync Module (DSM), or
Power Supply (PS-12/24-8 UL Only). The Series RSS Strobe Appliances are UL Listed under Standard 1971 (Emergency Devices
for the Hearing Impaired) for Indoor Fire Protection Service. The Series RSS Strobe Appliances are also ULC Listed under Standard
CAN/ULC-S526-M87 for Visual Signaling Appliances. These Strobe models are listed for ceiling mount only, with the backboxes
specified in these instructions (See Mounting Options). RSS models have an integrated Strobe Mounting Plate (SMP) that can be
mounted to a single-gang, double-gang, 4" backbox, 100mm European backbox or SHBB surface backbox. The strobes use a Xenon
flashtube with solid state circuitry enclosed in a rugged Lexan lens to provide maximum visibility and reliability for effective visible
signaling. All inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring by a FACP.
: All and
NOTE CAUTIONS
WARNING: THE RSS STROBE APPLIANCE IS A "FIRE ALARM DEVICE - DO NOT PAINT."
: All Canadian Installations should be in accordance with the Canadian Standard for the Installation of Fire Alarm Systems -
NOTE
-S524-01 and Canadian Electrical Code, Part 1. Final acceptance is subject to Authorities Having Jurisdiction.
CAN/ULC
WARNING: READ THESE INSTRUCTIONS CAREFULLY.
INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR
OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND
SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SPECIFICATIONS:
Model
RSS-2415C
RSS-2430C
RSS-2475C
RSS-24100C
RSS-2415CR
RSS-2430CR
RSS-2475CR
RSS-24100CR
:
NOTES
1. Strobes will produce 1 flash per second over the "Regulated Voltage" range.
2. All models are UL Listed for indoor use with a temperature range of +32 o F to +120 o F (0 o C to +49 o C) and maximum humidity
of 93% RH, ±2%.
NOTE: THE MAXIMUM WIRE IMPEDANCE BETWEEN STROBES SHALL NOT EXCEED 35 OHMS. THE MAXIMUM NUMBER
OF STROBES ON A SINGLE NOTIFICATION APPLIANCE CIRCUIT SHALL NOT EXCEED 47.
WARNING: FOR UL APPLIACATIONS THESE APPLIANCES WERE TESTED TO THE OPERATING VOLTAGE LIMITS OF
16-33 VOLTS USING FILTERED (DC) OR UNFILTERED FULL-WAVE-RECTIFIED (FWR). DO NOT APPLY 80% AND 110% OF
THESE VOLTAGE VALUES FOR SYSTEM OPERATION.
WARNING: FOR ULC APPLIACATIONS THESE APPLIANCES WERE TESTED TO THE OPERATING VOLTAGE LIMITS OF
20-31 VOLTS USING FILTERED (DC) OR UNFILTERED FULL-WAVE-RECTIFIED (FWR). APPLY 80% AND 110% OF THESE
VOLTAGE VALUES FOR SYSTEM OPERATION.
Copyright 2002 Wheelock, Inc. All rights reserved.
Thank you for using our products.
)
INSTALLATION INSTRUCTIONS
SERIES RSS STROBE APPLIANCES
(CEILING MOUNT VERSIONS)
are identified by the symbol
WARNINGS
Table 1: Ratings Per UL and ULC
Regulated
Voltage Range Limit Per UL 1971
VDC/VRMS VDC/VRMS
24
24
24
24
24
24
24
24
. All warnings are printed in bold capital letters.
FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
Voltage Voltage Range Per
CAN/ULC-S526-M87
16.0-33.0
16.0-33.0
16.0-33.0
16.0-33.0
16.0-33.0
16.0-33.0
16.0-33.0
16.0-33.0
Strobe
Candela
VDC/VRMS (CD)
20.0-31.0 15
20.0-31.0 30
20.0-31.0 75
20.0-31.0 100
20.0-31.0 15
20.0-31.0 30
20.0-31.0 75
20.0-31.0 100
Mounting
Options
A,B,C,D
A,B,C,D
A,B,C,D
A,B,C,D
A,B,C,D
A,B,C,D
A,B,C,D
A,B,C,D
P84025 F
Sheet 1 of 6
