Mitsubishi Electric DLP NW30U User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DLP™ PROJECTOR
MODEL
NW30U
User Manual
NW30U
This User Manual is important to you.
Please read it before using your projector.
U

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Electric DLP NW30U

Summary of Contents for Mitsubishi Electric DLP NW30U

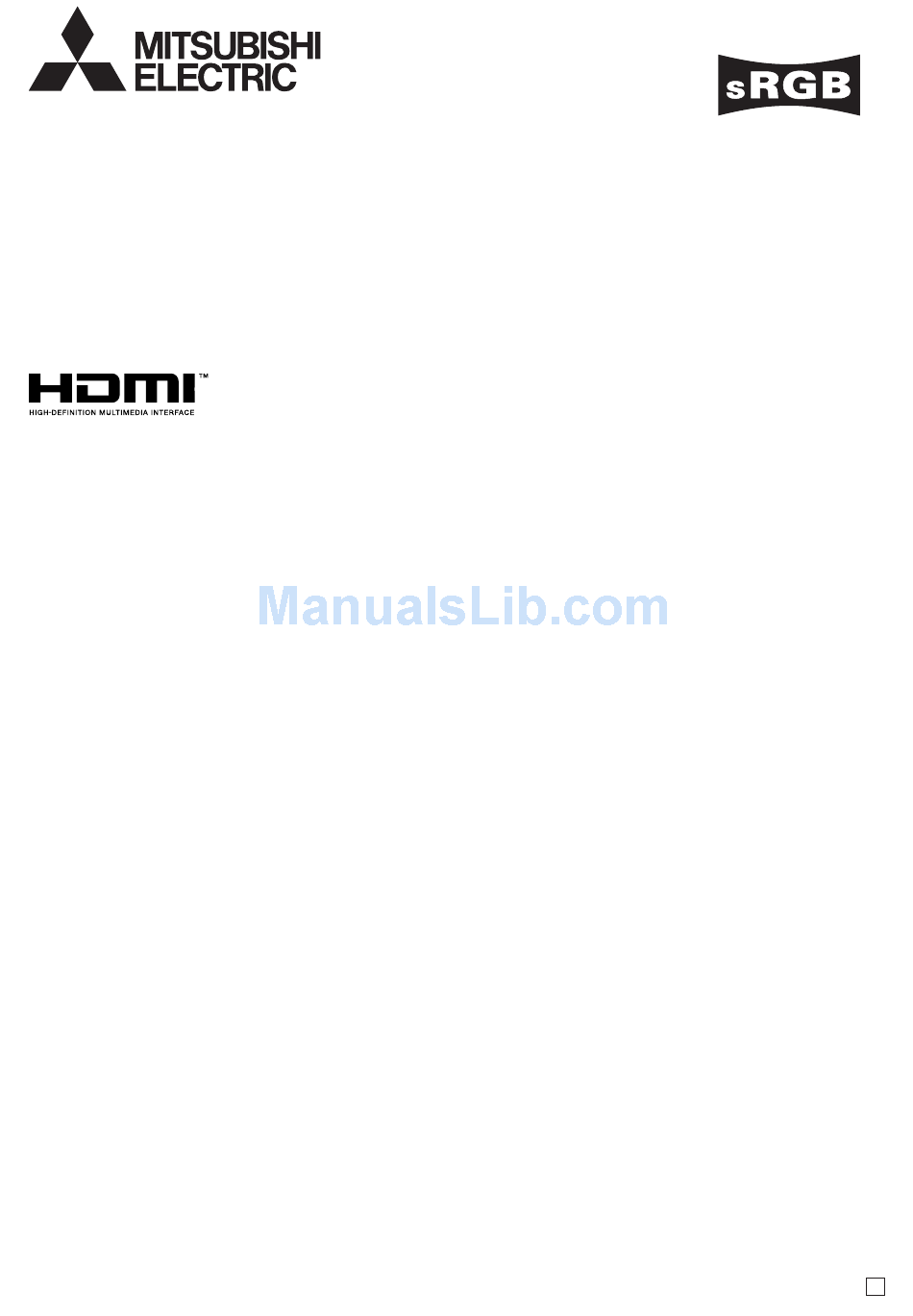

  • Page 1 DLP™ PROJECTOR MODEL NW30U User Manual NW30U This User Manual is important to you. Please read it before using your projector.
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning fl ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 3: Table Of Contents

    Contents Important safeguards ........................4 Preparing your projector ........................6 Using the remote control ........................9 Setting up your projector .........................10 Basic connections ...........................15 Basic operation ..........................19 Menu operation ..........................25 Adjusting projected images ......................34 Network functions of this projector ....................39 Initial network settings ........................40 Advanced display utilities ........................46 Advanced features ..........................61 Maintenance ............................65...

  • Page 4: Important Safeguards

    Important safeguards Please read all these instructions regarding your 10. Power sources projector and retain them for future reference. Follow This projector should be operated only from the all warnings and instructions marked on the projector. type of power source indicated on the marking label.
  • Page 5 Important safeguards (continued) Do not use the projector with condensation on it. WARNING: It can lead to breakdown or other failure. Unplug immediately if there is something Place of installation wrong with your projector. For safety’s sake, refrain from setting the projector at any Do not operate if smoke, strange noise or odor comes out place subjected to high temperature and high humidity.

  • Page 6: Preparing Your Projector

    Preparing your projector Checking accessories The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in the package. What’s included in the box AC power cord* for the U.S. J2552-0063-03 Remote control J8947-0355-00 for Europe J2552-0247-00...
  • Page 7 Preparing your projector (continued) Overview 1 Remote control sensor (front)/ Intelligent glare sensor 2 Control area 3 Zoom ring 4 Air outlet grille 5 Focus ring 6 Lens 7 Terminal panel 8 Speaker 9 Air inlet grille 10 Power jack 11 LENS SHIFT dial Control area 1 POWER button (ON/STANDBY)
  • Page 8 Preparing your projector (continued) Bottom side 1 Lock bar (SECURITY ANCHOR) • Attach a chain, etc. to this lock bar to anchor the projector. 2 Adjustment feet Remote control 1 ON button STANDBY 2 COMPUTER 1, 2 buttons 3 LAN DISP. button AUTO POSITIION 4 MENU button 5 ENTER button...

  • Page 9: Using The Remote Control

    Using the remote control Operation range (of the remote control) The maximum operation distance of the remote control is about 10 m (or about 32 feet) when the remote control is pointed at the remote control sensor of the projector. When the remote control is pointed to the screen, the distance from the remote control to the projector via the screen should be 5 m or less.

  • Page 10: Setting Up Your Projector

    Setting up your projector Before setting up Before setting up the projector, check the operating environment. If the environmental requirements are not satisfi ed, the projector may break down or fail. Setting up the screen Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the projection angle of the projector.
  • Page 11 Setting up your projector (continued) Screen size and projection distance (continued) Screen Screen width (SW) Down side Up side SW (=W) When the aspect ratio of the screen is 4:3 When the aspect ratio of the screen is 4:3, the positional relation between Screen (4:3) the projected image and the screen is as shown on the right.

  • Page 12: Changing The Auto Power Off Setting

    Setting up your projector (continued) Changing the AUTO POWER OFF Setting IMAGE REVERSE Set IMAGE REVERSE in the INSTALLATION menu setting according to the orientation of the projector. The The AUTO POWER OFF function of this projector is default setting is OFF. enabled by default.

  • Page 13: Adjusting The Position Of The Projected Image

    Setting up your projector (continued) Important: Adjusting the position of the • The automatic keystone adjustment may not projected image be carried out correctly because of the ambient To adjust the position of the projected image on the temperature and the installation conditions of the screen, use the LENS SHIFT dial.

  • Page 14: Rear Projection

    Setting up your projector (continued) Front projection, ceiling mounting Rear projection For ceiling mounting, you need the ceiling mount Ask a specialist for installation. For details, consult kit designed for this projector. Ask a specialist for your dealer. installation. For details, consult your dealer. •...

  • Page 15: Basic Connections

    Basic connections This projector can be connected with various devices such as a VCR, video camera, videodisc player, and personal computer that have analog RGB output connectors. Important: • Make sure that the connected device is turned off before starting connection. •...
  • Page 16 Basic connections (continued) Connection (for video equipment having an HDMI terminal) Equipment having an HDMI terminal To HDMI terminal HDMI HDMI (with HDMI logo) cable (option) Important: • Use a commercially available HDMI (with HDMI logo) cable. • You don’t have to connect any cable for audio input. You can input video and audio using an HDMI cable only. •...
  • Page 17 Basic connections (continued) Projector + Computer For computer with Mini D-SUB Computer cable PC audio cable COMPUTER/ (option) COMPONENT Microphone VIDEO IN (option) Microphone amplifi er AUDIO IN-1 (option) or IN-2 Computer Necessary when outputting to both a PC monitor and the projector. Computer cable (option) To monitor port MONITOR OUT...
  • Page 18 Basic connections (continued) Plugging the power cord • In order to ensure the safety in case of trouble with the projector, use an electrical outlet having an earth leakage breaker to supply the power to the projector. If you do not have such outlet, ask your dealer to install it. 1.

  • Page 19: Basic Operation

    Basic operation Projecting images Preparation: • Remove the lens cap. LENS SHIFT dial Zoom ring Focus ring POWER button STANDBY STATUS indicator (ON/STANDBY) ON button STANDBY button AUTO POSITIION POWER indicator HDMI button HDMI VIDEO VIDEO button COMPUTER COMPUTER 1, 2 buttons S-VIDEO S-VIDEO button , , , ...
  • Page 20 Basic operation (continued) To stop projecting: 9. Press the POWER button. • A confi rmation message is displayed. • To cancel the procedure, leave the projector for a while or press any button except the POWER button. 10. Press the POWER button again. •...
  • Page 21 Basic operation (continued) Mix balance You can change the volume balance between AUDIO1 and AUDIO2. Select MIX for AUDIO INPUT (PROJECTION) or AUDIO INPUT (STANDBY) in the INSTALLATION menu and press the ENTER button. The balance control bar will appear on the screen. Press the VOLUME +, -,  or  button while the balance control bar is displayed to adjust the volume balance between AUDIO1 and AUDIO2.

  • Page 22: Setting The Aspect Ratio

    Basic operation (continued) Setting the aspect ratio You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the setting according to the type of the screen to be used or your preference. How to change the settings: With the remote control: 1.

  • Page 23: Watching 3D Content

    Basic operation (continued) Watching 3D content You can enjoy 3D content with this projector. In order 3D FORMAT AUTO to watch 3D content, you need to have the following 3D SYNC INVERT items: 6. Press the  or  button to select 3D FORMAT. •...
  • Page 24 Basic operation (continued) Caution: Notes on danger to public health during watching 3D image • Stop viewing the 3D image immediately if you feel tired, discomfort, or any other abnormality. It may cause you to feel unwell if continuing to watch the 3D image in such cases.

  • Page 25: Menu Operation

    Menu operation You can make various settings using the displayed menus. Following 6 menus are displayed. IMAGE menu (pages 27 and 28) INSTALLATION menu (pages 28 FEATURE menu (page 30) and 29) opt. opt. opt. INSTALLATION IMAGE FEATURE COLOR ENHANCER SILENT MODE ASPECT AUTO...

  • Page 26: How To Set The Menus

    Menu operation (continued) How to set the menus 1. Press the MENU button. • The menu selection bar is displayed. Selectable menus are displayed by icons. (The menu icon being selected is displayed on a blue background.) opt. IMAGE The name of the menu being selected is displayed.
  • Page 27 Menu operation (continued) IMAGE menu opt. opt. IMAGE IMAGE ADVANCED MENU COLOR ENHANCER AUTO INPUT LEVEL CONTRAST CLOSED CAPTION BRIGHTNESS OPTICAL SENSOR COLOR TEMP. STANDARD COLOR MANAGEMENT AUTO COLOR TINT SHARPNESS ADVANCED MENU ENTER ITEM SETTING FUNCTION COLOR ENHANCER AUTO Select to optimize the settings automatically depending on the input signal.
  • Page 28 Menu operation (continued) IMAGE menu (continued) ITEM SETTING FUNCTION ADVANCED MENU ENTER The ADVANCED MENU is displayed for the following settings. INPUT LEVEL ±5 For analog signal input: The input level of video signal differs among devices to be connected. High input level causes solid white in displayed image and low input level causes displayed image to get dark.
  • Page 29 Menu operation (continued) INSTALLATION menu (continued) ITEM SETTING FUNCTION AUDIO INPUT AUTO Selects AUDIO1 when the input source is COMPUTER1, selects AUDIO2 (PROJECTION) when the input source is COMPUTER2, selects AUDIO3 when the input source is VIDEO/S-VIDEO, and selects HDMI when the input source is HDMI. When the input source is LAN DISPLAY, the audio played on the computer is selected.
  • Page 30 Menu operation (continued) FEATURE menu opt. FEATURE ASPECT NORMAL (FULL) PASSWORD FUNCTION DISPLAY INPUT MENU POSITION CINEMA MODE AUTO VIDEO SIGNAL AUTO SIGNAL DETECT NORMAL (WXGA) SETUP AUTO LANGUAGE English Ë HIGH ALTITUDE MODE STANDARD RESET ALL ITEM SETTING FUNCTION ASPECT NORMAL (FULL) Input video signal is displayed at the max height (800 pixels) or max...
  • Page 31 Menu operation (continued) SIGNAL menu opt. opt. opt. SIGNAL SIGNAL SIGNAL RESOLUTION (MEMORIZE) USER MEMORY CALL AUTO RESOLUTION VERTICAL 60.00 Hz 1024 x 768 CLAMP POSITION (MEMORIZE ) FREQUENCY HORIZONTAL HORIZ. POSITION 48.36 kHz CLAMP WIDTH FREQUENCY 1024 VERT. POSITION HORIZ.
  • Page 32 Menu operation (continued) NETWORK menu opt. opt. opt. NETWORK NETWORK NETWORK IP CONFIG WIRELESS SETTING PROJECTOR NAME NETWORK SSID SSID MITSUBISHI Proje... DHCP CERTIFICATION NETWORK CHANNEL ENTER IP ADDRESS 192. 168. 1. 10 AUTO PASSWORD ENCRYPTION IP CONFIG ENTER SUBNET MASK 255.
  • Page 33 Menu operation (continued) INFORMATION menu opt. INFORMATION LIGHT SOURCE HOURS COMPUTER1 INPUT 1024 x 768 RESOLUTION VERTICAL 60.00 Hz FREQUENCY HORIZONTAL 48.36 kHz FREQUENCY 5WIRE SYNC. TYPE ITEM DESCRIPTION LIGHT SOURCE HOURS This item shows the light source operation time. INPUT Indicates the name of the terminal to which the currently projected video signal is being input.

  • Page 34: Adjusting Projected Images

    Adjusting projected images To adjust the brightness (CONTRAST and BRIGHTNESS): You can make adjustments for the brightness of the projected image using the menu. (See page 26 for menu setting.) 1. Display the IMAGE menu. 2. Select CONTRAST or BRIGHTNESS by pressing the  or  button. 3.

  • Page 35: Color Enhancer

    Adjusting projected images (continued) To cancel the menu: 7. Press the MENU button. To enable the stored color temperature: 1. Set COLOR TEMP. to USER in the IMAGE menu. About color temperature Color temperature is a way to show the differences in white. White of which temperature is low appears reddish. When the color temperature rises, white appears bluish.
  • Page 36 Adjusting projected images (continued) Adjusting the tone of each color (COLOR MANAGEMENT): You can individually adjust the tone of red, green, blue, cyan, yellow, magenta and white using the menu. 1. Display the IMAGE menu. COLOR MANAGEMENT–USER 2. Press the  or  button to select COLOR MANAGEMENT. COLOR ADJ.

  • Page 37: How To Adjust The Computer Image

    Adjusting projected images (continued) How to adjust the computer image This projector automatically selects a proper signal format according to the type of video signal supplied from the computer. However, video signals from the computer may not be projected correctly depending on the types of the computer and images to be projected.
  • Page 38 Adjusting projected images (continued) How to adjust the image supplied from the computer using the menu: Carry out the following procedures according to the symptoms. Wide strips appear. ……………………………………… Adjust TRACKING in the SIGNAL menu. The projected image fl ickers. The projected image is blurred.

  • Page 39: Network Functions Of This Projector

    For details of the connection, see "LAN control IP address : 192.168.1.10 UTILITY operation manual" in the CD-ROM. SSID : MITSUBISHI Projector • IP address, subnet mask, default gateway values When STANDBY MODE of the INSTALLATION menu are the same for both wired LAN and wireless LAN.

  • Page 40: Initial Network Settings

    Initial network settings You can set the network of the projector using the Enabling or disabling the network menu. certifi cation You can select whether or not to certify the network opt. communication using the network password. NETWORK • For details, contact your dealer. PROJECTOR NAME (See page 26 for menu setting.) NETWORK...

  • Page 41: Setting Or Clearing Dhcp

    Initial network settings (continued) 5. Select OK, and NEW NETWORK PASSWORD IP Settings screen appears if the entered password is correct. (See page 26 for menu setting.) • If the entered password is not correct, 1. Display the NETWORK menu. CURRENT NETWORK PASSWORD screen 2.

  • Page 42: Ip Address Settings

    Initial network settings (continued) IP Address Settings Subnet Mask Settings 1. Display the IP CONFIG menu. 1. Display the IP CONFIG menu. 2. Press the  or  button to select IP ADDRESS. 2. Press the  or  button to select SUBNET MASK. SUBNET MASK 255.

  • Page 43: Saving Ip Config Settings

    Initial network settings (continued) Setting or clearing DHCP Function End IP Address setting 1. Display the IP CONFIG menu. 1. Display the IP CONFIG menu. 2. Press the  or  button to select DHCP 2. Press the  or  button to select END IP FUNCTION.

  • Page 44: Wireless Setting

    NEXT/PREV key: Switching the marks. characters. SPACE key: Inserting a space in the position • The default SSID is “MITSUBISHI Projector”. of enter cursor. 5. Select OK to complete the setting with the SSID CLEAR key: Deleting all the entered stored.
  • Page 45 Initial network settings (continued) 7. Select OK to complete the setting with the • Network Initialization dialog appears. Encryption and KEY stored. Select CANCEL to 4. If the ENTER button is pressed again, the network complete the setting without storing. settings will be initialized.

  • Page 46: Advanced Display Utilities

    Advanced display utilities WiFi-Doc 2. Turn on Wi-Fi. • Access points will be listed on the screen. Via a wireless LAN, you can transfer the images of the Microsoft PowerPoint, Word, Excel, PDF or TXT format 3. Tap the projector’s SSID. stored in the tablet computer to the projector and project them controlling with the tablet computer.
  • Page 47 Advanced display utilities (continued) 4. Select a fi le to be projected by tapping its name. • The image of the selected fi le is displayed. 5. Operate the image by touching the tablet screen. Operate the image by touching the tablet screen. •...
  • Page 48 Advanced display utilities (continued) 4. Click [Remote settings]. Thin client Projecting the desktop screen of a remote computer connected via a network onto the projector, you can remotely control the remote computer through the projector. To use the thin client function, you need to install the software “ThinClient_v200.exe”...
  • Page 49 Advanced display utilities (continued)  In Windows XP 7. Click [Add...]. 1. Select [Start]-[Control Panel]. 2. Click [Performance and Maintenance]. • When using Classic View, double-click the System icon and go to step 4. 3. Click [System]. • The “System Properties” window is displayed. 4.
  • Page 50 Advanced display utilities (continued) 3. Click the [Exceptions] tab, check the [Remote Connection Desktop] checkbox and click [OK]. Connect the projector and the computer using a commercially available LAN cable. Connect a USB mouse and USB keyboard to the USB-A terminal on the projector.
  • Page 51 Advanced display utilities (continued) Important: user is currently logged on to this computer.” • The following key assignment is applied to any will be displayed. keyboard connected to the projector. • If you connect to a computer with Windows Server 2008 R2 or Windows MultiPoint Server PrtSc ScrLk Pause and try logging on to a user account where any...
  • Page 52 Advanced display utilities (continued) Client Access License ( CAL) Device CAL With Device CAL, you purchase CALs according to the An application allowing multiple users to share number of devices accessing to the host, regardless a single operation system requires the standard of the number of users who access the host via thin Microsoft Windows server licenses.
  • Page 53 Advanced display utilities (continued)  When using Mac OS X LAN Display You can project the computer images inputted via a 1. Copy “LAN Display System_v300.dmg” contained wired or wireless LAN. in the TOOLS folder of CD-ROM to the hard disk of your computer.
  • Page 54 Advanced display utilities (continued) Starting the LAN Display System Connection Connect the projector and the computer either by 2. Click the LAN Display System icon “ ” to execute using a commercially available LAN cable or USB the program. wireless LAN adapter. •...
  • Page 55 Advanced display utilities (continued) • Stop button: • About Stops the projection. Displays the version information of the LAN • Freeze button: Display System. Freezes the projected image. • Exit • Menu button: Exits the LAN Display System. Displays the menu window. (See the next step Important: for details.) •...
  • Page 56 Advanced display utilities (continued) Installing the Virtual Audio driver Using SidePad function  When using Windows XP While computer images are projected with the LAN Before starting installation, be sure to read “ReadMe. Display, you can operate the computer from the tablet txt”...

  • Page 57: Usb Viewer

    Advanced display utilities (continued) 1. On the tablet computer, tap the MirrorOp Receiver USB VIEWER icon “ ” to turn on MirrorOp Receiver. You can project JPEG images and the PtG contents • The MirrorOp Receiver startup screen is stored in the USB device such as a USB fl ash drive displayed.
  • Page 58 Advanced display utilities (continued) System requirement • CPU: ® ® Intel Pentium M processor 1.5 GHz or above • Memory: 256 MB or more (recommended) • OS: Windows XP Service Pack 3, Windows Vista and Windows 7 • Microsoft Offi ce: Microsoft Offi...
  • Page 59 Advanced display utilities (continued) Connection Performing the USB VIEWER Connect a USB device to the USB-A terminal on the Selecting a USB VIEWER input projector. 1. Press the USB VIEWER button on the remote control or the SOURCE button on the projector, and select USB VIEWER .
  • Page 60 Advanced display utilities (continued) Displaying PtG fi le Displaying with AutoRun function 5. Press the  or  button on the projector or the 5. Create an “AUTORUN” folder in the root directory remote control to select Presentation to Go and of the USB device using a computer or other.

  • Page 61: Advanced Features

    Advanced features 9. Press the ENTER button. Password function • If the entered passwords don’t match, an error This projector is equipped with the password function message will appear. that is designed for prevention of wrong operation by • To cancel the procedure, press the MENU children and restriction on operation by other than button.

  • Page 62: Presentation Timer

    Advanced features (continued) Magnifying the displayed image Presentation timer By pressing the MAGNIFY button on the remote By pressing the TIMER button on the remote control, control, you can magnify the image to view the details. you can set up and display presentation timer on the •...

  • Page 63: Supervising And Controlling By Computer

    Advanced features (continued) Supervising and controlling by computer About PJLink™ You can supervise and control the projector’s operation • To use PJLink™ function, the PJLink™ application software is required. using a personal computer via a LAN. • To use this function, set the network certifi cation Major functions properly according to the setting of the network ProjectorView Global+...
  • Page 64 Inquiry about the projector name The projector name set on the NETWORK menu or the Crestron RoomView is returned. INF1 ? Inquiry about the manufacturer name “MITSUBISHI” is returned. INF2 ? Inquiry about the model name “NW30U” is returned. INF0 ? Inquiry about other information No other information is available.

  • Page 65: Maintenance

    Maintenance Warning: • Do not use fl ammable solvents (benzene, thinner, etc.) and fl ammable aerosols when cleaning the projector body and lens. Flammable substances may ignite causing fi re or breakdown while the light source is illuminating. Caution: • Be sure to turn off the light source and unplug the power cord from the wall outlet before you perform any maintenance on the projector.

  • Page 66: Troubleshooting

    Troubleshooting Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be sure to unplug the power plug, and then contact your dealer. No image appears on the screen. Problem Solution Power can not be •...
  • Page 67 Troubleshooting (continued) Images are not displayed correctly. Problem Solution Projected images are • Check that the cable connected to the external device isn’t intermittent. shaking. • Connect the cable’s plug with the external device’s connector fi rmly. Projected images are •...
  • Page 68 Troubleshooting (continued) Images are not displayed correctly. (continued) Problem Solution Tint in projected • Check that COMPUTER INPUT in the SIGNAL menu is correctly set. (See page 31.) images is incorrect. • Check that the cables connected to the external devices are not broken. Different color tint.
  • Page 69 Troubleshooting (continued) Others (continued) Problem Solution The buttons on the • PASSWORD FUNCTION in the FEATURE menu has been set to MENU ACCESS projector (except for enable the password lock.  Cancel the password lock or contact the person in charge of management of the the POWER button) don’t function.

  • Page 70: Indicators

    Indicators This projector has two indicators, each of which shows the operation condition of the projector. The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your dealer. POWER indicator STATUS indicator Normal condition POWER STATUS CONDITION...

  • Page 71: Specifi Cations

    Specifi cations The specifi cations and outside appearance of the projector are subject to change without prior notice. Type DLP™ projector Model NW30U Display technology 0.65-inch single chip Digital Micromirror Device (DMD) Pixels: 1280 x 800 = 1024000 pixels Projection lens F 2.4 - 2.9 f= 20.7 - 31.0 mm Light-source LED and laser...
  • Page 72 Specifi cations (continued) Specifi cation of RGB signals in each computer mode of the projector 3D suppoted mode Plug and Play *5 Horizontal Vertical COMPUTER / Normal mode Resolution Signal mode frequency frequency COMPONENT HDMI IN (H x V) (H x V) (kHz) (Hz) VIDEO IN...
  • Page 73 Specifi cations (continued) Specifi cation of RGB signals in each computer mode of the projector (continued) 3D suppoted mode Plug and Play *5 Horizontal Vertical COMPUTER / Normal mode Resolution Signal mode frequency frequency COMPONENT HDMI IN (H x V) (H x V) (kHz) (Hz)

  • Page 74: Kensington Lock

    Specifi cations (continued) Connectors COMPUTER/COMPONENT VIDEO IN, MONITOR OUT HDMI (HDMI 19-pin) SERIAL (D-SUB 9-pin) (Mini D-SUB 15-pin) 19 1 COMPUTER/COMPONENT MONITOR OUT VIDEO IN Pin No. Spec. Pin No. Name Pin No. Spec. R (RED)/C TMDS Data 2 + –...
