Mitsubishi Electric DLP EX320U Manual

Controlling the projector using a personal computer.
Hide thumbs


Advertisement

DLP
Projector
EX320U/EW330U/EX320U-ST/EX321U-ST/EW331U-ST

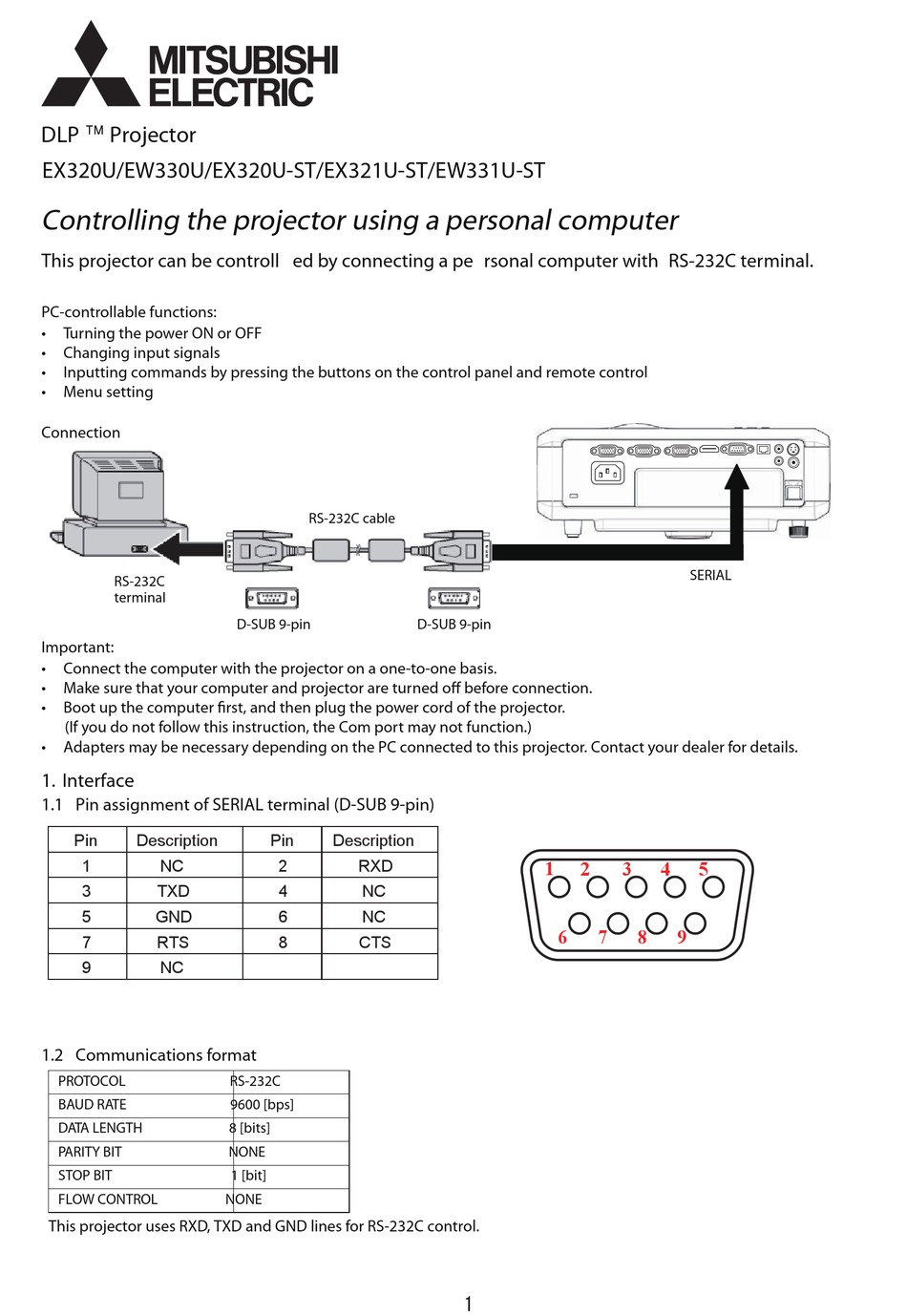

Controlling the projector using a personal computer
This projector can be controll ed by connecting a pe rsonal computer with RS-232C terminal.
PC-controllable functions:
Turning the power ON or OFF
Changing input signals
Inputting commands by pressing the buttons on the control panel and remote control
Menu setting
Connection
RS-232C
terminal
Important:
Connect the computer with the projector on a one-to-one basis.
Make sure that your computer and projector are turned o before connection.
Boot up the computer rst, and then plug the power cord of the projector.
(If you do not follow this instruction, the Com port may not function.)
Adapters may be necessary depending on the PC connected to this projector. Contact your dealer for details.
1. Interface
1.1 Pin assignment of SERIAL terminal (D-SUB 9-pin)
Pin
Description
1
NC
3
TXD
5
GND
7
RTS
9
NC
1.2 Communications format
PROTOCOL
BAUD RATE
DATA LENGTH
PARITY BIT
STOP BIT
FLOW CONTROL
This projector uses RXD, TXD and GND lines for RS-232C control.
RS-232C cable
D-SUB 9-pin
Pin
Description
2
RXD
4
NC
6
NC
8
CTS
RS-232C
9600 [bps]
8 [bits]
NONE
1 [bit]
NONE
D-SUB 9-pin
1
2
6
1
SERIAL
3
4
5
7
8
9
