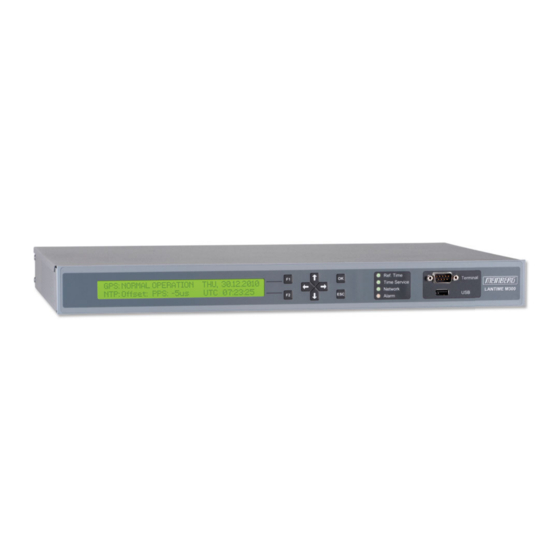

LANTIME M300/MGR: NTP Time Server with integrated mobile GPS radio
clock
The Meinberg LANTIME M300/MGR Time Server uses a fully integrated mobile GPS reference clock as its
time source. A highly stable internal oscillator accurately bridges periods of interference or temporary loss of
reception.
The M300/MGR includes the Meinberg MGR170 timing receiver and is intended for use in mobile
applications onboard vehicles, ships, trains, or airplanes. The MGR170 GPS receiver supports different
dynamic platform models to optimize the navigation engine for the specific mobile environment and allows
more precise data averaging and a more accurate position solution.
The variety of possible output configurations makes this time server the premier choice for a broad range of
mobile time and frequency synchronization applications.
Important note
Produktgruppe

Key Features

- Synchronization of NTP and SNTP compatible clients
- Web based status and configuration interface [1]
utility
- Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP,
SYSLOG, SNMP
- Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
- Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap
messages
- USB Port for installing firmware updates, locking frontpanel menu access and backup/restore of
configuration and log files
- Two independant RJ-45 ethernet interfaces 10/100 MBit
- GPS receiver for mobile applications
rev 2013.0704.1632
(Demo)
and console based graphical configuration
Page 1/5
Meinberg Radio Clocks
Lange Wand 9
31812 Bad Pyrmont, Germany
Phone: +49 (5281) 9309-0
Fax:
+49 (5281) 9309-30
http://www.meinberg.de
info@meinberg.de
lantime-m300-mgr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANTIME M300/MGR and is the answer not in the manual?

Questions and answers

Summary of Contents for Meinberg LANTIME M300/MGR

  • Page 1: Key Features

    LANTIME M300/MGR: NTP Time Server with integrated mobile GPS radio clock The Meinberg LANTIME M300/MGR Time Server uses a fully integrated mobile GPS reference clock as its time source. A highly stable internal oscillator accurately bridges periods of interference or temporary loss of reception.
  • Page 2 IPv6 autoconf. High precision Oscillators available The LANTIME M300/MGR is equipped with a high precision oscillator "TCXO" (look at oscillator options for details) as standard. The oscillator determines the holdover characteristics (e.g. when the GPS signal is disturbed or jammed). For applications with higher accuracy requirements there are several oscillator options available.
  • Page 3 Data format: 7N2, 7E2, 8E1, 8N1, 8O1 Time telegram: [3] , SAT, Uni Erlangen (NTP), NMEA Meinberg Standard-Telegram (RMC, GGA), SPA, COMPUTIME, SYSPLEX, Meinberg GPS Telegram, !Capture-Telegram! Alarm output Synchronous state of the module, relay output (changeover contact) Network Interface...
  • Page 4 Ports - backup and restore configuration files - copy security keys - lock/unlock front keys Supported Time String Meinberg Standard Timestring, Uni Erlangen Timestring, SYSPLEX Timer, NMEA, Formats Computime, ABB-SPA, SAT, Arbiter Single-Board-Computer i386 compatible 500Mhz CPU, 128 MB RAM Operating System of the Linux with nano kernel (incl.
  • Page 5 Firmware is field-upgradeable, updates can be installed directly at the unit or via a remote network connection. Software updates are provided free of charge, for the lifetime of your Meinberg product. RoHS-Status of the product This product is fully RoHS compliant WEEE status of the product This product is handled as a B2B category product.
