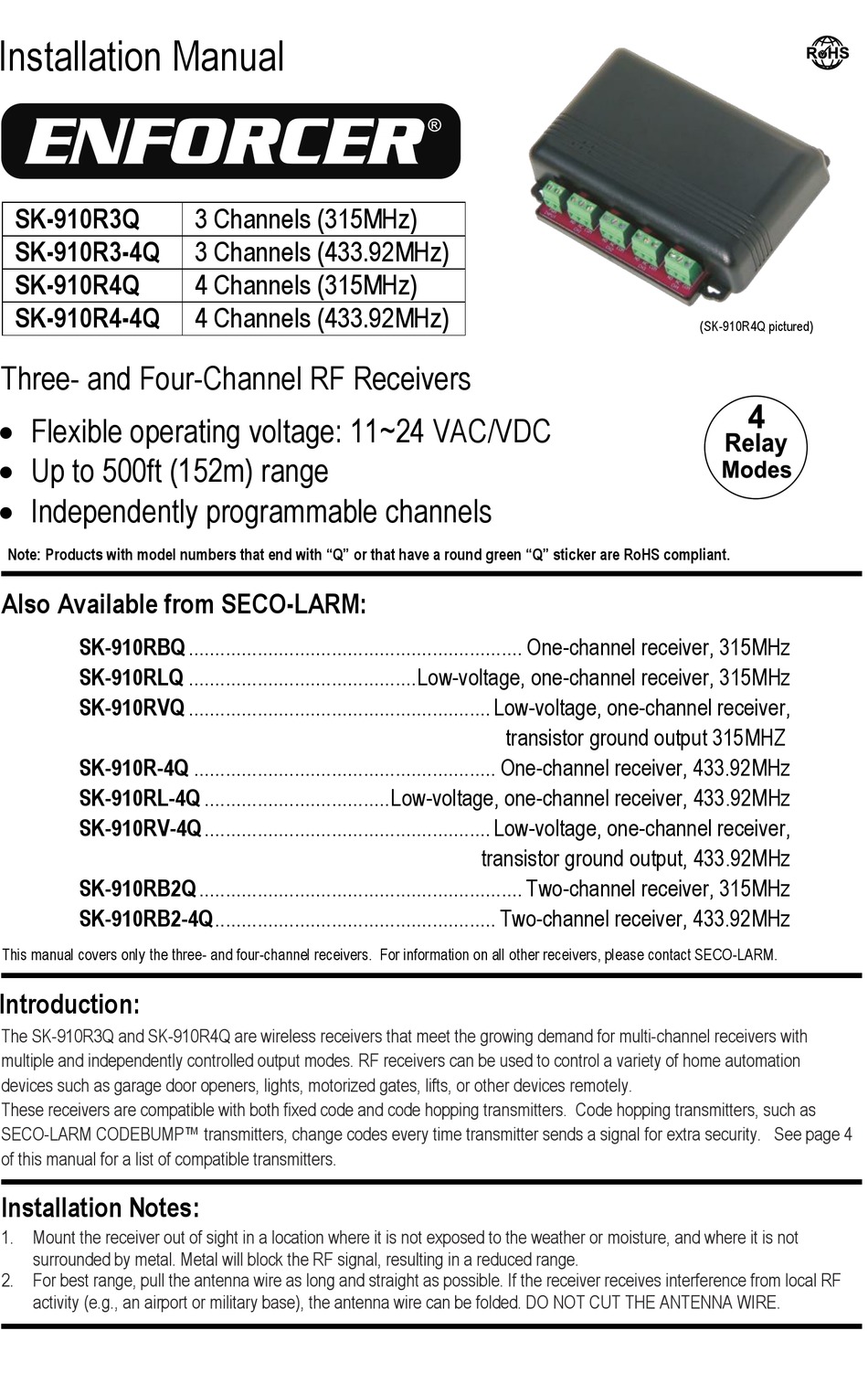

SECO-LARM Enforcer SK-910R3-4Q Installation Manual

Installation Manual
SK-910R3Q
SK-910R3-4Q
SK-910R4Q
SK-910R4-4Q
Three- and Four-Channel RF Receivers
 Flexible operating voltage: 11~24 VAC/VDC
 Up to 500ft (152m) range
 Independently programmable channels
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
Also Available from SECO-LARM:
SK-910RBQ ............................................................... One-channel receiver, 315MHz
SK-910RLQ ........................................... Low-voltage, one-channel receiver, 315MHz
SK-910RVQ ......................................................... Low-voltage, one-channel receiver,
SK-910R-4Q ......................................................... One-channel receiver, 433.92MHz
SK-910RL-4Q ................................... Low-voltage, one-channel receiver, 433.92MHz
SK-910RV-4Q ...................................................... Low-voltage, one-channel receiver,
SK-910RB2Q ............................................................. Two-channel receiver, 315MHz
SK-910RB2-4Q ..................................................... Two-channel receiver, 433.92MHz
This manual covers only the three- and four-channel receivers. For information on all other receivers, please contact SECO-LARM.
Introduction:
The SK-910R3Q and SK-910R4Q are wireless receivers that meet the growing demand for multi-channel receivers with
multiple and independently controlled output modes. RF receivers can be used to control a variety of home automation
devices such as garage door openers, lights, motorized gates, lifts, or other devices remotely.
These receivers are compatible with both fixed code and code hopping transmitters. Code hopping transmitters, such as
SECO-LARM CODEBUMP™ transmitters, change codes every time transmitter sends a signal for extra security. See page 4
of this manual for a list of compatible transmitters.
Installation Notes:
1. Mount the receiver out of sight in a location where it is not exposed to the weather or moisture, and where it is not
surrounded by metal. Metal will block the RF signal, resulting in a reduced range.
2. For best range, pull the antenna wire as long and straight as possible. If the receiver receives interference from local RF
activity (e.g., an airport or military base), the antenna wire can be folded. DO NOT CUT THE ANTENNA WIRE.
3 Channels (315MHz)
3 Channels (433.92MHz)
4 Channels (315MHz)
4 Channels (433.92MHz)
transistor ground output 315MHZ
transistor ground output, 433.92MHz
(SK-910R4Q pictured)
