1- and 2-Channel
RF Receivers
Installation Manual
Model
Channels
SK-910RD1
1
SK-910RD2
2
SK-910RD1-4
1
†
SK-910RD2-4
2
†
*Can simultaneously receive 433.92MHz with optional SK-93ERSD Extended Range Antenna
‡
Can simultaneously receive 315MHz with optional SK-91ERSD Extended Range Antenna
The ENFORCER 1- and 2-Channel RF receivers meet the growing demand for multi-channel
receivers with multiple independently controlled output modes and can be used to remotely control
a variety of devices including garage doors, lights, motorized gates, lifts, or others. Now also dual
frequency, they are even more flexible and compatible with all ENFORCER transmitters of the
same frequencies, including both fixed and code-hopping CODEBUMP™ variants.
• Flexible 10~24 VAC/VDC operating voltage
• Simultaneously receive 315 and 433.92MHz signals with optional Extended Range Antenna
• Range up to 500ft (150m) or up to 1,000ft (300m) with optional Extended Range Antenna
• Independently programmable channels and up to 15 transmitter button codes per channel
• Pushbutton programming, no jumpers to cut or switches to set
• 5 Output modes per channel—timed pulse (0.5~99 sec), timed pulse (1~99 min), toggle, latch,
and follow (validity)
• Compatible with all SECO-LARM transmitters of the same frequency
§
Operating range varies greatly depending on the installation and operating environment

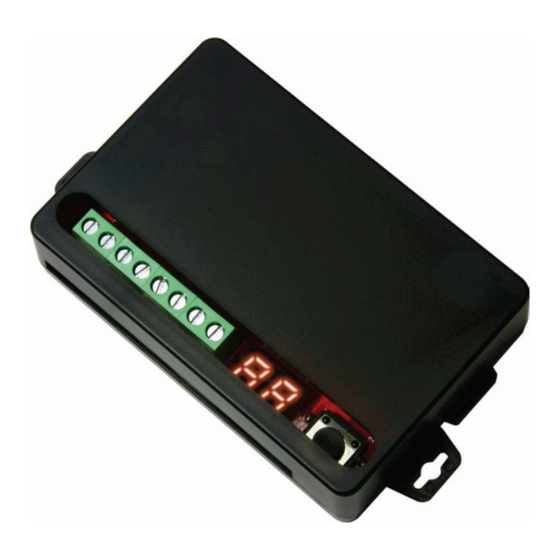

SK-910RD2 / SK-910RD2-4 shown
Frequency
315MHz*
315MHz*
433.92MHz
‡
433.92MHz
‡
Certifications
FCC, IC
FCC, IC
CE
CE
†
Special order
§
Advertisement
Table of Contents
Related Manuals for SECO-LARM ENFORCER SK-910RD1
Summary of Contents for SECO-LARM ENFORCER SK-910RD1
- Page 1 • 5 Output modes per channel—timed pulse (0.5~99 sec), timed pulse (1~99 min), toggle, latch, and follow (validity) • Compatible with all SECO-LARM transmitters of the same frequency § Operating range varies greatly depending on the installation and operating environment...
- Page 2 Slow flashing – in programing mode, shows that the attempted code has previously been learned. Flash twice – indicates exiting programming mode. Flashing – in programming mode, shows the number of codes (0~60) already learned for the selected channel. SECO-LARM U.S.A., Inc.
- Page 3 • The indicator LED will flash a maximum of 15 seconds. If no transmitter button is pressed during this time, the receiver will exit code programming mode, and the LED will turn off. • If a code has already been learned, the indicator LED slowly flashes two dashes. The code will not be learned twice. SECO-LARM U.S.A., Inc.
- Page 4 In programming mode, select the desired channel. While the display is flashing the correct channel, press and hold the selector button 3 seconds or until the LED flashes twice. All codes for the channel will be cleared. *Operating range may vary greatly depending on the installation and operating environment. SECO-LARM U.S.A., Inc.
- Page 5 WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
