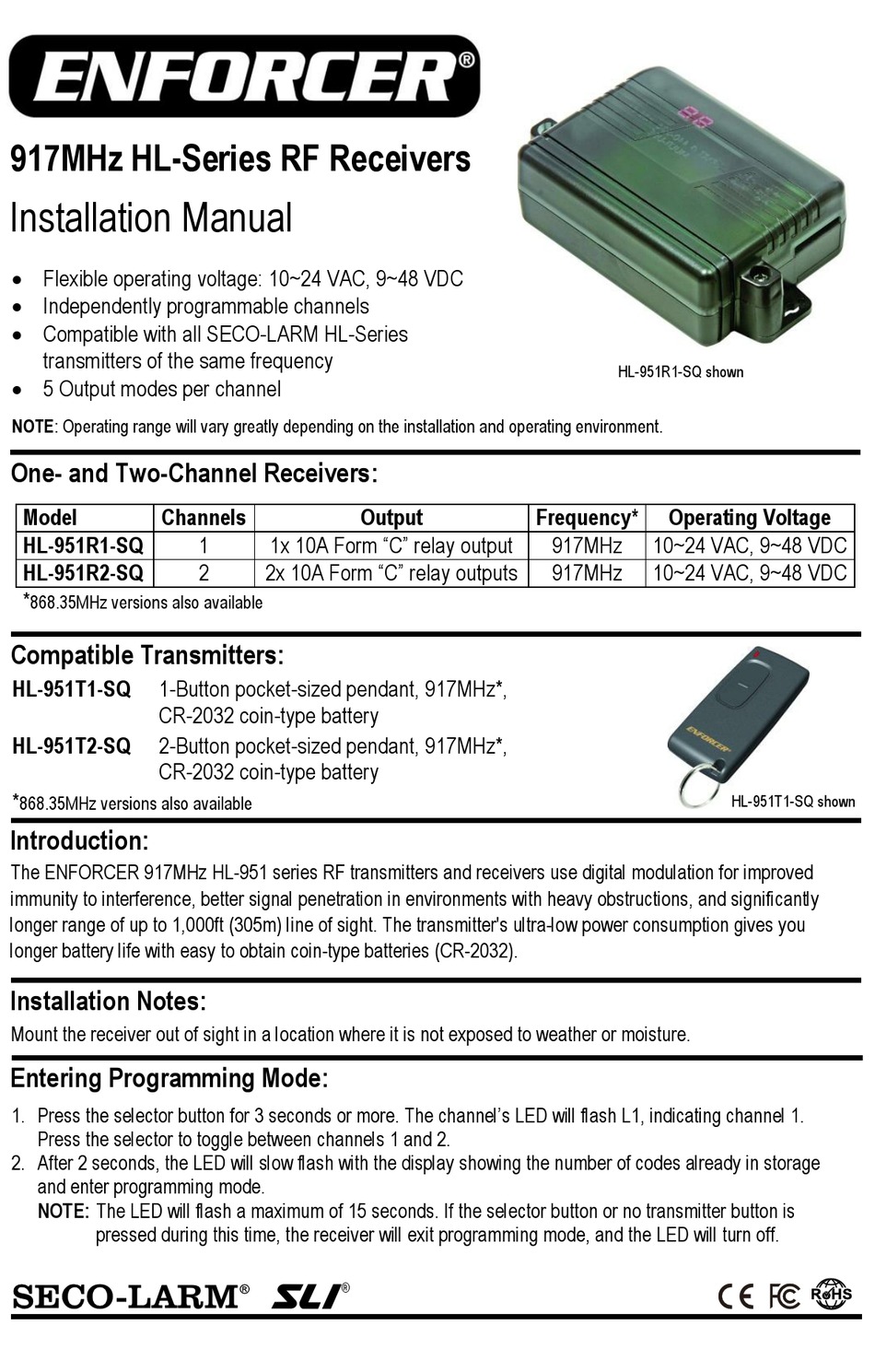

917MHz HL-Series RF Receivers
Installation Manual
Flexible operating voltage: 10~24 VAC, 9~48 VDC
Independently programmable channels
Compatible with all SECO-LARM HL-Series
transmitters of the same frequency
5 Output modes per channel
NOTE: Operating range will vary greatly depending on the installation and operating environment.
One- and Two-Channel Receivers:
Model
Channels
HL-951R1-SQ
HL-951R2-SQ
*
868.35MHz versions also available
Compatible Transmitters:
HL-951T1-SQ
1-Button pocket-sized pendant, 917MHz*,
CR-2032 coin-type battery
HL-951T2-SQ
2-Button pocket-sized pendant, 917MHz*,
CR-2032 coin-type battery
*
868.35MHz versions also available
Introduction:
The ENFORCER 917MHz HL-951 series RF transmitters and receivers use digital modulation for improved
immunity to interference, better signal penetration in environments with heavy obstructions, and significantly
longer range of up to 1,000ft (305m) line of sight. The transmitter's ultra-low power consumption gives you
longer battery life with easy to obtain coin-type batteries (CR-2032).
Installation Notes:
Mount the receiver out of sight in a location where it is not exposed to weather or moisture.
Entering Programming Mode:
1. Press the selector button for 3 seconds or more. The channel's LED will flash L1, indicating channel 1.
Press the selector to toggle between channels 1 and 2.
2. After 2 seconds, the LED will slow flash with the display showing the number of codes already in storage
and enter programming mode.
NOTE: The LED will flash a maximum of 15 seconds. If the selector button or no transmitter button is
pressed during this time, the receiver will exit programming mode, and the LED will turn off.
Output
1
1x 10A Form "C" relay output
2
2x 10A Form "C" relay outputs
® ®

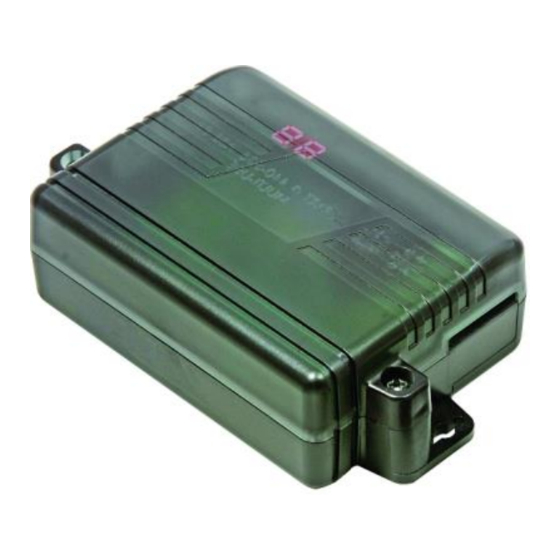

HL-951R1-SQ shown
Frequency*
Operating Voltage
917MHz
10~24 VAC, 9~48 VDC
917MHz
10~24 VAC, 9~48 VDC
HL-951T1-SQ shown
Advertisement
Table of Contents
Related Manuals for SECO-LARM ENFORCER HL Series
Summary of Contents for SECO-LARM ENFORCER HL Series
- Page 1 917MHz HL-Series RF Receivers Installation Manual Flexible operating voltage: 10~24 VAC, 9~48 VDC Independently programmable channels Compatible with all SECO-LARM HL-Series transmitters of the same frequency HL-951R1-SQ shown 5 Output modes per channel NOTE: Operating range will vary greatly depending on the installation and operating environment.
- Page 2 (P5) (P4) respectively NOTE: For a diagram of the PC board, including the location of 5. When complete, wait 15 seconds for the receiver to automatically exit programming mode. the function switch, please see Overview, pg. 3. SECO-LARM U.S.A., Inc.
- Page 3 0. 0. channel P.1. In output programming mode – number indicates the current mode In output programming mode when either P1 or P5 has been selected – number indicates the output time in 0.1. seconds or minutes, respectively SECO-LARM U.S.A., Inc.
- Page 4 WARRANTY: one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed...
