SECO-LARM Enforcer SK-910 Series Quick Start Manual

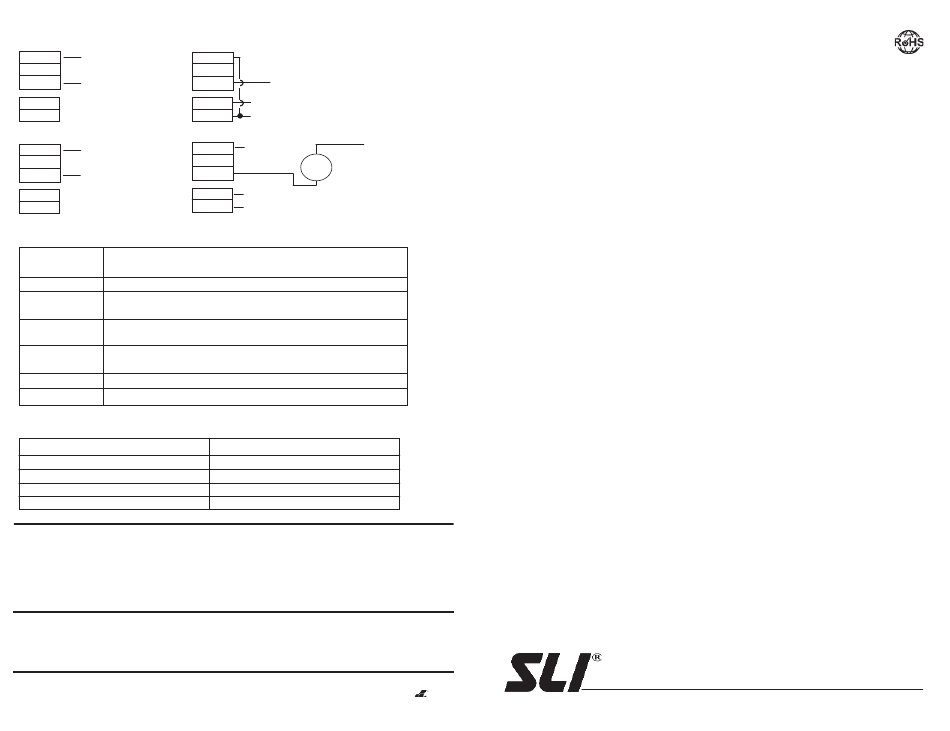

Typical Applications:

Positive Output: 12VDC receiver power driving a 12VDC appliance:
COM
Positive Power Source
NC
NO
Positive Power Output
-
}
Power for SK-910RQ
+
12VDC receiver power input, 24VAC output driving a motor
Negative Output:
COM
Negative Power Source
NC
NO
Negative Power Output
-
}
Power for SK-910RQ
+

General Specifications

Operating Frequency: 315MHz ( SK-910RQ, SK-910RLQ, SK-910R2Q, SK-910RVQ )
433.92MHz ( SK-910R-4Q, SK-910RL-4Q, SK-910R2-4Q, SK-910RV-4Q )
Memory Capacity: 15 transmitter button codes per channel
Operating Voltage: 11.2 ~ 24VDC/VAC (for SK-910RQ / SK-910R-4Q / SK-910R2Q / SK-910R2-4Q)
5VDC ~ 13VDC (for SK-910RLQ / SK-910RL-4Q / SK-910RVQ / SK-910RV-4Q only)
Operating Current: 8 mA @ 12VDC (standby), 30mA/channel @ 12VDC (activated)
70mA @ 6VDC (activated), (SK-910RLQ / SK-910RL-4Q only)
Relay Contact Rating: Form 'C' type; 10A @ 24VDC or 120VAC per channel
(Transistor ground 5A output for SK-910RVQ / SK-910RV-4Q only)
Connectors: Screw Terminals, +, –, with N.O., N.C., and COM per channel
Dimensions: 3.25" x 2.7" x 1.1" (83 x 68 x 27.5 mm)

Compatible Transmitters

315 MHz
SK-919TD1SQ 1-button, Fixed Code
SK-919TD2AQ 2-button, Fixed Code
SK-917T3AQ 3-button, Code Hopping
SK-917T2AQ 2-button, Code Hopping
WARRANTY:
This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for a period of one (1)
year from the date of sale to the original consumer customer. SECO-LARM's obligation is limited to the repair or replacement of any defective part if the unit is
returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or alteration, improper or
abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes
other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to replacement or repair only, at SECO-LARM's option. In no event
shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any kind to the purchaser or anyone else.
NOTICE:
The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is one
of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is
also not responsible for misprints or typographical errors.
Copyright © 2008 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written
permission of SECO-LARM.
SECO-LARM SECO-LARM C - C -L U.S.A., Inc. U.S.A., Inc. ., ., I I
®
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
COM
NC
12VDC O/P
NO
-
GND
}
Power for SK-910RQ
+ +12VDC
24VAC (1) Input
COM
24VAC (2)
2
NC
24VAC (1) Output Motor
NO
1
-
GND
+
+12VDC
433.92MHz
SK-939TS1SQ 1-button, Fixed Code
SK-939TS2AQ 2-button, Fixed Code
SK-937TS2AQ 2-button, Code Hopping
SK-937TS3AQ 3-button, Code Hopping
FILE: D\DTP\MANUAL\MuSK910R_0806.pmd
Website: www.seco-larm.com
E-mail: sales@seco-larm.com
ENFORCER
(Validity, 1-sec. Momentary, 4-sec. Momentary , Toggle)
Model
SK-910RQ ........ One-channel receiver, 315MHz
SK-910RLQ ....... Low-voltage, one-channel receiver, 315MHz
SK-910R2Q ...... Two-channel receiver, 315MHz
SK-910RVQ ...... Low-voltage, one-channel receiver,
SK-910R-4Q ..... One-channel receiver, 433.92MHz
SK-910RL-4Q ... Low-voltage, one-channel receiver, 433.92MHz
SK-910R2-4Q ... Two-channel receiver, 433.92MHz
SK-910RV-4Q ... Low-voltage, one-channel receiver,
ORDER PART# 762-091-11%
PITSW1
Note: Products with a model number that ends with "Q" or have a green "Q" sticker are RoHS compliant.
SK-910 Series RF Receivers
with 4 output Modes
transistor ground output, 315 MHz
transistor ground output, 433.92 MHz
®
