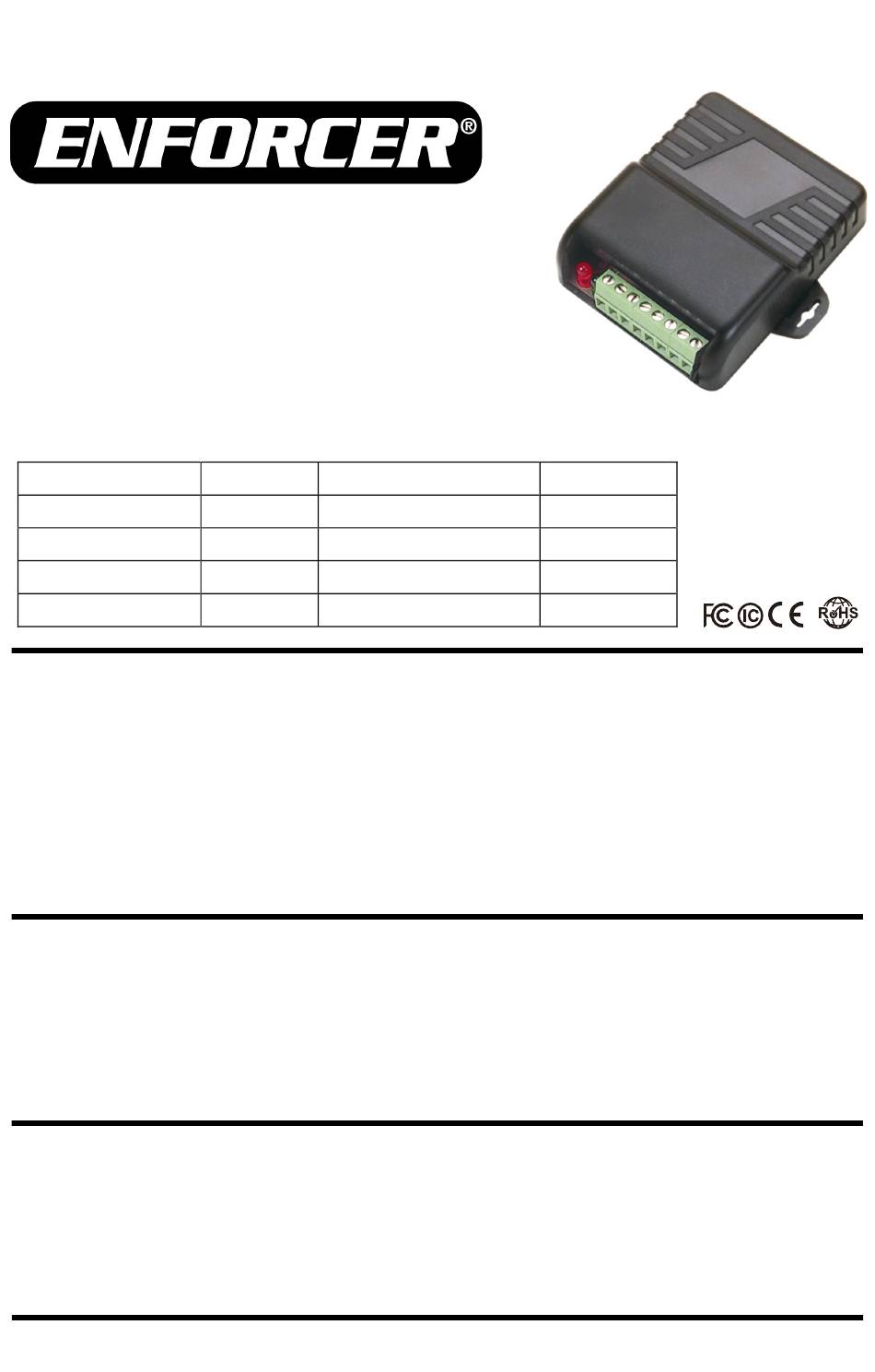

Installation Manual
One- and Two-Channel RF Receivers
• Flexible operating voltage: 11~24 VAC/VDC
• Independently programmable channels
• Compatible with all SECO-LARM transmitters
of the same frequency
• 5 Relay output functions
NOTE: Operating range will vary greatly depending on the installation and operating environment.
Model
SK-910RBQ
SK-910RB-4Q*
SK-910RB2Q
SK-910RB2-4Q*
Also Available from SECO-LARM:
SK-910R3Q ........................... Three-channel receiver, 10A Form "C" relays, 315MHz
SK-910R4Q ............................. Four-channel receiver, 10A Form "C" relays, 315MHZ
SK-910RAQ ......................... One-channel mini-receiver, 3A Form "C" relay, 315MHz
SK-910RAVQ ........ One-channel mini-receiver, 5A transistor ground output, 315MHz
SK-910RAV2Q .... Two-channel mini-receiver, 3A transistor ground outputs, 315MHz
NOTE: This manual does not cover the three- and four-channel receivers and mini-receivers listed here. All receivers are also available in
433.92MHz versions. Please contact SECO-LARM or visit www.seco-larm.com for model numbers and more information.
Introduction:
The SK-910RBQ series of wireless receivers meet the growing demand for receivers with multiple,
independently-controlled output functions. These RF receivers are compatible with both code
hopping and fixed code transmitters (see pg. 4 for a note about compatible transmitters and visit
www.seco-larm.com for a full list). The receivers can be used to remotely control a variety of home
automation devices such as garage door openers, lights, motorized gates, lifts, or other devices.
Installation Notes:
1. Mount the receiver out of sight in a location where it is not exposed to weather or moisture, and
where it is not surrounded by metal. Metal will block the RF signal, resulting in a reduced range.
2. For best range, pull the antenna wire as long and straight as possible. If the receiver receives
interference from local RF activity (e.g., an airport or military base), the antenna wire can be folded.
IMPORTANT: DO NOT CUT THE ANTENNA WIRE.
Channels
1
10A Form "C" relay
1
10A Form "C" relay 433.92MHz
2
10A Form "C" relay
2
10A Form "C" relay 433.92MHz
Output
Frequency

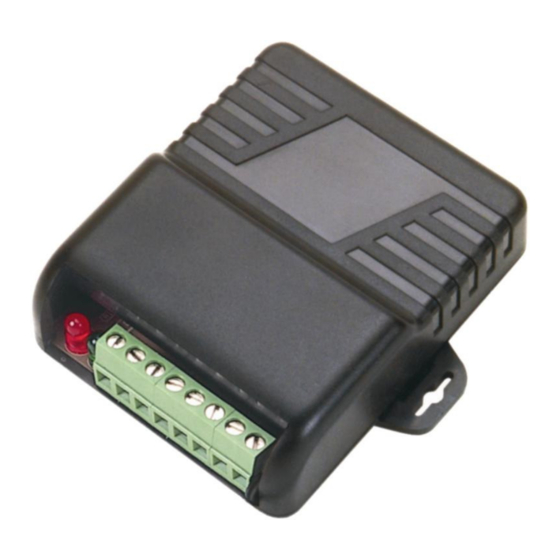

SK-910RB2Q shown
315MHz
315MHz
*
