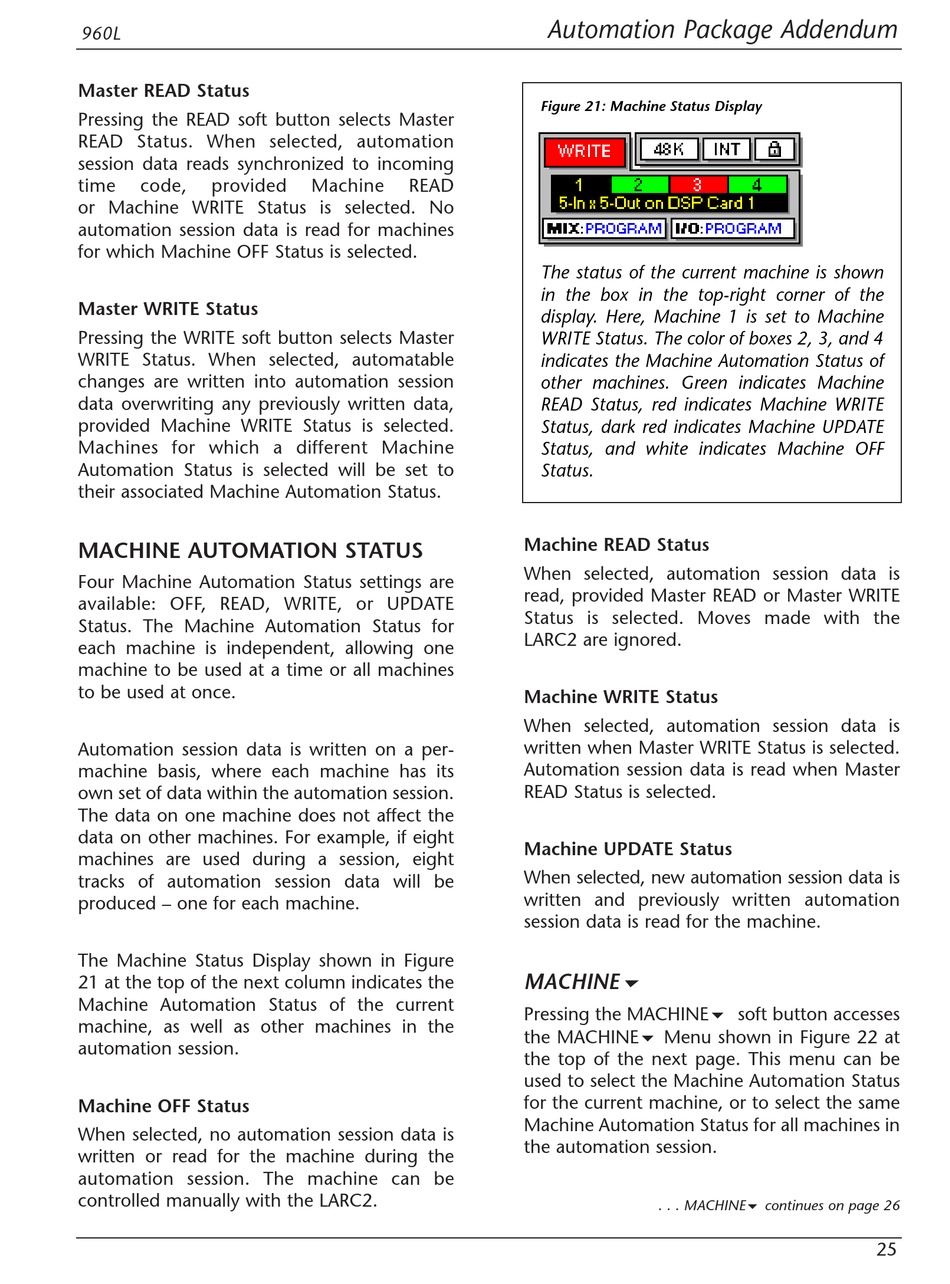

960L

Master READ Status

Pressing the READ soft button selects Master
READ Status. When selected, automation
session data reads synchronized to incoming
time code, provided
or Machine WRITE Status is selected. No
automation session data is read for machines
for which Machine OFF Status is selected.

Master WRITE Status

Pressing the WRITE soft button selects Master
WRITE Status. When selected, automatable
changes are written into automation session
data overwriting any previously written data,
provided Machine WRITE Status is selected.
Machines for which a different Machine
Automation Status is selected will be set to
their associated Machine Automation Status.

MACHINE AUTOMATION STATUS

Four Machine Automation Status settings are
available: OFF, READ, WRITE, or UPDATE
Status. The Machine Automation Status for
each machine is independent, allowing one
machine to be used at a time or all machines
to be used at once.
Automation session data is written on a per-
machine basis, where each machine has its
own set of data within the automation session.
The data on one machine does not affect the
data on other machines. For example, if eight
machines are used during a session, eight
tracks of automation session data will be
produced – one for each machine.
The Machine Status Display shown in Figure
21 at the top of the next column indicates the
Machine Automation Status of the current
machine, as well as other machines in the
automation session.

Machine OFF Status

When selected, no automation session data is
written or read for the machine during the
automation session. The machine can be
controlled manually with the LARC2.

Machine

READ
Automation Package Addendum
Figure 21: Machine Status Display
The status of the current machine is shown
in the box in the top-right corner of the
display. Here, Machine 1 is set to Machine
WRITE Status. The color of boxes 2, 3, and 4
indicates the Machine Automation Status of
other machines. Green indicates Machine
READ Status, red indicates Machine WRITE
Status, dark red indicates Machine UPDATE
Status, and white indicates Machine OFF
Status.

Machine READ Status

When selected, automation session data is
read, provided Master READ or Master WRITE
Status is selected. Moves made with the
LARC2 are ignored.

Machine WRITE Status

When selected, automation session data is
written when Master WRITE Status is selected.
Automation session data is read when Master
READ Status is selected.

Machine UPDATE Status

When selected, new automation session data is
written and previously written automation
session data is read for the machine.
MACHINE !
Pressing the MACHINE! soft button accesses
the MACHINE! Menu shown in Figure 22 at
the top of the next page. This menu can be
used to select the Machine Automation Status
for the current machine, or to select the same
Machine Automation Status for all machines in
the automation session.
. . . MACHINE! continues on page 26
25
