Sanus Systems SSMK1 Manual

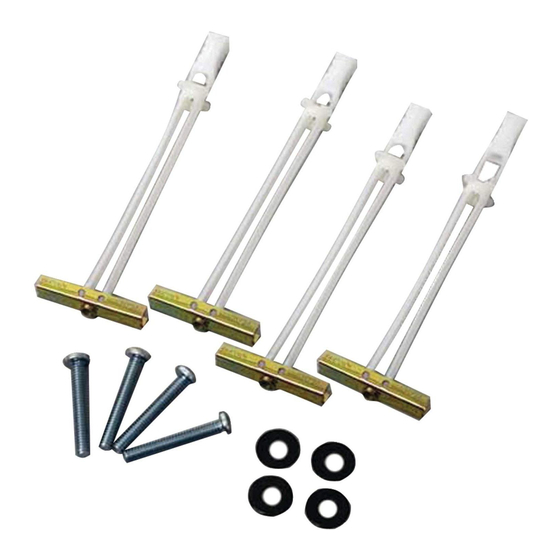

Thank you for choosing the Sanus Systems Steel Stud Mounting Kit. The SSMK1 is designed to be used in conjunction
EN
with the following Sanus Systems wall mounts:
Mount
VMPL250, VMPL50
VMPL, VMPL2
VMPL3
This product contains small items that could be a choking hazard if swallowed. Keep these items away
from young children!
This product is designed for use in steel stud walls only! Studs must be at least 2x4 / 25ga, and the wall must be
capable of supporting up to five times the weight of the monitor and mount combined. If back side of wall is
unfinished, drywall must be installed to a minimum of one stud left and right of the stud(s) being used to install
the mount. Drywall must be a minimum of 1/2" thick on each side of the studs, and a minimum clearance of 1
7/8 (48mm) behind the wall is required. This product must be centered on the studs.
If you have any doubts about the ability of the wall to support the total weight of the monitor and mount,
contact Sanus Systems Customer Service, or a qualified contractor.
Stud type and structural strength must conform to the North American
Specification for the Design of Cold-Formed Steel Structural Members.
[362 S 125 18, C-Shape, S - Stud Section]
Drywall must be secured to studs with screws 12" on center.
Do not use this product for any purpose not explicitly specified by Sanus Systems. Improper installation may
cause property damage or personal injury. If you do not understand these directions, or have doubts about the
safety of the installation, contact Sanus Systems Customer Service or call a qualified contractor. Sanus Systems
is not liable for damage or injury caused by incorrect mounting, assembly, or use.
Customer Service: 1-800-359-5520 • info@sanus.com • www.sanus.com
SSMK1
Maximum weight capacity
59 kg (130 lbs)
79 kg (175 lbs)
127 kg (280 lbs)
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA
(6901-300182 <01>)
WARNING
CAUTION
CAUTION
Maximum size capacity
50 in (127 cm)
60 in (152 cm)
84 in (213 cm)
