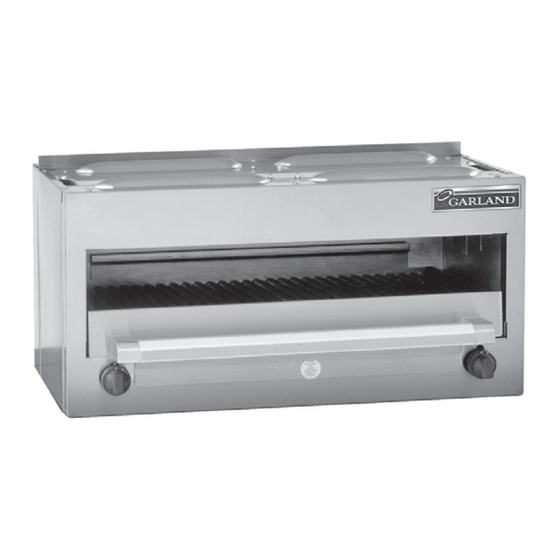

Master sentry gas-operated salamander

Advertisement

INSTALLATION AND
OPERATION MANUAL
MASTER SENTRY
GAS-OPERATED
SALAMANDER

FOR YOUR SAFETY:

DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS OR
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
WARNING:
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY,
OR DEATH. READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT
Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent
using genuine Garland replacement parts . Garland will have no obligation with respect to any product that has been
improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation
instructions provided with the product, or any product that has its serial number defaced, obliterated or removed,
or which has been modified or repaired using unauthorized parts or by unauthorized service agents .
For a list of authorized service agents, please refer to the Garland web site at http://www .garland-group .com .
The information contained herein, (including design and parts specifications), may be superseded and is subject
to change without notice .
GARLAND COMMERCIAL INDUSTRIES
185 East South Street
Freeland, Pennsylvania 18224
Phone: (570) 636-1000
Fax: (570) 636-3903
Part # P143 (11/10/08)
APPLIANCE
PLEASE READ ALL SECTIONS OF THIS MANUAL
AND RETAIN FOR FUTURE REFERENCE .
THIS PRODUCT HAS BEEN CERTIFIED AS
COMMERCIAL COOKING EQUIPMENT AND
MUST BE INSTALLED BY PROFESSIONAL
PERSONNEL AS SPECIFIED .
For Your Safety:
Post in a prominent location, instructions to be
followed in the event the user smells gas . This
information shall be obtained by consulting
your local gas supplier .
GARLAND COMMERCIAL RANGES, LTD .
1177 Kamato Road, Mississauga, Ontario L4W 1X4
CANADA
Phone: 905-624-0260
Fax: 905-624-5669
© 2005 Garland Commercial Industries, Inc .
Enodis U
Swallowfi el
Telephone:
Fax: 081-84

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSTSR16-280 and is the answer not in the manual?

Questions and answers

Summary of Contents for Garland MSTSR16-280

  • Page 1: For Your Safety

    Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent using genuine Garland replacement parts . Garland will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorized parts or by unauthorized service agents .
  • Page 2: Important Information

    IMPORTANT INFORMATION WARNING: This product contains chemicals known to the state of California to cause cancer and/or birth defects or other reproductive harm. Installation and servicing of this product could expose you to airborne particles of glass wool/ceramic fibers. Inhalation of airborne particles of glass wool/ceramic fibers is known to the state of California to cause cancer.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT INFORMATION . . . . . . . . . . . . . 2 COMMISSIONING . . . . . . . . . . . . . . . . . . . . . . 8 Burner Adjustments .
  • Page 4: Dimensions And Specifications

    DESCRIPTION MSTSRC 864 mm wide x 414 mm high, infra-red counter mount salamander . MSTSR16-280 864 mm wide x 1089 mm high, infra-red restaurant range mount salamander . MSTSR16 864 mm wide x 1089 mm high, infra-red heavy duty range mount salamander .
  • Page 5: Table A: Exterior Dimensions

    DIMENSIONS AND SPECIFICATIONS Continued Table A: Exterior Dimensions HEIGHT WIDTH DEPTH WEIGHT MODEL MSTSRC 16 .513 20 .25 70 .3 MSTSR16 16 .513 20 .25 95 .3 Table B: Gas Flow Rate Per Model NATURAL GAS (m 3 /h) PROPANE GAS (kg/h) MODEL G20 @ 20mbar G31 @ 37/50 mbar...
  • Page 6: Table F: Pilot Flame Length

    . tray . It contains all of the pertinent information required by Your Garland dealer is well qualified to provide this service . the installer . Periodic inspections by your dealer or a qualified service...
  • Page 7: Installation

    INTRODUCTION continued For proper operation, the Fuel information on the data plate of you new equipment must match your fuel supply . INSTALLATION General Installation Siting 1 . Carefully remove unit from carton . All packing material The unit should be installed on a firm, smooth and level must be removed from the unit .
  • Page 8: Commissioning

    INSTALLATION Continued Gas Connection All fixed ( non mobile ) appliances MUST be fitted with a manual gas cock upstream of the appliance to provide a The type of gas and the supply pressure that the equipment means of isolation for servicing or cleaning purposes . A was set up for at the factory is noted on the data plate and on union or similar means of disconnection must be provided the packaging .
  • Page 9: Operation

    COMMISSIONING Continued When all the settings have been checked, remove the Pilot U-gauge manometer, replace the pressure test point screw Adjuster and the front panel . Hand these instructions to the user or purchaser for retention Low Flame and instruct them in the efficient and safe operation of the Adjuster Test Point appliance .
  • Page 10: Cleaning And Maintenance

    OPERATION continued Operating Controls IGNITION IGNITION CLEANING AND MAINTENANCE Daily Cleaning Stainless Steel A regular daily cleaning schedule should be followed to Stainless steel should be cleaned using a mild detergent, a maintain your broiler’s efficient performance and minimize soft cloth and hot water . If is necessary to use a non-metallic service calls .
  • Page 11: Servicing

    SERVICING To ensure efficient and safe operation of the appliance it opening . Check the burner tiles and wire mesh for soot or is recommended that servicing be carried out at regular blocked ports . Clean with a damp cloth if required . interval, the frequency of which will vary, depending on the Gas Taps installation .
  • Page 12: Conversion Instructions

    . Gas adjustment label (One required per unit) . Continuous product improvement is a Garland policy, therefore specifications and design are subject to change If any of the required parts are missing, contact your Garland without notice . dealer before attempting to carry out the conversion .
  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Burner flame too large . Incorrect setting pressure or injector . Check setting pressure and injector . Burner flame soft - yellow tip . Insufficient primary air . Check primary aeration for blockage . Delayed Ignition Pilot burner flame too small .
  • Page 14 Page 14 Part # P143 (11/10/08)
  • Page 15 Part # P143 (11/10/08) Page 15...
