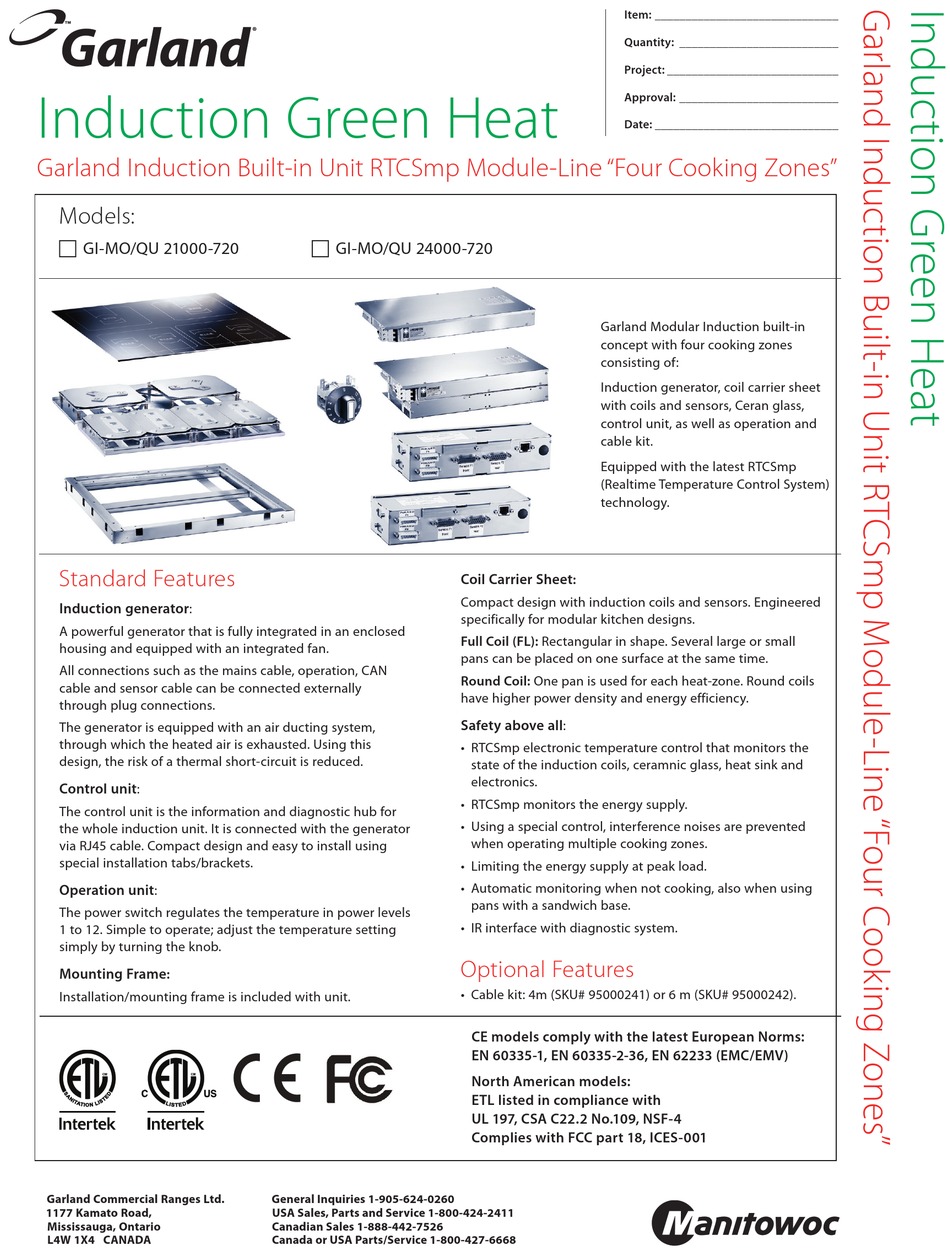

Garland GI-MO/QU 21000-720 Information Sheet

Induction Green Heat
Garland Induction Built-in Unit RTCSmp Module-Line "Four Cooking Zones"
Models:
 GI-MO/QU 21000-720

Standard Features

Induction generator
:
A powerful generator that is fully integrated in an enclosed
housing and equipped with an integrated fan.
All connections such as the mains cable, operation, CAN
cable and sensor cable can be connected externally
through plug connections.
The generator is equipped with an air ducting system,
through which the heated air is exhausted. Using this
design, the risk of a thermal short-circuit is reduced.
Control unit
:
The control unit is the information and diagnostic hub for
the whole induction unit. It is connected with the generator
via RJ45 cable. Compact design and easy to install using
special installation tabs/brackets.
Operation unit
:
The power switch regulates the temperature in power levels
1 to 12. Simple to operate; adjust the temperature setting
simply by turning the knob.
Mounting Frame
:
Installation/mounting frame is included with unit.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 GI-MO/QU 24000-720
General Inquiries 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
Garland Modular Induction built-in
concept with four cooking zones
consisting of:
Induction generator, coil carrier sheet
with coils and sensors, Ceran glass,
control unit, as well as operation and
cable kit.
Equipped with the latest RTCSmp
(Realtime Temperature Control System)
technology.
Coil Carrier Sheet
:
Compact design with induction coils and sensors. Engineered
specifically for modular kitchen designs.
Full Coil (FL): Rectangular in shape. Several large or small
pans can be placed on one surface at the same time.
Round Coil: One pan is used for each heat-zone. Round coils
have higher power density and energy efficiency.
Safety above all
:
• RTCSmp electronic temperature control that monitors the
state of the induction coils, ceramnic glass, heat sink and
electronics.
• RTCSmp monitors the energy supply.
• Using a special control, interference noises are prevented
when operating multiple cooking zones.
• Limiting the energy supply at peak load.
• Automatic monitoring when not cooking, also when using
pans with a sandwich base.
• IR interface with diagnostic system.

Optional Features

• Cable kit: 4m (SKU# 95000241) or 6 m (SKU# 95000242).
CE models comply with the latest European Norms:
EN 60335-1, EN 60335-2-36, EN 62233 (EMC/EMV)
North American models:
ETL listed in compliance with
UL 197, CSA C22.2 No.109, NSF-4
Complies with FCC part 18, ICES-001
