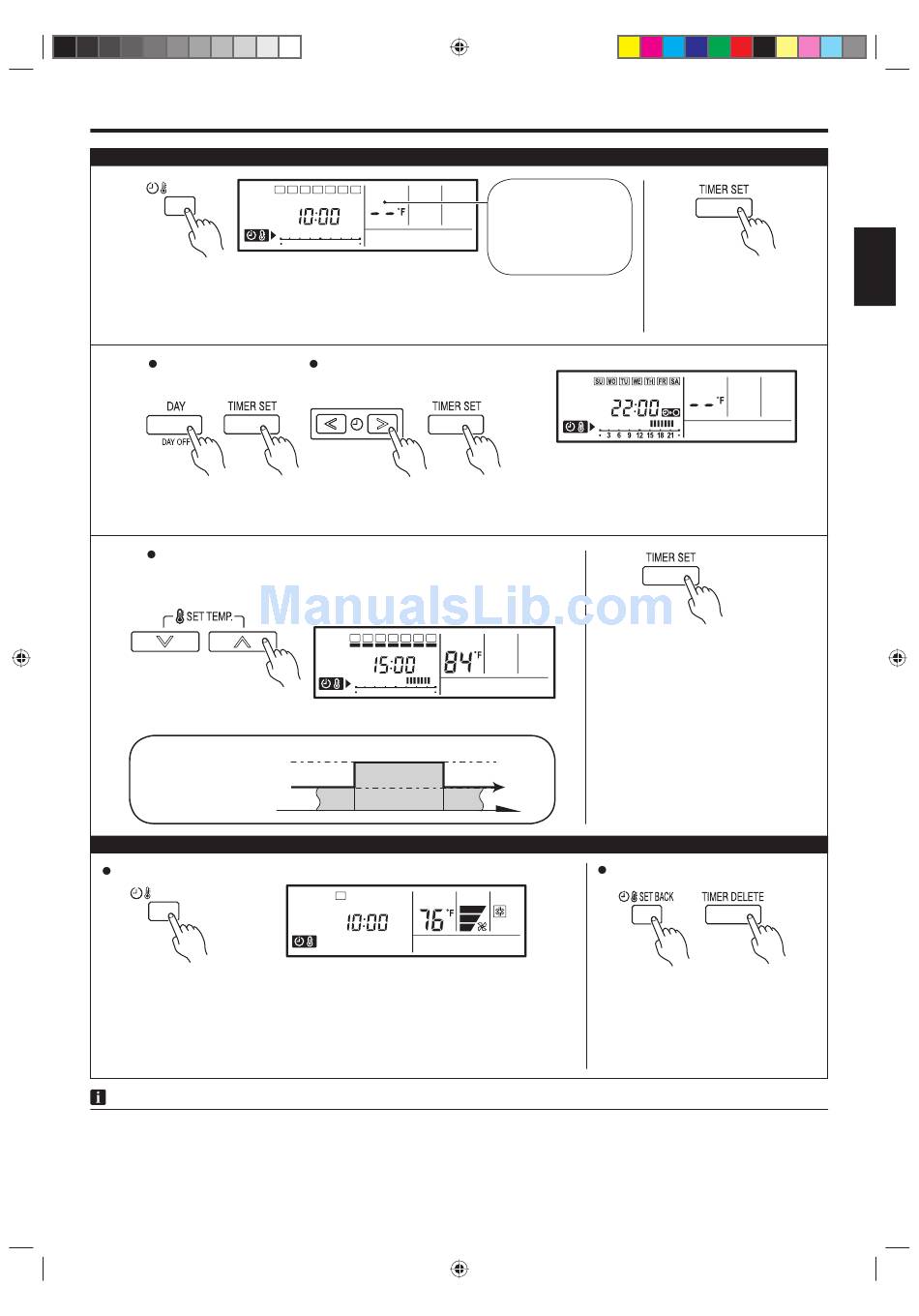

TEMPERATURE SET BACK TIMER
Temperature SET BACK timer setting
1
SET BACK
Press the SET BACK button to change to the SET BACK con-
fi rmation display.
The SET BACK operating time and the set temperature will
be displayed.
3
Day setting
1
Follow the same procedures to set the operating time as those for the weekly timer. The TIMER DELETE button is
also used as described in the procedures for the weekly timer.
4
Temperature setting
SET BACK temperature
Normal temperature
Temperature SET BACK timer operation
To start
SET BACK
Press the SET BACK button. The SET BACK confi rmation display appears
for 5 seconds, and then the timer starts automatically.
NOTES
• The SET BACK timer only changes the set temperature, it cannot be used to start or stop air conditioner operation.
• The SET BACK timer can be set to operate up to 2 times per day but only 1 temperature setting can be used.
• The SET BACK timer can be used together with the ON, OFF , and weekly timer functions.
• The SET BACK operating time is displayed only in the SET BACK confi rmation display. (Refer to step 1 for the SET
BACK confi rmation display.)
9374343072-04_OM.indb Sec1:10 9374343072-04_OM.indb Sec1:10
SU MO TU WE TH FR SA
3 6 9 12 15 18 21
Operating time setting
2
3
Press the SET TEMP . buttons to set the
temperature. (The temperature setting
range is the same as the range for the
operation mode.)
SU MO TU WE TH FR SA
3 6 9 12 15 18 21
ex. Operating time 15:00–22:00
84˚F
ON OFF
76˚F
SU MO TU WE TH FR SA
ex. Display during SET BACK timer operation
(The operating time will not be displayed.)
If there is no existing
SET BACK tempera-
ture setting, "- -" will
be displayed for the
temperature.
4 ex. When setting all days together
5
Repeat steps
Press the TIMER SET button for
2 seconds or more to complete
the temperature SET BACK
timer settings.
76˚F
To cancel
Press the SET BACK button, and then
press the TIMER DELETE button while
the SET BACK confi rmation display is
displayed. Even if the SET BACK but-
ton is pressed again, the SET BACK
timer will be cancelled.
2
Press the TIMER SET button
for 2 seconds or more.
3 4
and .
2
1
En-10
