Page 1: Installation Manual

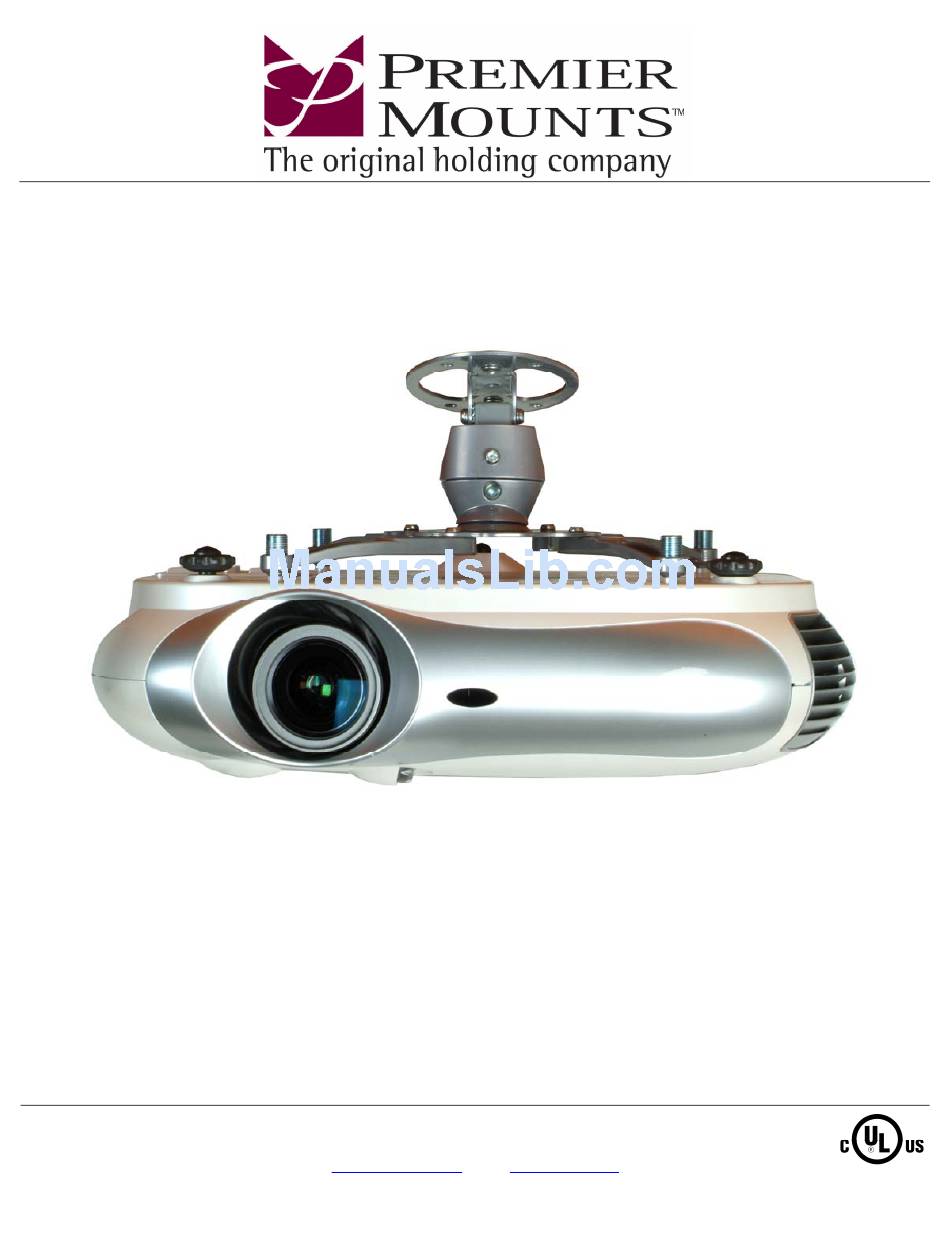

INSTALLATION MANUAL Polaris™ Universal Projector Mount Model: MAG Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com 9530-001-011-07... -
Page 2: Table Of Contents
Table of Contents Parts List ................................- 3 - Installation Tools ..............................- 3 - Features ................................- 4 - Selecting the Proper Mounting Hardware......................- 4 - Attaching the Mount ............................- 5 - Single Mounting Point Installation ........................- 5 - Ceiling Installation..............................- 6 - Concrete Mounting .............................- 6 - Adjusting the Projector ............................- 7 - Troubleshooting Procedures ..........................- 7 -... -
Page 3: Parts List
This mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800-368-9700). NOTE: Please review all WARNING and CAUTION statements (see Page 8) before beginning the installation of the MAG Mount. -
Page 4: Features
Features Congratulations on the purchase of your new Premier Mounts Polaris™ Universal Projector Mount. The projector mount can be configured for ceiling installations. The Polaris™ features our exclusive MagnaGuide™ Technology which assists the installer for quicker installation times and peace of mind. -
Page 5: Attaching The Mount
Attaching the Mount Unpack the MAG Mount and review any WARNING statements that apply to the installation. Select the desired location for the MAG Mount. 1. Locate the mounting points on the bottom of the projector 2. Attach the appropriate number of mounting legs to the (see arrows above for mounting point recognition). -
Page 6: Ceiling Installation
Ceiling Installation 1. Mounting Surfaces NOTE: Use a 1/8” drill bit to pre-drill the mounting holes before securing the wood screws (supplied). Wood studs: Where denoted with the letter ‘A’, mark these locations for wood stud installation. NOTE: Use a masonry bit to pre-drill the mounting holes in the concrete surface. -
Page 7: Adjusting The Projector
Adjusting the Projector After the projector has been installed, the projector must then be adjusted. To adjust the projector: Loosen the M5 set screw using the M5 Allen wrench (both sides). Adjust the projector to the correct position. Firmly grasp the projector in both hands, and tilt either forward or backward M4 x 12mm Security Screw and Star Washer... -
Page 8: Warranty
Limited Lifetime Warranty All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury. Any modification to the existing mount will void the manufacturers’...
