Summary of Contents for Premier Mounts PSD-VHSA
- Page 1 INSTALLATION MANUAL PROJECTOR MOUNT MODEL PSD-VHSA 3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888 VISIT US AT WWW.PREMIERMOUNTS.COM...

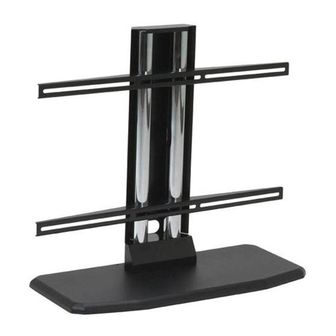

- Page 2 It supports a heavy display at its center of gravity. Our floor stands DO NOT include mounts. You will need to order the appropriate PSM or CTM series mount for your plasma in order to complete the system. Contents Safety & precautions PSD-VHSA diagrams Installing the height adapter (PP-SPA) adapter Measurements Securing the back plate...
-
Page 3: Safety And Precautions
A suitable floor or tabletop must always support the weight or load of the plasma. Always confirm the weight load of the installation structure before installing the PSD-VHSA stand. Do not install in locations where there is vibration, movement or danger of impact. Failure to do so could result in plasma cracking or tipping over from the floor or tabletop causing damage to the plasma and injury. -
Page 4: Mount Diagrams
Mount Diagrams PSD-VHSA MATERIAL: 4 (ga) P & O base plate & 2" (dia) tubing COLOR: Sinterflex Side 14.522 6.000 4.500 4.500 Ø2.375 3.023 PP-SPA adapter - 4 - 2" Tubing Cable access point PP-SPA Height adapter Base plate Table top mounting points 4.374... - Page 5 NOTE: Refer to the PSM or CTM series installation instructions to secure the mounting bracket to the plasma display. Set the PSD-VHSA on the floor and loosely install the PP-SPA adapter over the tubes flat side facing out, attach the two (2) M8 x 10 socket head screws to the adapter and slowly drop it to all the way until it touches the base.
- Page 6 Measuring the plasma Step 3 With the plasma display inverted measure and find the center of the plasma display. Measure from the top of the base plate to the center of the PP-SPA and lock the height by tightening the two (2) M8 socket head screws (supplied) to the poles. Plasma Measuring tape Measuring tape...
- Page 7 Mounting Thank you for choosing PREMIER MOUNTS for your installation needs. brackets If you have any questions please contact PREMIER MOUNTS information is shown on the front of this page. CAUTION: The mounts must have all four (4) tabs engaged and properly interlocked.
