Summary of Contents for Premier Mounts PBM-UNI

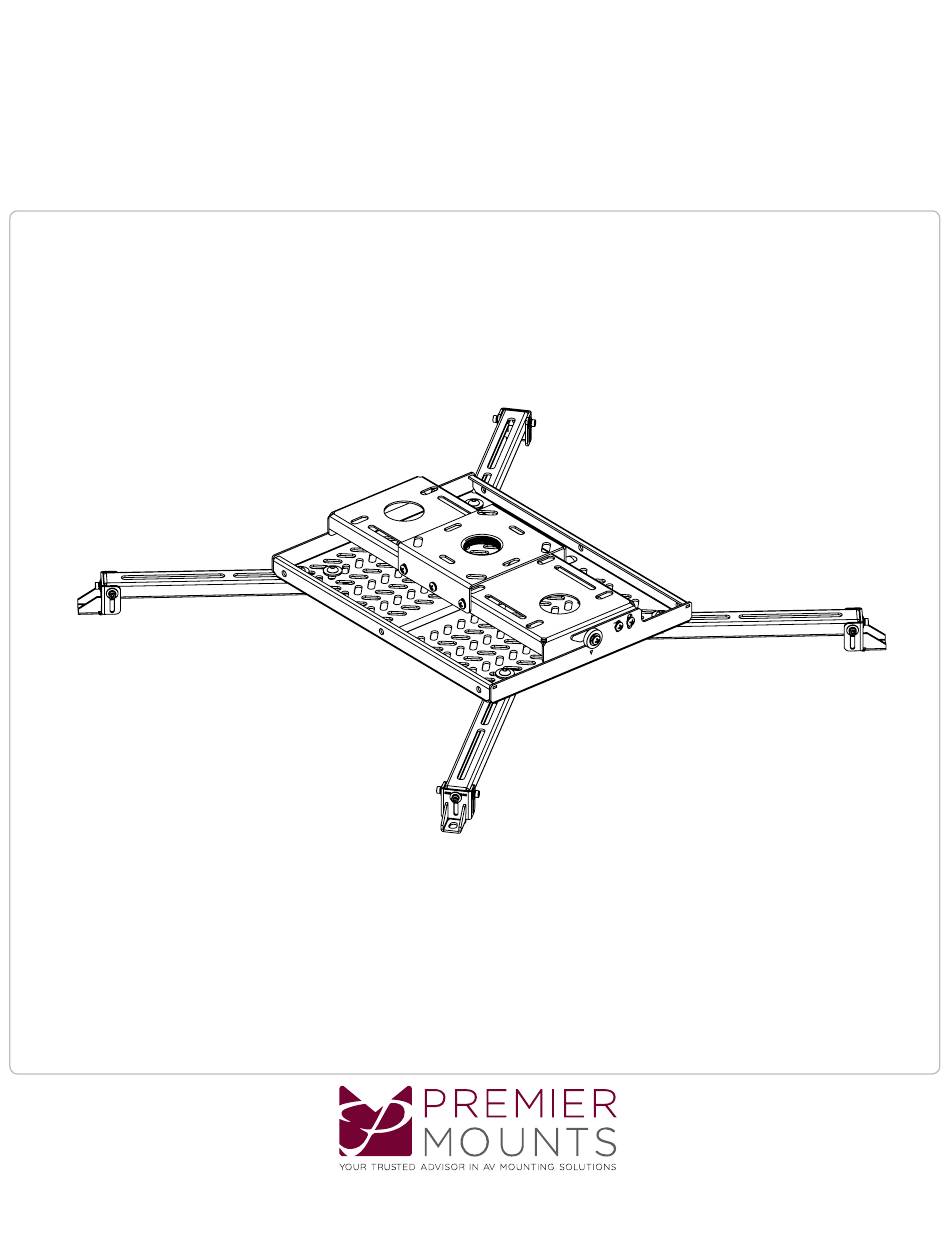

  • Page 1 PBM-UNI Installation Guide www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 1321 S. State College Blvd., Fullerton, CA 92831 USA...
  • Page 2: Warning Statements

    Recommended mounting surfaces: wooden studs and solid-flat concrete. If the mount is to be installed on any surface other than wooden studs, use suitable hardware (which is commercially available). Contact Premier Mounts with any questions. www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 2...
  • Page 3 PBM-UNI Installation Guide Included components Universal Plate Universal Leg Assembly Base Box M3 Allen Key M4 Allen Key M5 Allen Key M6 x 12mm M6 x 16mm M6 x 20mm M6 x 30mm M8 x 12mm M8 x 16mm M8 x 20mm...
  • Page 4 PBM-UNI Installation Guide Wood Ceiling Installation (8) M8 x 20 Button Hex Screws (8) M8 Large Washer (1) Universal Plate (6) M6 x 12 mm Screws Center of Gravity Center of Gravity Install the Universal Plate to the Universal Leg Assembly's using eight (8) M8 x 20 Button Hex Screws and eight (8) M8 Large Washers.
  • Page 5 PBM-UNI Installation Guide Pipe Ceiling Installation (1) Base Box Pipe ( Not Supplied) Lock Nut M6 x 8 mm Set Screw 1) Install the base box to the pipe. Make sure the Lock Nut is on the pipe before installing the base box.
  • Page 6 Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
