Front Panel

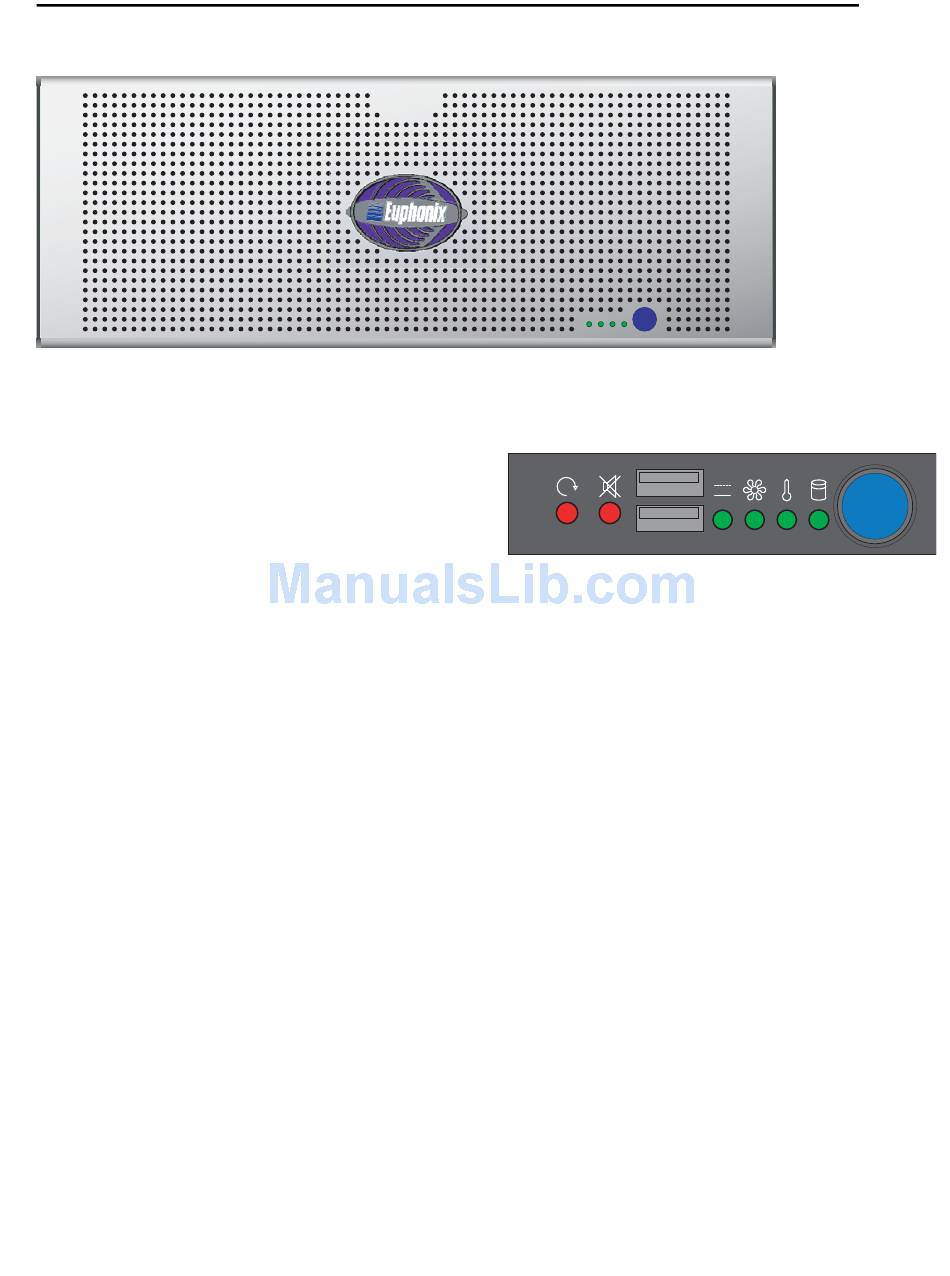

DF66 Front Panel
Front Panel Elements
Power Switch and Status Indicators See Status Module below.
Software Status Indicator The blue wave icon in the Euphonix
logo lights up to indicate the software in the DF66 is operating
correctly.
Status Module
Detail of Status Module on Front Panel
System Reset Switch Forces a manual reset of the FD66.
Alarm Cancel Switch Cancels the audible hardware fault
alarm.
USB Ports Connect a USB storage device to update software.
LED Status Indicators Indicate the status, from left to right, of
the power supply, cooling fans, temperature, and file system
activity. Healthy status is indicated by a green light; a fault is
indicated by a red light.
Power Switch Turns the unit on or off.
Chapter 1: Introduction to the DF66 3
