Back Panel

Locked LED Indicates that the DF66 is receiving from and
locked to the selected sync source. This LED must be lit for
proper DF66 audio operation.
VGA (DB-15), Keyboard (PS2), Mouse (PS2) Used for configu-
ration and service connections only.
Euphonix System 5 Installation Guide
SP663 DSP Line Card
6 x 6 Bridge Card

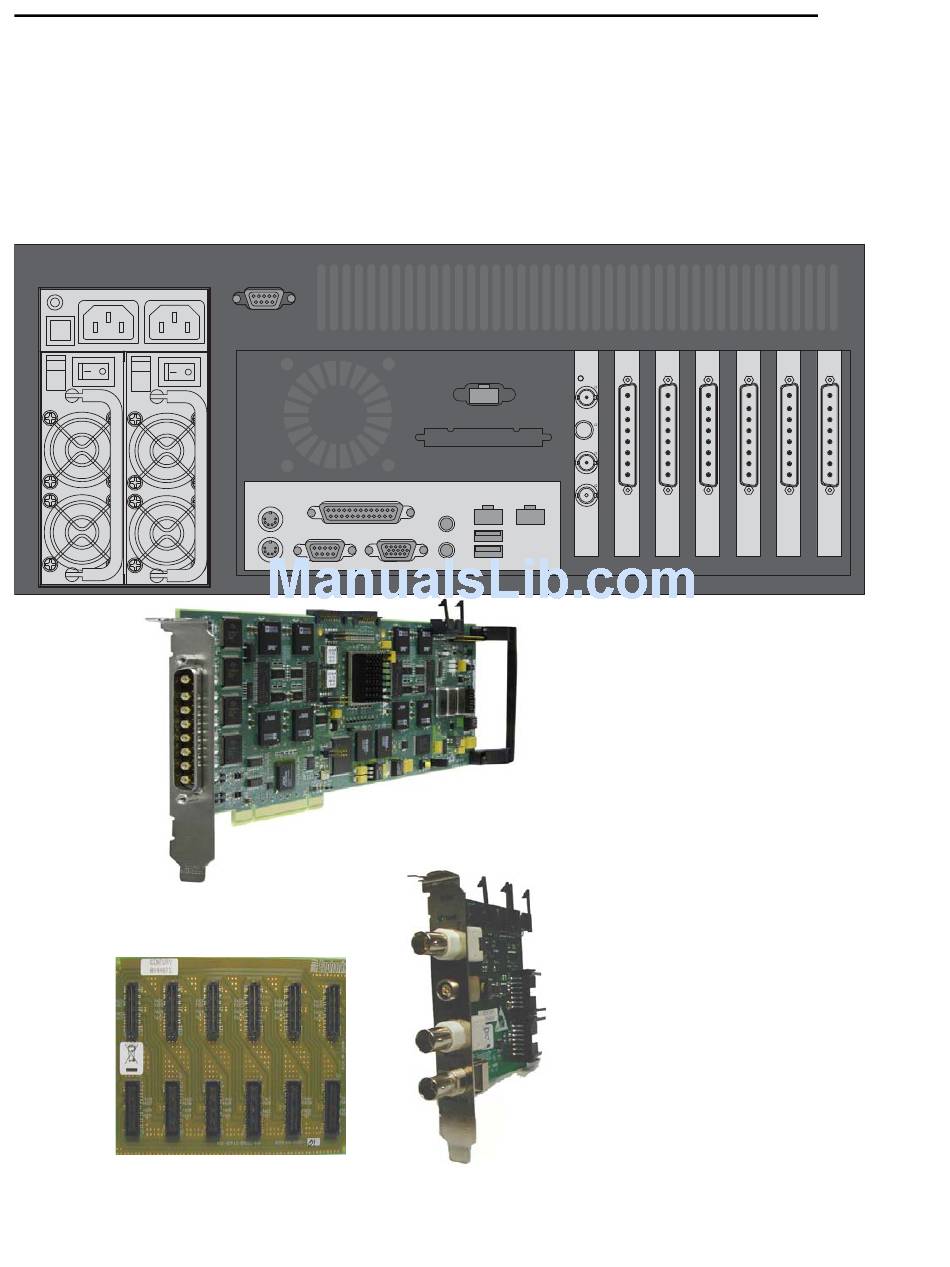

DF66 Back Panel (top), and Cards (bottom)
4 DF66 Guide
LAN Port 1 (RJ45) Connect to EUCON Network Switch via
RJ45 (provided).
LAN Port 2 (RJ45) Not used.
Power Connectors (IEC) Accepts two standard IEC power cords
(provided). Two auto-ranging switching supplies accept volt-
ages in the range100–240 VAC, 50–60 Hz
SYNC MADI
I/O
Lock
75
AES In
110
AES In
75
Word In
75
Word Out
System 5 Components
Sync Card
MADI MADI MADI MADI MADI
I/O I/O I/O I/O I/O
