Chapter 2: Installation

Connections

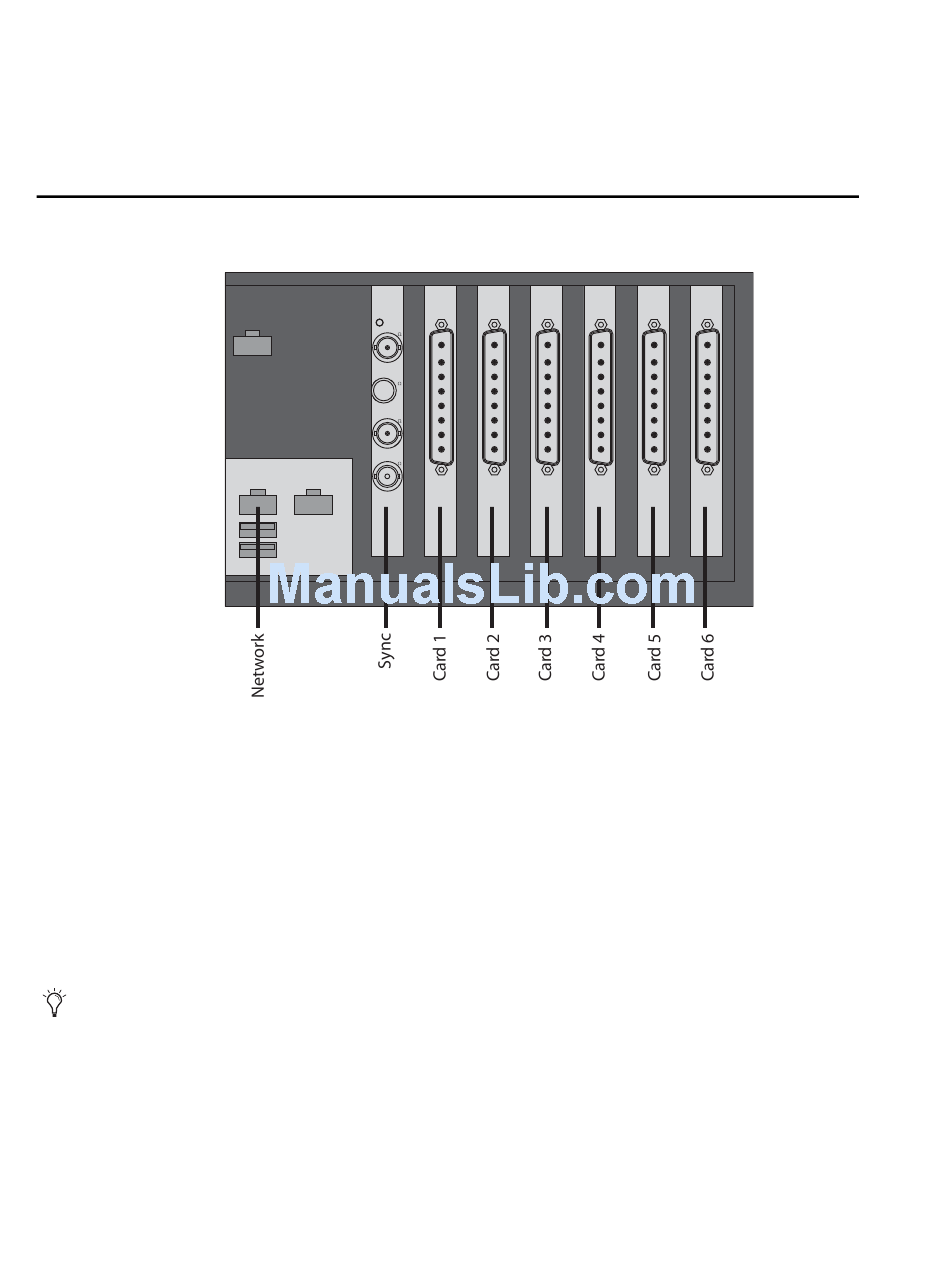

DF66 Back Panel (detail)
Network Connect the left Ethernet port (from the rear) to the
console's Ethernet switch.
Sync Connect a digital reference signal from a master clock
source to one of the sync inputs. Be sure to select this as the
sync source when configuring the DF66. (See "General Set-
tings" on page 9.)
MADI Connect audio inputs/outputs to the appropriate ports
on the DSP cards. Cards are numbered from left to right
(viewed from the back).
MADI port A on the first DSP card is always used for the
monitor/comms connection.
SYNC MADI MADI MADI
I/O I/O I/O
Lock
75
AES In
110
AES In
75
Word In
75
Word Out
MADI MADI MADI
I/O I/O I/O
