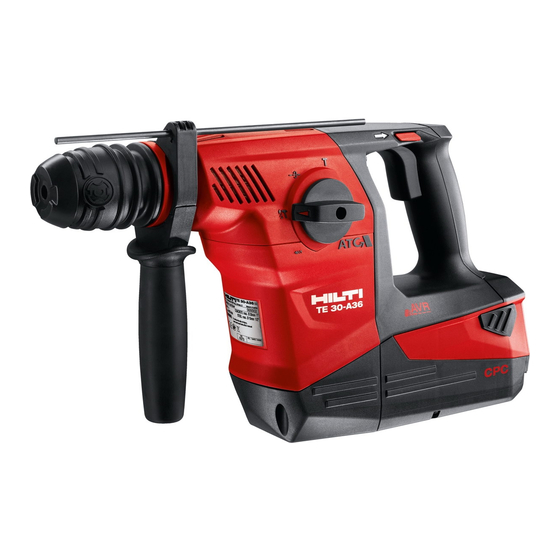

Hilti TE 30-A36 Original Instructions Manual

Cordless combihammer
Hide thumbs Also See for TE 30-A36:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions
TE 30-A36
Bedienungsanleitung
Operating instructions
Mode d'emploi
Istruzioni d'uso
Manual de instrucciones
Manual de instruções
Gebruiksaanwijzing
Οδηγιες χρησεως
Használati utasítás
Instrukcja obsługi
Инструкция по зксплуатации
Návod k obsluze
Návod na obsluhu
Upute za uporabu
Navodila za uporabo
Kulllanma Talimatı
IНСТРУКЦIЯ З ЕКСПЛУАТАЦIЇ
de
en
fr
it
es
pt
nl
el
hu
pl
ru
cs
sk
hr
sl
tr
uk

Advertisement

Table of Contents
loading

Related Manuals for Hilti TE 30-A36

Summary of Contents for Hilti TE 30-A36

  • Page 1 TE 30-A36 Bedienungsanleitung Operating instructions Mode d’emploi Istruzioni d’uso Manual de instrucciones Manual de instruções Gebruiksaanwijzing Οδηγιες χρησεως Használati utasítás Instrukcja obsługi Инструкция по зксплуатации Návod k obsluze Návod na obsluhu Upute za uporabu Navodila za uporabo Kulllanma Talimatı IНСТРУКЦIЯ З ЕКСПЛУАТАЦIЇ...

  • Page 6: Table Of Contents

    In these operating instructions, the designation “the Always keep these operating instructions power tool” always refers to the TE 30-A36 combi- together with the power tool. hammer Ensure that the operating instructions are...

  • Page 7: Description

    Working on materials hazardous to the health (e.g. asbestos) is not permissible. To avoid hazards, only use the batteries and battery chargers recommended by Hilti for this power tool. Do not use the battery as a power source for other unspecified appliances.
  • Page 8 The C4/36‑350 charger is recommended. The charging time is longer when the battery is charged with the other charger. 2.9 Items supplied as standard 1 Power tool 1 TE‑C chuck 1 Side handle with depth gauge 1 Operating instructions 1 Hilti cardboard box or toolbox 1 Cleaning cloth 1 Grease...

  • Page 9: Insert Tools, Accessories

    2.10 Li‑ion battery charge status LEDs light constantly LEDs blink Charge status C C ≧ 75 % LED 1,2,3,4 50 % ≦ C < 75 % LED 1,2,3 25 % ≦ C < 50 % LED 1,2 10 % ≦ C < 25 % LED 1 LED 1 C <...

  • Page 10: Technical Data

    4. Technical data Right of technical changes reserved. Power tool TE 30‑A Rated voltage 36 V Weight in accordance with EPTA procedure 5.5 kg 01/2003 Dimensions (L x W x H) 423 mm x 111 mm x 231 mm Drilling speed without hammering 853/min Hammer drilling speed 853/min...

  • Page 11: Safety Instructions

    5. Safety instructions NOTE or moving parts. Damaged or entangled cords increase the risk of electric shock. The safety rules in section 5.1 contain all general safety rules for power tools which, in accordance e) When operating a power tool outdoors, use an with the applicable standards, must be listed in the extension cord suitable for outdoor use.
  • Page 12 d) Under abusive conditions, liquid may be ejec- 5.1.4 Power tool use and care ted from the battery; avoid contact. If contact a) Do not force the power tool. Use the correct accidentally occurs, flush with water. If liquid power tool for your application. The correct contacts eyes, additionally seek medical help.
  • Page 13 To achieve a high level of dust 5.3.4 Electrical safety collection, use a suitable vacuum cleaner of the type recommended by Hilti for wood dust and/or mineral dust together with this tool. Ensure that the workplace is well ventilated. The use of a dust mask of filter class P2 is recommended.

  • Page 14: Before Use

    Before fitting the battery, check that the power tool DANGER is switched off and that the safety lock is engaged Use only the Hilti batteries and Hilti chargers listed (forward/reverse switch in the middle position). Use under “Accessories”. only the Hilti batteries approved for use with this power tool.

  • Page 15: Operation

    CAUTION Observe national and international transport regula- tions when shipping battery packs (transportation by Wear protective gloves when inserting the battery. road, rail, sea or air). Push the battery into the power tool from the rear until it is heard to engage with a double click. 6.6 Fitting the side grip 5 CAUTION A falling battery may present a risk CAUTION...
  • Page 16 Adjust the depth gauge to the desired drilling Pull the chuck sleeve forward and hold it se- depth “X”. curely. Tighten the side handle securely by turning it Remove the chuck by pulling it away from the clockwise. power tool. 7.1.2 Fitting the insert tool 7 7.1.5 Fitting the chuck 10 CAUTION...
  • Page 17 control switch is locked when the forward / reverse system offers additional comfort while drilling as it switch is in the middle position. causes rapid shutdown upon sudden rotation of the power tool about the drill bit axis, e.g. when the drill For forward rotation, push the forward / reverse bit sticks due to hitting a rebar or when the drill bit is switch on the side of the power tool toward the chuck...

  • Page 18: Care And Maintenance

    Clean the sealing lip by 8.5 Maintenance wiping it carefully and then grease it again lightly with Hilti grease. It is essential that the dust shield WARNING is replaced if the sealing lip is found to be damaged.

  • Page 19: Troubleshooting

    The battery runs down more Battery condition is not optimal. Have battery condition diagnosed quickly than usual. by Hilti Service or replace with a new battery. The battery doesn’t engage The retaining lugs on the battery Clean the retaining lugs and check with an audible double click.

  • Page 20: Disposal

    Dispose of the batteries in accordance with national regulations or return them to Hilti. Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling.

  • Page 21: Manufacturer's Warranty - Tools

    11. Manufacturer’s warranty - tools Hilti warrants that the tool supplied is free of defects Additional claims are excluded, unless stringent na- in material and workmanship. This warranty is valid tional rules prohibit such exclusion. In particular, so long as the tool is operated and handled correctly,...
  • Page 22 Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 4125 | 0612 | 00-Pos. 1 | 1 Printed in Germany © 2012 Right of technical and programme changes reserved S. E. & O.
