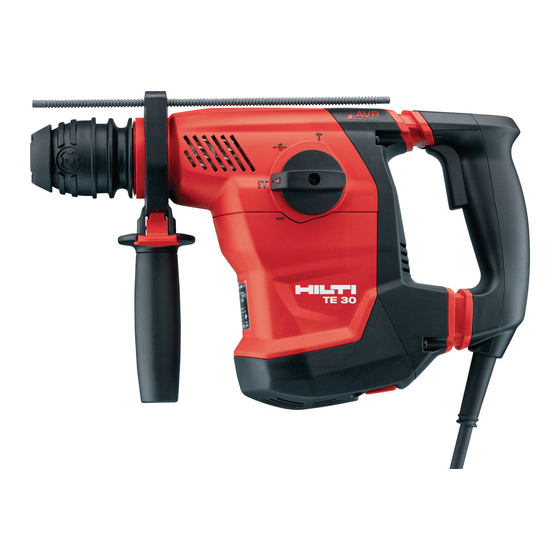

Hilti TE 30 Operating Instructions Manual
Hide thumbs
Also See for TE 30:
- User manual ,
- Operating instructions manual (261 pages) ,
- Manual (228 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hilti TE 30
Summary of Contents for Hilti TE 30
- Page 1 TE 30 TE 30-AVR TE 30-C-AVR English Printed: 29.05.2017 | Doc-Nr: PUB / 5070822 / 000 / 05...
- Page 2 Printed: 29.05.2017 | Doc-Nr: PUB / 5070822 / 000 / 05...
- Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
- Page 4 Revolutions per minute 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
- Page 5 Personal safety ▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ▶...
- Page 6 ▶ Dirty or dusty power tools that have been used frequently for work on conductive materials should be checked at regular intervals at a Hilti Service Center. Dust (especially dust from conductive materials) or dampness adhering to the surface of the power tool may, under unfavorable conditions, lead to electric shock.
- Page 7 English Printed: 29.05.2017 | Doc-Nr: PUB / 5070822 / 000 / 05...
- Page 8 English Printed: 29.05.2017 | Doc-Nr: PUB / 5070822 / 000 / 05...
- Page 9 3 Description 3.1 Overview of the product English Printed: 29.05.2017 | Doc-Nr: PUB / 5070822 / 000 / 05...
- Page 10 Note For safe, reliable operation, use only genuine Hilti spare parts and accessories. Spare parts, accessories and consumables approved by Hilti for use with this product can be found at your Hilti Center or at www.hilti.group. 4 Technical data Note For details of the rated voltage, current, frequency and/or input power, please refer to the power tool’s...
-
Page 11: Operation
Noise emission values TE 30 TE 30AVR TE 30CAVR Sound (power) level (L 101 dB(A) 101 dB(A) 101 dB(A) Uncertainty for the sound power level 3 dB(A) 3 dB(A) 3 dB(A) Sound pressure level (L 90 dB(A) 90 dB(A) 90 dB(A) - Page 12 5.3 Fitting / removing the accessory tool Note Use of unsuitable grease may cause damage to the product. Use only the recommended grease supplied by Hilti. ▶ Fit the accessory tool or, respectively, remove it. 5.4 Adjusting the depth gauge ▶...
- Page 13 5.6 Drilling with hammering action (hammer drilling) ▶ Set the function selector switch to the “Hammer drilling” position 5.7 Chisel positioning TE 30-C-AVR CAUTION Risk of injury! Loss of control over the chisel direction. ▶ Do not operate the tool when the selector switch is set to “Chisel positioning”. Turn the function selector switch until it engages in the “Chiseling”...
- Page 14 ▶ Set the function selector switch to the “Chisel positioning” position 5.8 Chiseling TE 30-C-AVR ▶ Set the function selector switch to the “Chiseling” position 5.9 Forward / reverse Note Operate the forward / reverse selector switch only when the motor has stopped.
-
Page 15: Troubleshooting
After cleaning and maintenance, refit all guards or protective devices and check that they function correctly. 7 Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. 7.1 Troubleshooting Trouble or fault Possible cause Action to be taken The power tool doesn’t start. - Page 16 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 17 Printed: 29.05.2017 | Doc-Nr: PUB / 5070822 / 000 / 05...
- Page 18 Hilti = registered trademark of Hilti Corp., Schaan 20170512 Printed: 29.05.2017 | Doc-Nr: PUB / 5070822 / 000 / 05...
