B. Vent Components Diagrams (continued)
8-3/4 in.
222 mm
Effective
Height/
Length
SLP PIPE
SLP-HVS
Horizontal Pipe
Support

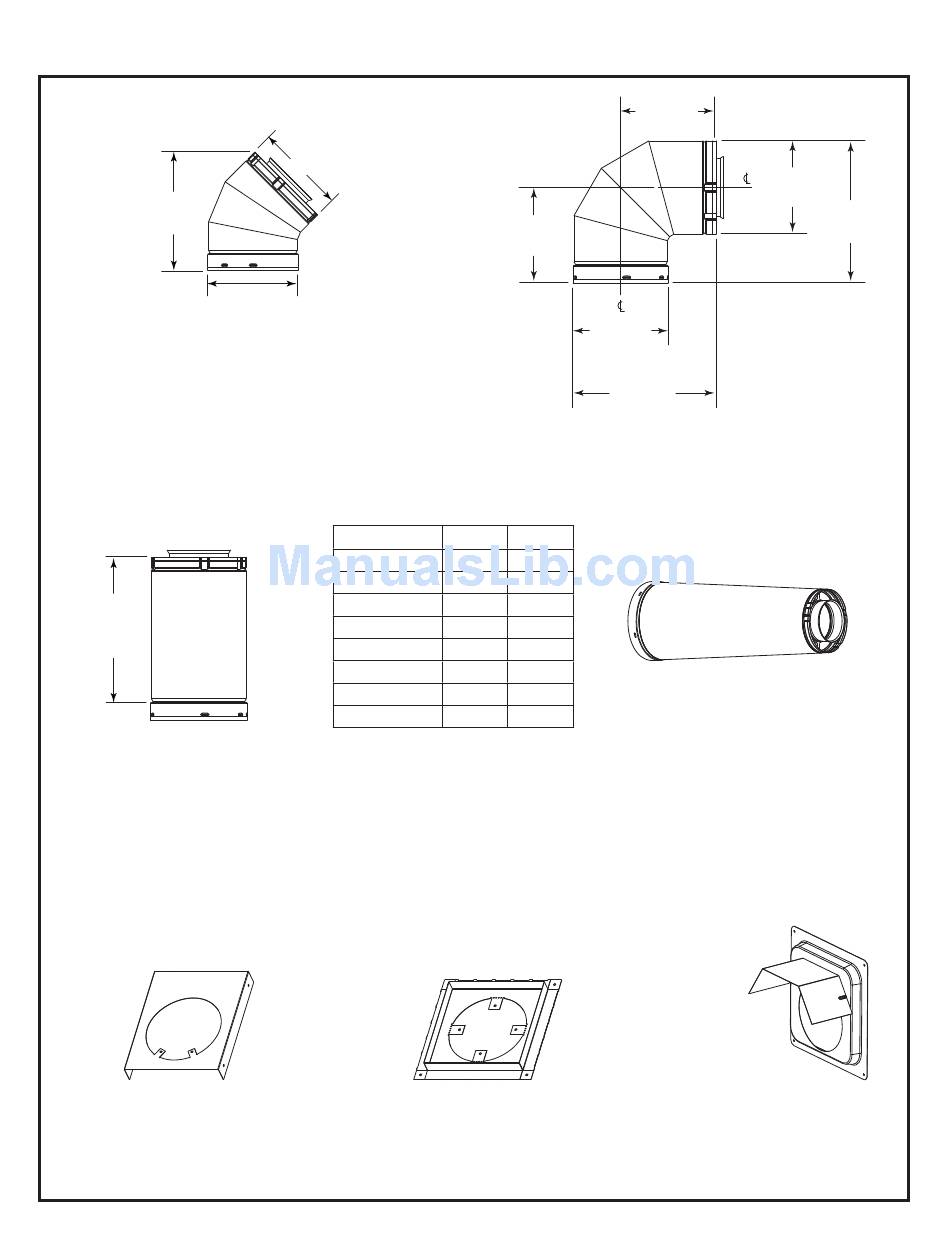

Figure 16.7 SLP Series Vent Components
6-1/2 in.
165 mm
6-5/8 in.
168 mm
SLP45
45° Elbow
Effective Height/Length
Pipe
SLP4
SLP6
SLP12
SLP24
SLP36
SLP48
SLP6A
SLP12A
Heat & Glo • 6000CMOD-IPI, 8000CMOD-IPI • 2241-900 Rev. i • 4/13
6 in.
152 mm
6-5/8 in.
168 mm
SLP90
90° Elbow
inches mm
4 102
6 152
12 305
24 610
36 914
48 1219
2 - 6 51 - 152
2 - 12 51 - 305
SLP-FS
Ceiling Firestop
6-1/2 in.
165 mm
6-1/2 in.
165 mm
9-7/8 in.
251 mm
DVP-SLP24
Adapter
SLP-WS
Wall Shield Firestop
9-1/4 in.
235 mm
