• Important operating
a n d m a i n t e n a n c e
instructions included.
f i r e - p a r t s . c o m
WARNING: If the information in these
instructions is not followed exactly, a fi re
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppli-
er's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
NOTICE
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09

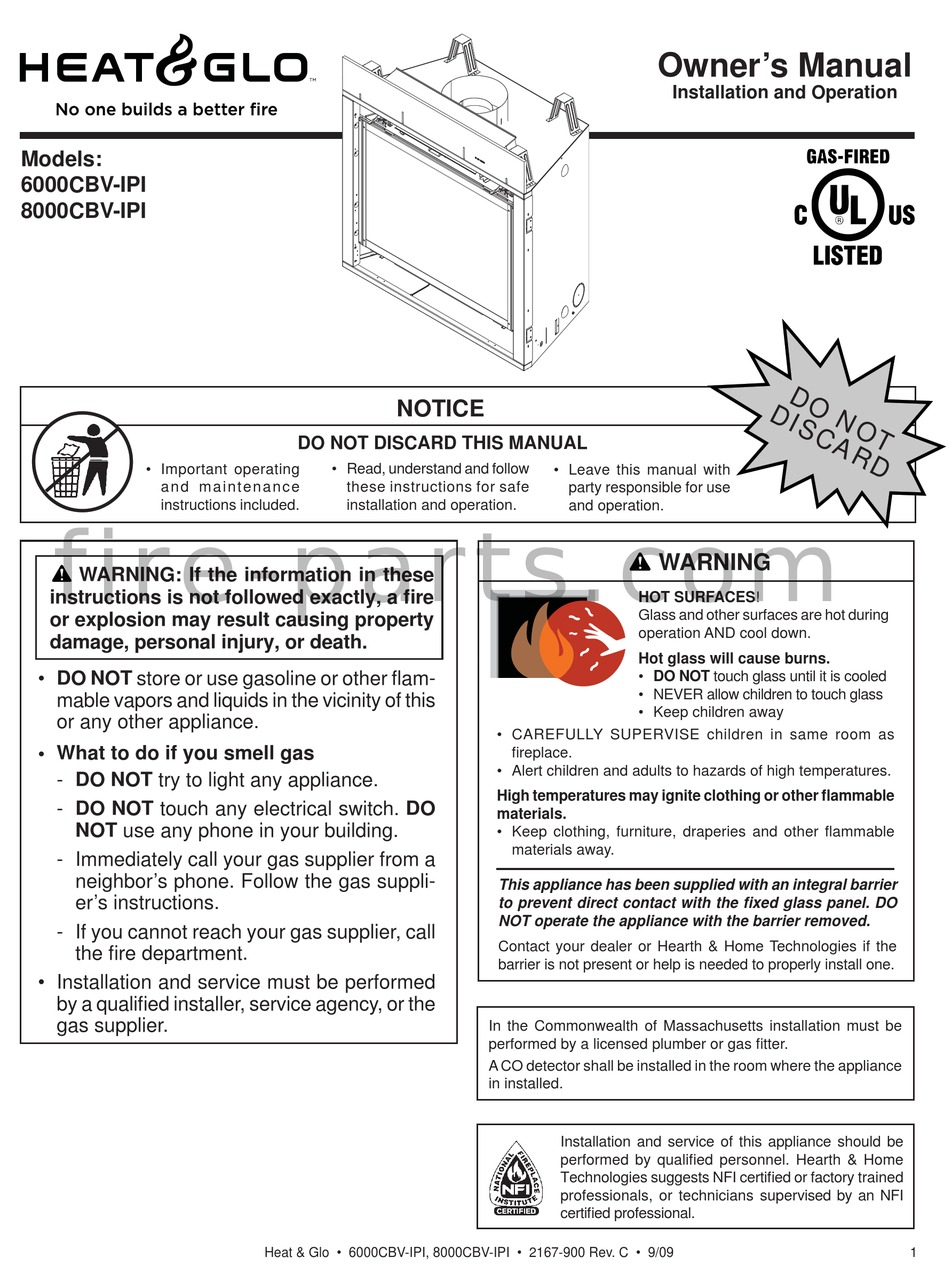

Owner's Manual
Installation and Operation
• Leave this manual with
party responsible for use
and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fi xed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
A CO detector shall be installed in the room where the appliance
in installed.
Installation and service of this appliance should be
performed by qualifi ed personnel. Hearth & Home
Technologies suggests NFI certifi ed or factory trained
professionals, or technicians supervised by an NFI
certifi ed professional.
1
Advertisement
Table of Contents
Related Manuals for Heat & Glo 6000CBV-IPI
Summary of Contents for Heat & Glo 6000CBV-IPI
- Page 1 Installation and service of this appliance should be performed by qualifi ed personnel. Hearth & Home Technologies suggests NFI certifi ed or factory trained professionals, or technicians supervised by an NFI certifi ed professional. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09...
-
Page 2: Congratulations
Read this manual before installing or operating this appliance. Please retain this owner’s manual for future reference. A. Congratulations This owner’s manual should be retained for future reference. We suggest that you keep it with your other Congratulations on selecting a Heat & Glo gas fi replace, an important documents and product manuals. -
Page 3: Table Of Contents
D. Mantel and Wall Projections ..... . . 21 Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... - Page 4 14 Appliance Setup A. Remove Glass Assembly ......36 B. Remove the Shipping Materials ....36 C.
-
Page 5: Limited Lifetime Warranty
B. Limited Lifetime Warranty f i r e - p a r t s . c o m Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... - Page 6 f i r e - p a r t s . c o m Heat & Glo • 6000CBV-IP, 8000CBV-IPI • 2167-900 Rev. C • 9/09...
-
Page 7: Listing And Code Approvals
• A 110-120 VAC circuit for this product must be pro- tected with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 8: User Guide
User Guide Operating Instructions A. Gas Fireplace Safety • Keep remote controls out of reach of children. • Never leave children alone near a hot fi replace, whether WARNING operating or cooling down. • Teach children to NEVER touch the fi replace. HOT SURFACES! Glass and other surfaces are hot during •... -
Page 9: Fan Kit (Optional)
F. Fixed Glass Assembly See Section 14.H. G. Remote Controls, Wall Controls and Wall Switches Follow the instructions supplied with the control installed to operate your fi replace: Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 10: Lighting Instructions (Ipi)
J. Lighting Instructions (IPI) FOR YOUR SAFETY LIGHTING READ BEFORE LIGHTING INSTRUCTIONS (IPI) WARNING: If you do not follow these instructions exactly, a fi re or explosion may result causing property damage, personal injury or loss of life. 1. Turn off all electric power to the appliance. •... -
Page 11: After Fireplace Is Lit
Is it normal to see the pilot fl ame burn turned off. Some optional control systems available with IPI models may allow pilot fl ame to continually? remain lit. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 12: Maintenance And Service
Maintenance and Service Doors, Surrounds, Fronts Any safety screen or guard removed for servicing must be replaced prior to operating the fi replace. Frequency: Annually By: Homeowner When properly maintained, your fi replace will give you many years of trouble-free service. We recommend an- Tools needed: Protective gloves, stable work surface nual service by a qualifi... -
Page 13: Maintenance Tasks-Qualifi Ed Service Technician
Use caution when cleaning these areas. Screw tips that have penetrated the sheet metal are sharp and should be avoided. • Remove all foreign objects. • Verify unobstructed air circulation. Figure 3.1 IPI Pilot Flame Patterns Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 14: Refractory, Grate And Valve Assembly Removal
C. Refractory, Grate and Valve Assembly Removal Note: The base refractory must be removed to access screws. It may become necessary to remove the optional refrac- tory, grate and valve assemblies. This task should be per- BASE REFRACTORY formed by a qualifi ed service technician. The optional refractory, grate and base refractory do not need to be removed to service the burner assembly. -
Page 15: Burner Identifi Cation/Verifi Cation
NOTCH LOCATION 6000C 6000CL f i r e - p a r t s . c o m 6000CLX 6000CBV 8000C 8000CL 8000CLX 8000CBV Figure 3.5 Burner Identifi cation Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 16: Installer Guide
Installer Guide Getting Started A. Typical Appliance System NOTICE: Illustrations and photos refl ect typical installations and are for design purposes only. Illustrations/diagrams are not drawn to scale. Actual product may vary from pictures in manual VERTICAL TERMINATION CAP (SECTION 6) NON-COMBUSTIBLE ROOF FLASHING MAINTAINS MINIMUM CLEARANCE AROUND PIPE (SECTION 4.D) -
Page 17: Design And Installation Considerations
• Attic Insulation Shield • Elbows • Strapping • Roof Flashing or Chase Top • Termination Cap • Storm Collar • Carefully remove the appliance and components from the packaging. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 18: Negative Pressure
E. Negative Pressure • Ensure adequate outdoor air is supplied for combustion appliances and exhaust equipment. WARNING! Asphyxiation Risk! Negative pressure can • Ensure furnace and air conditioning return vents are not cause spillage of combustion fumes and soot. Fireplace located in the immediate vicinity of the fi... -
Page 19: Framing And Clearances
INSTALLATION TOP VENT TOP VENT 6000CBV Inches See Mantel Projections Millimeters 1295 1067 1829 8000CBV Inches 55-7/8 See Mantel Projections Millimeters 1419 1245 2007 Figure 5.1 Appliance Locations Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 20: Constructing The Appliance Chase
B. Constructing the Appliance Chase stops should be caulked with high temperature caulk to seal gaps. Gas line holes and other openings should be A chase is a vertical box-like structure built to enclose the caulked with high temperature caulk or stuffed with un- gas appliance and/or its vent system. -
Page 21: Mantel And Wall Projections
TOP EDGE OF THE OPENING Note: Measurement is taken from top of the opening, NOT the top of the fi replace. Figure 5.3 Minimum Vertical and Maximum Horizontal Dimensions of Combustibles Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 22: Termination Locations
Termination Locations A. Vent Termination Minimum Clearances 6 in. (minimum) up to 20 in. 18 in. minimum 152 mm/508 mm 457 mm WARNING 20 in. and over 0 in. minimum Fire Risk. Gas, Wood or Fuel Oil Termination Cap Maintain vent clearance to combustibles as specifi... -
Page 23: Vent Information And Diagrams
fi re. 45 DEGREES OFFSETS EXCEEDING ELBOW 45 DEGREES ADAPT HORIZONTAL LIMITATIONS 90 DEGREES ELBOW Note: Maximum horizontal distance is 50% vertical vent height. Figure 7.3 Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 24: Vent Clearances And Framing
Vent Clearances and Framing A. Pipe Clearances to Combustibles B. Wall and Ceiling Penetration Framing Vent clearances are per vent manufacturer’s specifi ca- For a wall or ceiling penetration consult B-vent pipe tions. MUST be Listed B-Vent pipe. manufacturer’s instructions to provide adequate clear- ances. -
Page 25: Appliance Preparation
• Insert narrow end of handle through tab and into upper slot of door. • Check handle operation. Pull handle out to open, and in to close. Figure 9.2 Outside Air Kit Installation Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 26: Securing And Leveling The Appliance
D. Securing and Leveling the Appliance WARNING! Risk of Fire! Prevent contact with: • Sagging or loose insulation • Insulation backing or plastic • Framing and other combustible materials Block openings into the chase to prevent entry of blown- in insulation. Make sure insulation and other materials are secured. -
Page 27: Installing Vent Pipe
2 in. (51 mm) above insulation. Attic shields must meet specifi ed clearance and be se- cured in place. FLUE OUTLET COLLAR Figure 10.1 Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 28: Gas Information
11 11 Gas Information A. Fuel Conversion C. Gas Connection • Make sure the appliance is compatible with available gas • Refer to Reference Section 16 for location of gas line types. access in appliance. • Conversions must be made by a qualified service •... -
Page 29: Electrical Information
Follow instructions that come with those accessories. • Use only IntelliFire Plus™ Wireless Controls or WSK- 21 wired wall switch with the IntelliFire Plus™ Ignition System. • A standard ON/OFF switch is compatible. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 30: Electrical Service And Repair
NOTE: 1. Ignition module, valve, pilot, and wall switch operate on 3 volts. 120 VAC is required at junction box unless equipped with battery back-up. FLAME IGNITER SENSE TO JUNCTION BOX (110V) MODULE FLAME MODULATION RC100 RC200 (OPTIONAL WALL CONTROLS) BATTERY PACK 6V DC (AA X 4) THERMOSTAT WIRE... -
Page 31: Wall Switch Installation For Fan (Optional)
REMOTE Position: Appliance will initiate commands from a wired wall switch and/or one of the optional wireless remote options. Figure 12.4 Control Module Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 32: Finishing
Finishing A. Mantel and Wall Projections B. Facing Material WARNING! Risk of Fire! Comply with all minimum clear- • Metal front faces may be covered with non-combustible ances as specifi ed. Framing closer than the minimums list- materials only. ed must be constructed entirely of noncombustible materials •... -
Page 33: Doors
They must be removed following fi nishing work. See fi gure 13.7. NOTICE: See service parts list (Section 16.B) for ordering fi nishing strips. Figure 13.4 Finishing Material 1 Inch Thick or Less Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... - Page 34 Finishing Material Thickness: Finishing Material Thickness: Greater Than One Inch FINISHING STRIPS USED (See Figure 13.7 for attachment instructions.) FINISHING STRIP NOT USED NON-COMBUSTIBLE FINISHING MATERIAL NON-COMBUSTIBLE FINISHING MATERIAL f i r e - p a r t s . c o m FINISHING FINISHING MATERIAL...
- Page 35 - p a r t s . c o m NOTICE: See service parts list (Section 16.B) for ordering fi nishing strips. Figure 13.7 Attaching Finishing Strips. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09...
-
Page 36: Appliance Setup
Appliance Setup A. Remove Glass Assembly F. Ember Placement See Section 14.H. WARNING! Risk of Explosion! Follow ember placement instructions in manual. DO NOT completely block burner B. Remove the Shipping Materials ports with ember material. Replace ember material annu- Remove shipping materials from inside or underneath the ally. -
Page 37: Install The Log Assembly
fi tted together, mate the groove located on the bottom of Log #2 with the horizontal grate bar and slide Log # 2 toward the left until it rests against the far left grate tine. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... - Page 38 NOSE NOSE RIGHT GRATE TINE RIGHT GRATE TINE Figure 7 Figure 8 Log #3 (SRV2164-703): Mate the slot located on the bottom of Log #3 with the right log placement tab on top of Log #1. After slot and tab have been fi tted together, mate the groove located on the bottom of Log #3 with the horizontal grate bar and slide Log # 3 toward the right until it rests against the far right grate tine (see Figure 7).
- Page 39 After slot and tab have been fi tted together, mate the groove located on the bottom of Log #2 with the horizontal grate bar and slide Log # 2 toward the left until it rests against the far left grate tine. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09...
- Page 40 RIGHT GRATE TINE RIGHT GRATE TINE HORIZONTAL GRATE BAR HORIZONTAL GRATE BAR LOG #4 CONTACTS LOG #2 LOG #4 CONTACTS LOG #2 Figure 7 Figure 8 Log #3 (SRV2168-703): Mate the slot located on the bottom of Log #3 with the right log placement tab on top of Log #1. After slot and tab have been fi...
-
Page 41: Fixed Glass Assembly
• Install optional trim kits and/or surrounds using the instructions included with the accessory. • Use non-combustible materials to cover the gap between the sheet rock and the appliance (when applicable to the model). Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09... -
Page 42: Troubleshooting
Troubleshooting With proper installation, operation, and maintenance your gas appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist a qualifi ed service technician in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualifi ed service technician. Contact your dealer to arrange a service call by a qualifi... - Page 43 - p a r t s . c o m have accumulated on fl ame sensing rod. Verify continuity with a multimeter with ohms set at lowest range. Replace pilot if any damage is detected. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09...
-
Page 44: Reference Materials
Reference Materials A. Appliance Dimension Diagram Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5. TOP VIEW ELECTRICAL ACCESS f i r e - p a r t s . c o m GAS LINE ACCESS LEFT SIDE... - Page 45 - p a r t s . c o m Location Inches Millimeters Location Inches Millimeters 35-1/2 1219 1092 17-3/4 35-1/2 36-9/16 2-5/8 8-7/8 2-3/8 5-1/4 42-7/8 1089 21-1/16 9-1/2 Figure 16.2 8000CBV Appliance Dimensions Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09...
-
Page 46: Service Parts
6000CBV-IPI, 8000CBV-IPI B. Service Parts Beginning Manufacturing Date: Aug 2009 Service Parts Diagram Ending Manufacturing Date: ________ f i r e - p a r t s . c o m Log Set Assembly Part number list on following page. - Page 47 Conversion Kit LP LPKI-6CBV Regulator NG NGK-DXV-50 Regulator LP LPK-DXV-50 Pilot Orifi ce NG 593-528 Pilot Orifi ce LP 593-527 Additional service part numbers appear on following page. Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09...
- Page 48 8000CBV-IPI IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed Stocked in this manual may be ordered from an authorized dealer. at Depot ITEM DESCRIPTION COMMENTS PART NUMBER Log Set Assembly...
- Page 49 Wire Harness 2166-304 Burner Orifi ce NG (#39C) 582-839 6000CBV-IPI Burner Orifi ce LP (#52C) 582-852 Burner Orifi ce NG (#34C) 582-834 8000CBV-IPI Burner Orifi ce LP (#51C) 582-851 Heat & Glo • 6000CBV-IPI, 8000CBV-IPI • 2167-900 Rev. C • 9/09...
-
Page 50: Contact Information
C. Contact Information Heat & Glo, a brand of Hearth & Home Technologies Inc. 7571 215th Street West, Lakeville, MN 55044 www.heatnglo.com Please contact your Heat & Glo dealer with any questions or concerns. For the location of your nearest Heat & Glo dealer, please visit www.heatnglo.com.
