Summary of Contents for Amana AMC7159TA

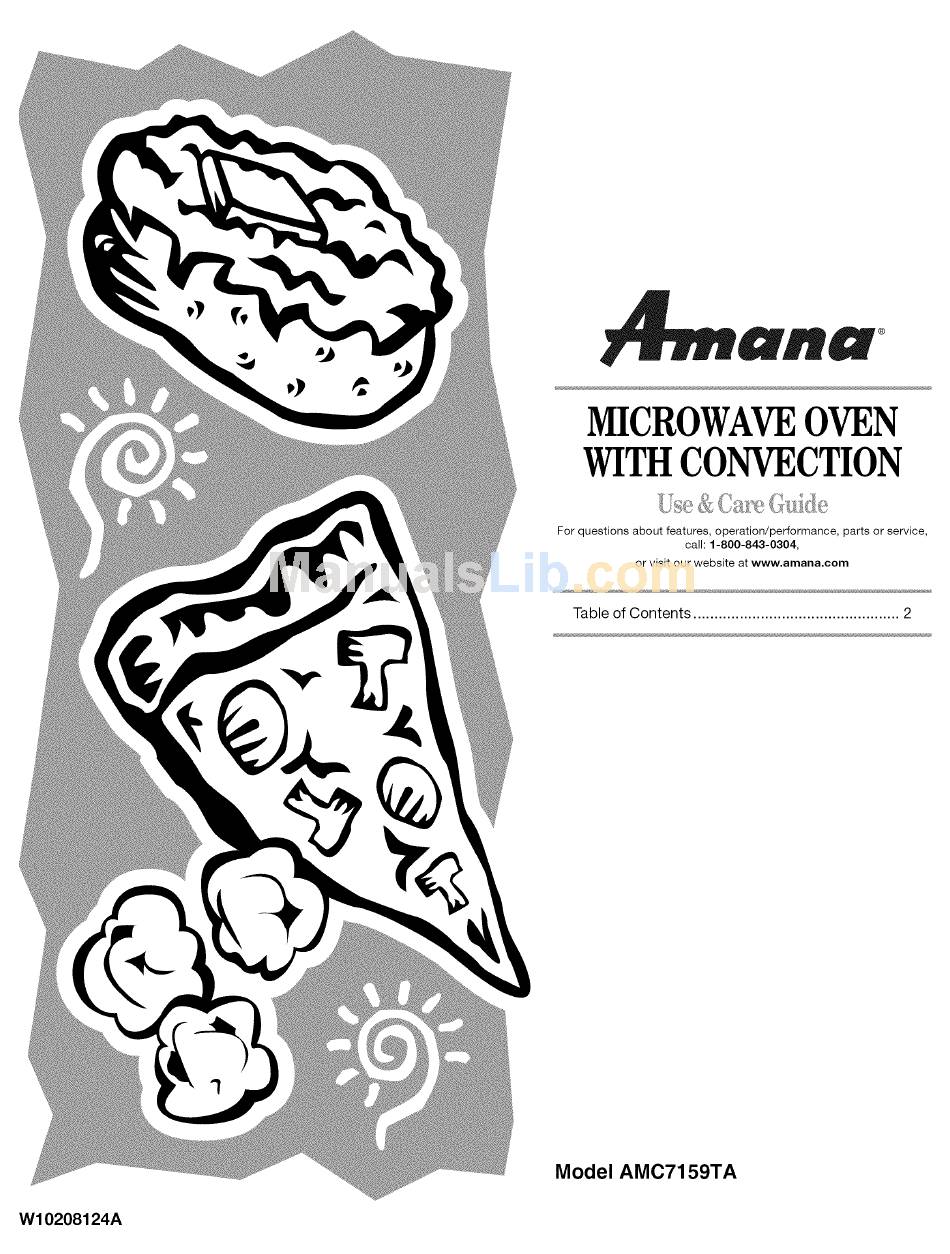

- Page 1 _® MICROWAVEOVEN WITH CONVECTION For questions about features, operation/pedormance, paris or service, call: 1-800-843-0304, or visit our website at www.amana.com Table of Contents ... Model AMC7159TA W10208124A...
-
Page 2: Table Of Contents
TABLEOF CONTENTS MICROWAVE OVEN SAFETY ... INSTALLATION INSTRUCTIONS ... Unpacking ... Location Requirements ... Electrical Requirements ... PARTS AN D FEATU RES ... Turntable ... Convection Rack and Drip Pan... M IC ROWAVE OVEN CONTROL ... Display ... Start/Enter ... Jet Start Feature ... -
Page 3: Microwave Ovensafety
MICROWAVE OVENSAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER"... - Page 4 iMPORTANT [] Do not operate any heating or cooking appliance beneath the microwave oveR. [] Do not mount microwave oven over or near any portion of a heating or cooking appliance. [] Do not use paper products when appliance is operated in convection, combination, grill or "PAN BROWN"...
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Empty the microwave oven of any packing materials. Clean the inside with a soft, damp cloth. Check for damage, such as: • a door that is not lined up correctly • damage around the door, or • dents on the interior or exterior of the microwave oven. If there is any damage, do not operate the microwave oven until a designated service technician has checked it and made any needed repairs. -
Page 6: Parts Andfeatures
This manual may cover several different models. The model you have purchased may have some or all of the features shown here. The appearance of your particular model may differ slightly from the illustrations in this manual. A. Door lock system F. -
Page 7: Microwave Ovencontrol
MICROWAVE OVENCONTROL Microwave Sensor Reheat Cook Popcorn Manual Micro Combi Convect _ii;i V _i I if: V _! V !'!' _i; V ii_ _ 1 Lb. 0.1 Lb. Thickness Doneness Auto Convection Timer _Jet Start-- When power is first supplied to the microwave oven, a ":" will blink in the display. -
Page 8: Control Lock
The Control Lock shuts down thecontrol panel pads toavoid unintended useofthemicrowave oven. ToLock/Unlock Control: B efore l ocking, make sure the microwave oven and Timer a re off.Touch a nd hold OFF/CANCEL for4 seconds until 1 tone sounds a nd "LOCKED" appears inthe display. -
Page 9: Microwave Ovenuse
A magnetron in the microwave oven produces microwaves which reflect off the metal floor, walls and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar and water molecules in the food, causing them to move, producing friction and heat which cooks the food. -
Page 10: Cookware And Dinnerware
Cookware anddinnerware must f itontheturntable. Always u se oven mitts orpotholders when handling because any dishmay become h otfromheat t ransferred from thefood. D onotuse cookware and dinnerware withgold orsilver t rim. U se the following chart a saguide, then testbefore u sing. MATERIAL RECOMMENDATIONS Aluminum Foil,... -
Page 11: Manual Microwave Cooking
H_,ms To Use: 1. Place food on the turntable, and close the door. 2. Touch MICRO pad. 3. Touch the MIN or SEC "up" or "down" arrow pads to set a length of time to cook. Touch TEMP/POWER "up" or "down" arrow pads to set a cooking power other than 100%. -
Page 12: Sensor Reheat
The sensor in the microwave oven determines the reheating time based on the selection. Use the following chart as a guide. FOOD SERVING SIZE/INSTRUCTIONS Dinner Plate 8-16 oz (227-454 g) (refrigerated) Place food on microwave-safe with plastic wrap and vent. Soup 1-4 cups (250 mL-1 L) Place in microwave-safe... -
Page 13: Raising (Proofing) Bread
PREHEAT TEMPERATURE CHART Refer to recipe for recommended temperature necessary to preheat microwave oven unless recipe calls for it. FOOD TEMP Cookies 325°F (163°C) Breads, Brownies 350°F (177°C) Refrigerated Biscuits, Fresh Pies 375°F (191°C) Fresh Pizza, Frozen Pies 400°F (204°C) Muffins, Fresh Fish Fillets 425°F (218°C) Fresh Biscuits... -
Page 14: Auto Convection Cooking With Preheat
Some Auto Convection settings will prompt to preheat the microwave oven before the food is placed inside. See "Auto Convection Preheating Chart." To Auto Convection Cook with Preheat: 1. Touch Auto Convection pads until desired food item is displayed. 2. Touch START/ENTER. "PREHEAT"... -
Page 15: Combination Cooking
MEAT CHART Meat Portion Amounts Doneness Choices Beef Roast* 2-5 Ibs (0.9-2.3 kg) Beef Steaks 1/2-1 W' (13-38 mm) Hamburgers 1/2-1" (13-25 mm) Meat Loaf 1-2 Ibs (0.4-0.9 kg) Pork Roast* 2-5 Ibs (0.9-2.3 kg) Pork Chops 1/2-1" (13-25 mm) Ham- 2-5 Ibs (0.9-2.3 kg) Boneless*... -
Page 16: Defrosting
The automatic Defrost control can be used, or the microwave oven can be manually set to defrost. • Unwrap foods and remove lids (from fruit juice) before defrosting. • Shallow packages will defrost more quickly than deep blocks. • Separate food pieces as soon as possible during or at the end of cycle for more even defrosting. -
Page 17: Microwave Ovencare
IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions cleaning products. Soap, water and a soft cloth or sponge are suggested unless otherwise noted. MICROWAVE OVEN CAVITY To avoid damage to the microwave oven cavity, do not use soap- filled scouring pads, abrasive cleaners, steel-wool washcloths or some recycled paper towels. -
Page 18: Troubleshooting
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Nothing will operate Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. -
Page 19: Assistance Or Service
Factory specified replacement parts will fit right and work right because they are made with the same precision used to build every new Amana ® appliance. To locate factory specified replacement parts in your area, call us or your nearest designated service center. -
Page 20: Amana ®Majorappliancewarranty
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. AMANA SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
