INSTALLATION INSTRUCTIONS

USER GUIDE

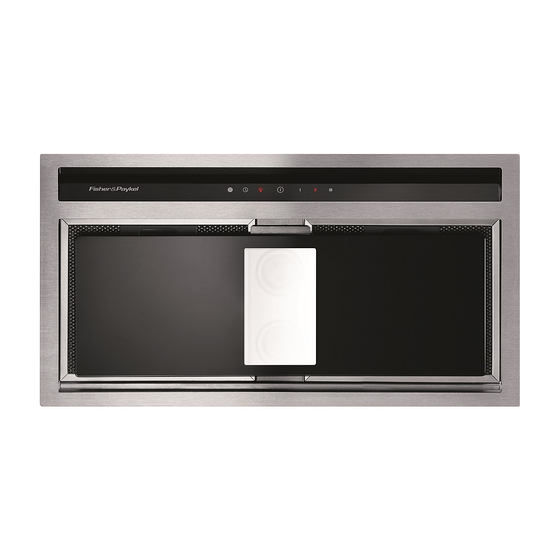

Built-In Integrated Rangehood
HP60IDCHX2, HP90IDCHX2,
HP60IDCHX3 and HP90IDCHX3 models
NZ AU ROW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP60IDCHX2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fisher & Paykel HP60IDCHX2

  • Page 1: Installation Instructions

    INSTALLATION INSTRUCTIONS USER GUIDE Built-In Integrated Rangehood HP60IDCHX2, HP90IDCHX2, HP60IDCHX3 and HP90IDCHX3 models NZ AU ROW...
  • Page 3: Table Of Contents

    CONTENTS Introduction Safety and warnings Installation instructions Operating instructions Cleaning and maintenance Parts and accessories Manufacturer’s Warranty Customer Care IMPORTANT! Registration SAVE THESE INSTRUCTIONS Register your product with us so we can The models shown in this user guide may provide you with the best service possible.
  • Page 5: Introduction

    INTRODUCTION Thank you for purchasing a Fisher & Paykel product. Thousands of hours go into the design, engineering, testing and perfecting of each Fisher & Paykel appliance. The care and attention given to creating these beautiful products doesn’t stop once it has found its home with you. This use and care manual will answer most of your questions about the set-up, use and on-going maintenance of your Fisher &...
  • Page 6: Safety And Warnings

    SAFETY AND WARNINGS WARNING! Weight Hazard The appliance is heavy. Please ensure adequate care is taken when installing the appliance to prevent personal injury. The appliance must be installed onto a solid wall, stud, beam or truss. Weight of the product is 8.2 kg (HP60) / 11.5 kg (HP90).
  • Page 7: Important Safety Instructions

    SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS WARNING! When using this appliance always exercise basic safety precautions including the following: Please read the entire set of instructions before installing or using this appliance. ● ● Please make this information available to the person installing the appliance – doing ●...
  • Page 8 SAFETY AND WARNINGS You must read the details concerning the method and frequency of cleaning. ● ● There is a fire risk if cleaning is not carried out in accordance with the instructions. ● ● Never leave frying food unattended since grease can overheat and catch fire. The risk ●...
  • Page 9: Installation Instructions

    INSTALLATION INSTRUCTIONS Contents of packaging INSTALLATION INSTRUCTIONS USER GUIDE Built-In Integrated Rangehood HP60IDCHX2, HP90IDCHX2, HP60IHCB3 and HP90IHCB3 models NZ AU ROW Rangehood Installation instructions 150 mm ducting adapter User guide manual with non return flap 125 mm ducting 13 mm screw adapter (1)
  • Page 10 INSTALLATION INSTRUCTIONS Product and cabinetry cutout dimensions Ø Power cord location Ducting adapter HP60 HP90...
  • Page 11 INSTALLATION INSTRUCTIONS HP60 HP90 PRODUCT DIMENSIONS Overall height of product (with ducting adapter) (395) (360) Overall width of product Overall depth of product Thickness of flange Width of chassis Depth of chassis Height of side of chassis Width of top surface of chassis Length of angled surface of chassis Distance from centre of ducting outlet to back of chassis...
  • Page 12 INSTALLATION INSTRUCTIONS Height of rangehood MINIMUM CLEARANCES Height top of cooktop to base of product Electric cooktop min. 600 – max. 750 Gas cooktop min. 650 – max. 750 Rangehood installation height above the cooktop is the user’s preference. Lower installation heights will improve the efficiency of capturing cooking odours, grease, and smoke.
  • Page 13 INSTALLATION INSTRUCTIONS Venting options Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled. The rangehood can be installed to operate with the exhaust air ducted externally from the kitchen, or installed to operate with the exhaust air recirculating within the kitchen. Ducted For ducted installation it is recommended that 150 mm diameter, rigid or semi-rigid ducting is used.
  • Page 14 INSTALLATION INSTRUCTIONS WARNING! This appliance is heavy and requires two persons for unpacking and installation ● ● Installation work and electrical wiring must be done by qualified person(s) in ● ● accordance with all applicable codes and standards. Failure to install the screws or fixing device in accordance with these instructions ●...
  • Page 15 INSTALLATION INSTRUCTIONS Remove the filters and face plate of the rangehood. 360˚ 360˚ 360˚ 360˚ 360˚ 360˚...
  • Page 16 depth INSTALLATION INSTRUCTIONS Connect duct and plug rangehood in. Lift the rangehood and fit through the opening of the cupboard till the spring loaded brackets / clips hold the product in place. Secure rangehood while tightening the 4 brackets / clips.
  • Page 17: Operating Instructions

    OPERATING INSTRUCTIONS Touch control panel CONTROL PANEL FEATURES Filter Activated regularly to alert of the need to cleaning alert clean filters. It can be deactivated with a single press. Timer Turn the timer on. The fan operates for 5 minutes at the current speed and each descending speed before turning off.
  • Page 18: Cleaning And Maintenance

    CLEANING AND MAINTENANCE WARNING! Unplug or disconnect the appliance from the power supply before servicing ● ● or cleaning. When replacing the bulb, let the bulb cool, and assure that power to the ● ● rangehood has been turned off. Use new bulbs according to that indicated on the rangehood nameplate.
  • Page 19 CLEANING AND MAINTENANCE Light bulb replacement Note: replacement bulbs are not covered by warranty. Open the glass panel. Remove the aluminium filters. Unscrew the light bulb. Insert the replacement bulb into the lamp socket. Replace the aluminium filters. Replace the glass panel. Bulb replacement...
  • Page 20: Parts And Accessories

    PARTS AND ACCESSORIES ITEM REFERENCE NUMBER LED bulb x2 792393 Aluminium filter 792429 Recirculation carbon filter x2 792481 Ducting 150 mm kit (eaves) PD-RHK150E Ducting 150 mm kit (wall) PD-RHK150W...
  • Page 21: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this Built-In Integrated Rangehood covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase.
  • Page 22 MANUFACTURER’S WARRANTY For Australian Customers This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
  • Page 23: Customer Care

    CUSTOMER CARE Before you call for service or assistance... Check the things you can do yourself. Refer to your user guide and check that: Your product is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to your nearest Fisher &...
  • Page 24: Registration

    CUSTOMER CARE *If you call, write or contact our website please provide: your name and address, model number, serial number, date of purchase and a complete description of the problem. This information is needed in order to better respond to your request for assistance. Product details can be found on the inside of the chassis.
  • Page 28: Www.fisherpaykel.com

    www.fisherpaykel.com © Fisher & Paykel Appliances 2015. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your dealer to ensure this booklet correctly describes the product currently available.
