Summary of Contents for Fisher & Paykel HC90PCTX1

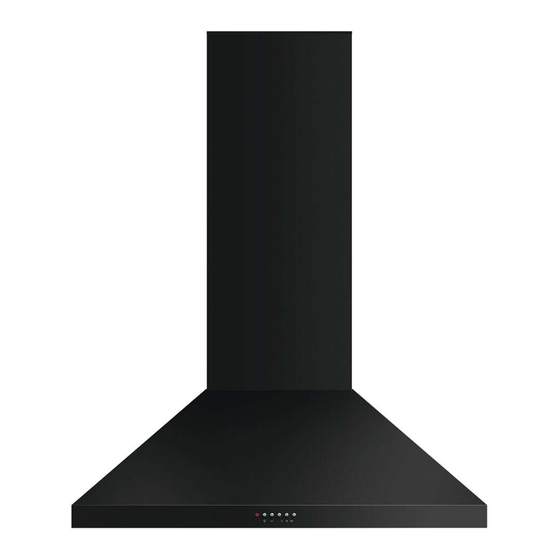

- Page 1 CLASSIC RANGEHOOD HC90PCTX1, HC90PCB1, HC90PCW1 and HC90PCR1 models INSTALLATION GUIDE NZ AU...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Parts supplied Prior to installation Product dimensions Installation height Attachment dimensions Venting options Prepare rangehood Hang rangehood Parts and accessories Final checklist READ AND SAVE THESE INSTRUCTIONS The models shown in this installation guide may not be available in all markets and are subject to change at any time. -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • Always disconnect the appliance from the mains power supply before carrying out any maintenance or repairs. • Alterations to the domestic wiring system must be untaken by a qualified electrician. - Page 5 SAFETY AND WARNINGS WARNING! When using this appliance always exercise basic safety precautions including the following: Please read the entire set of instructions before installing or using this appliance. Please make this information available to the person installing the appliance – doing so could reduce your installation costs.
-
Page 6: Parts Supplied
PARTS SUPPLIED CLASSIC RANGEHOOD HC90PCTX1, HC90PCB1, HC90PCW1 and HC90PCR1 models INSTALLATION GUIDE NZ AU Rangehood hood (1) Installation guide (1) Chimney (1) Upper chimney bracket (1) Chimney bracket (1) Expansion plug (10) Upper chimney (1) 150 mm diameter ducting 10 mm self-tapping... -
Page 7: Prior To Installation
PRIOR TO INSTALLATION Fisher & Paykel is not liable for any damage caused by not following these instructions. Please read the instructions carefully. Unpack the rangehood. Ensure the voltage (V) and the frequency (Hz) indicated on the rating plate match the voltage and frequency of the installation site. -
Page 8: Product Dimensions
PRODUCT DIMENSIONS Power cord location PLAN PROFILE FRONT BOTTOM... - Page 9 PRODUCT DIMENSIONS PRODUCT DIMENSIONS A Maximum overall height of product B Minimum overall height of product C Overall width of product D Overall depth of product E Height of hood F Width of chimney G Depth of chimney H Distance from centre of ducting outlet to back of product I Distance from centre of ducting outlet to side of chimney J Diameter of ducting outlet K Distance between centre of lights...
-
Page 10: Installation Height
INSTALLATION HEIGHT HEIGHT DIMENSIONS A Ducted installation Minimum height Maximum height 975 Recirculation 676 Minimum height Maximum height 975 B Height from top of cooktop to base of product 650 – 750 This rangehood must be installed no lower than the minimum height indicated in the table above. -
Page 11: Attachment Dimensions
ATTACHMENT DIMENSIONS Upper chimney bracket attachment points Chimney bracket attachment points Upper rangehood hood attachment points Lower rangehood attachment points ATTACHMENT DIMENSIONS A Lower rangehood attachment point width B Lower rangehood attachment point height C Upper rangehood attachment point width D Upper rangehood attachment point height E Chimney bracket attachment point width F Chimney bracket attachment point height... -
Page 12: Venting Options
VENTING OPTIONS Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled. The rangehood can be installed to operate with the exhaust air ducted externally from the kitchen, or installed to operate with the exhaust air recirculating within the kitchen. Ducted For ducted installation it is recommended that 150 mm diameter, rigid or semi-rigid ducting is used. - Page 13 VENTING OPTIONS Recirculating To enable the product to operate with the air recirculating, please purchase a recirculation diverter and carbon filters (refer to the ‘Parts and accessories’ section). This recirculation diverter is installed after a short length of ducting and is required to channel the air out the side vents at the top of the chimney.
- Page 14 ELECTRICIAL REQUIREMENTS Rating plate location Before connecting the rangehood to the power supply, ensure the voltage and frequency indicated on the rating plate match that of the installation location: MODEL FREQUENCY VOLTAGE HC90 50 Hz 230 V...
-
Page 15: Prepare Rangehood
PREPARE RANGEHOOD Warning: Failure to install the screws or fixing device in accordance with these instructions may result in an electrical hazards. Place the ducting adapter onto the rangehood and screw it into place using 10mm screws. Remove the filters – pull the catch and tilt the filter downwards until it disengages from the supports. - Page 16 ATTACH BRACKETS AND MOUNTING SCREWS Temporarily mark the height of the bottom of the rangehood and the centre of the cooktop on the wall according to the information provided in 'Installation Height'. Attach the chimney bracket and upper chimney bracket (if using the upper chimney).
-
Page 17: Hang Rangehood
HANG RANGEHOOD Hang the rangehood off the upper rangehood mounting screws. Hang off the keyhole attachment points on the back of the rangehood then tighten the screws. Attach the lower rangehood mounting screws to fix the rangehood to the wall. Refit the filters. Attach ducting to the ducting adapter using aluminium duct tape. - Page 18 ATTACH CHIMNEY Bend the tabs on the chimney. Rear view Place chimney around the rangehood chassis and hang off the chimney bracket. Extend the upper chimney and attach to the upper chimney bracket with 10mm screws.
-
Page 19: Parts And Accessories
PARTS AND ACCESSORIES ITEM REFERENCE NUMBER Semi rigid ducting kit 150 mm (eaves) PD-RHK150E Semi rigid ducting kit 150 mm (wall) PD-RHK150W Recirculation carbon filter x2 792481 Recirculation diverter 792560... -
Page 20: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER … Rangehood is correctly installed … All connections are secure … Connections have not pierced any electrical or water lines within the wall … Ducting has not been crushed or bent in any area's …... - Page 24 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The product specifications in this document apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
