5.1 Track Layouts, Routing, and Metering

5.1 Format Tracks
Film
(Pro Tools Standard,
and C24)
L C R Ls Rs LFE
SMPTE/ITU
L C R Ls Rs LFE
(top to bottom)
(Control|24 Monitoring)
L R C LFE Ls Rs
DTS
(ProControl Monitoring)
L C R Ls Rs LFE
L R Ls Rs C LFE

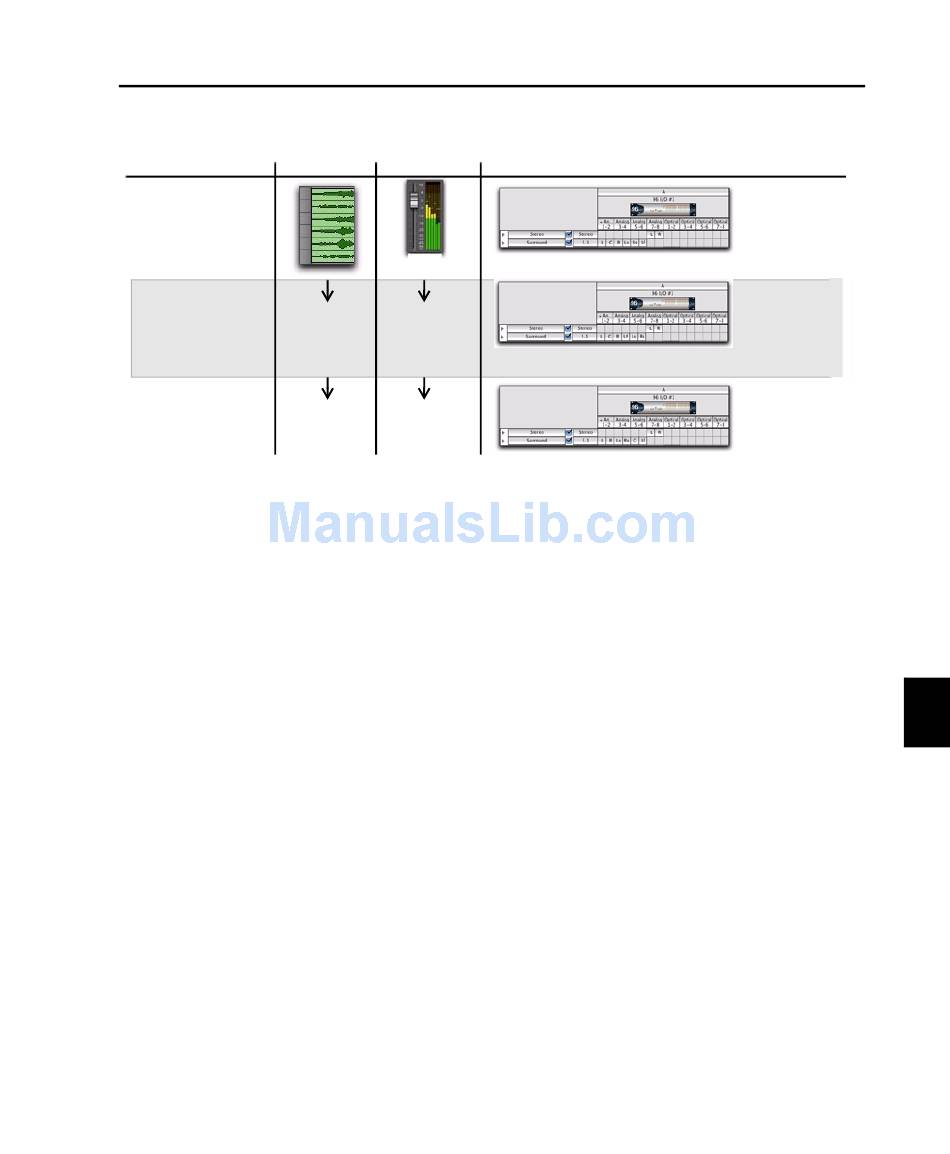

Figure 14. Track layout of different 5.1 formats
Track Meters Channel Map in I/O Setup
L C R Ls Rs LFE
same same
L C R Ls Rs LFE
(left to right)
same same
L C R Ls Rs LFE
L C R Ls Rs LFE
L R C LFE Ls Rs
L R Ls Rs C LFE
