DigiDesign Pro Tools 8.0 Reference Manual page 1011

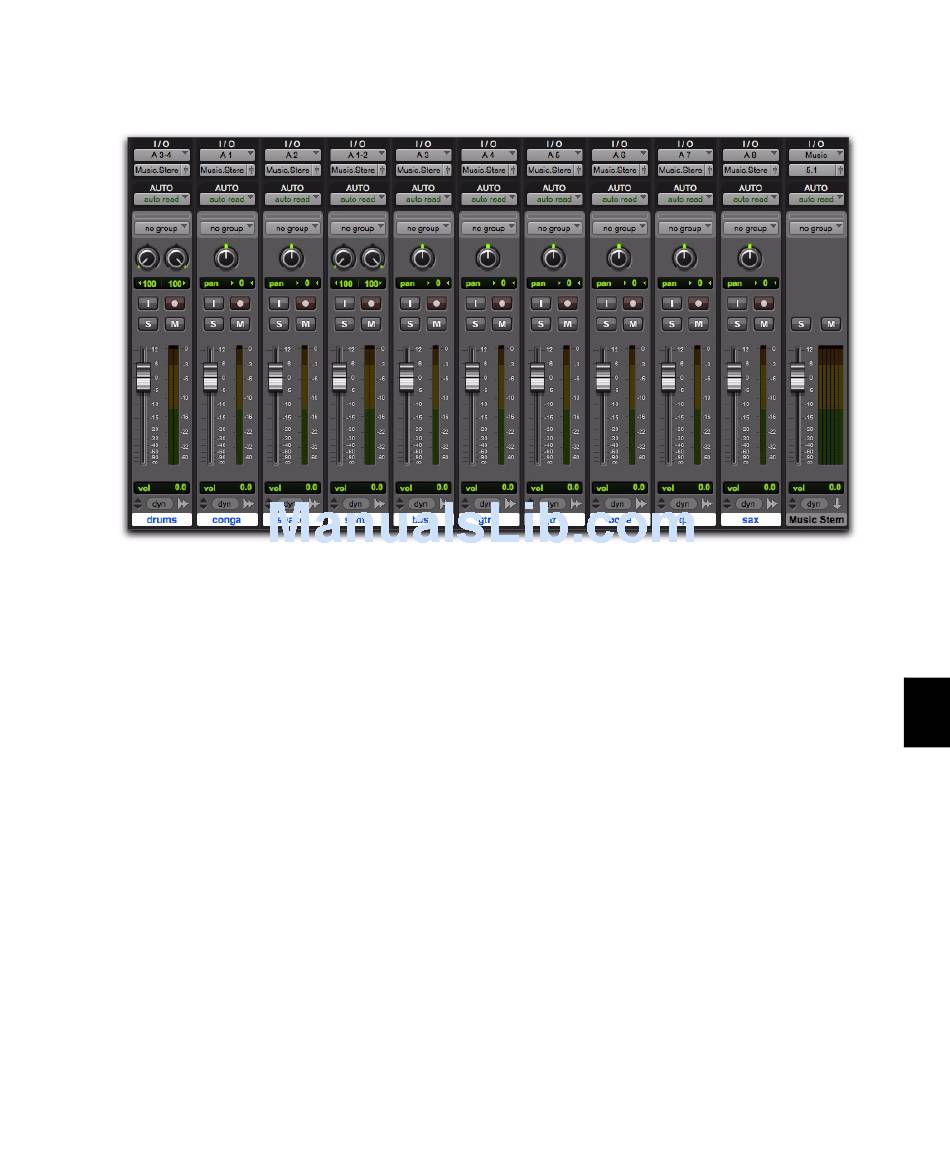

Figure 21 shows a routing configuration for music tracks.
Figure 21. Music stem
Most of the music tracks in this example are
routed to the front left/right channels, using a
stereo sub-path. A 5.1 Auxiliary Input controls
the bus and stem output.
Multiple Output Assignments
Multiple output assignments make it possible to
configure a number of multi-format mixes. For
example, you can assign an additional stereo
output to tracks and create a stereo mix at the
same time as a 5.1 mix. For more information,
see "Multiple Output Assignments" on
page 840.
LFE Examples
LFE tracks and other audio can contribute to the
LFE output in two ways:
• Using the LFE fader in Output windows. This
LFE signal is post-fader.
– or –
• Using a custom sub-path to route channels
discretely.
Chapter 45: Multichannel Tracks and Signal Routing 993
