MIDI Track Channel Strips
Each MIDI track has its own set of channel strip
controls, including MIDI volume, pan, record
enable, automation mode, solo, mute, patch as-
signment, and channel assignment. MIDI tracks
also have a Comments view to type and display
comments.
Track Color Coding
MIDI Input selector
MIDI Output selector
Automation Mode selector
Group ID
MIDI Pan knob
MIDI Pan indicator
Record Enable
Solo/Mute buttons
MIDI Volume fader
MIDI Velocity meter
Patch Select
MIDI Volume indicator
Track Type indicator
Track Name button
Track Comments
Track Color Coding

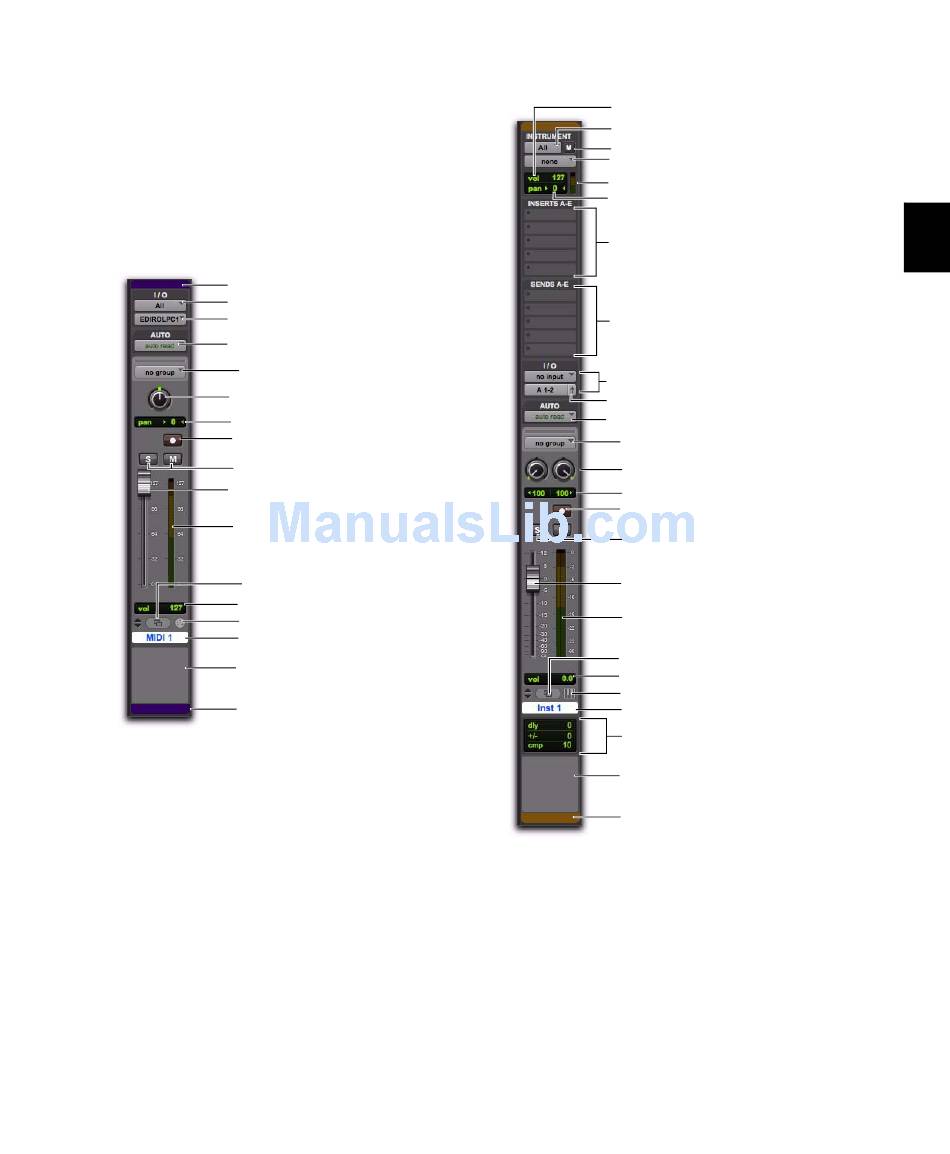

MIDI channel strip
Instrument Track Channel Strips
Each Instrument track has its own set of channel
strip controls, including audio (like an Auxiliary
Input track) volume, pan, automation mode,
solo, and mute, and MIDI (like a MIDI track)
record enable. Instrument tracks have an addi-
tional Instruments view that provides controls
for MIDI input, output, mute, volume, and pan
(like on a MIDI track). Instrument tracks also
have a Comments view to type and display com-
ments.
MIDI Volume
MIDI Input selector
MIDI Mute button
MIDI Output selector
MIDI meter (Velocity)
MIDI Pan
Inserts (A–E shown)
Sends (A–E shown)
Audio Input/Output Path selectors
Output Window button
Automation Mode selector
Group ID
Pan knobs
Pan indicators
Record Enable
Solo/Mute buttons
Volume fader
Level meters
Patch Select
Volume/Peak/Delay indicator
Track Type indicator
Track Name
Delay Compensation view (Pro Tools HD only)
Track Comments
Track Color Coding
Stereo Instrument track channel strip, Instruments view
shown
