X-TREME XM-3100 Operation And Maintenance Instructions

X-TREME XM-3100 Operation And Maintenance Instructions

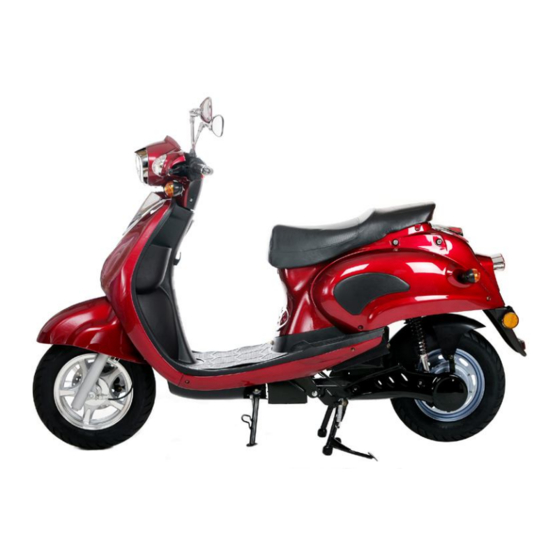

Electric moped

Advertisement

TM
X-Treme
Electric Moped
Operation and Maintenance Instructions
Electric Moped
XM-3100
Revised 11/6/08

Operation and Maintenance

Instructions
We strongly recommend that you read this entire
manual before using your vehicle for the first time
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XM-3100 and is the answer not in the manual?

Questions and answers

Summary of Contents for X-TREME XM-3100

  • Page 1: Operation And Maintenance

    X-Treme Electric Moped Operation and Maintenance Instructions Electric Moped XM-3100 Revised 11/6/08 Operation and Maintenance Instructions We strongly recommend that you read this entire manual before using your vehicle for the first time...
  • Page 2: Table Of Contents

    Contents Page General Instruction before riding Page 3 Point Inspection Page 4 Assembly Instructions Page 5 Technical Specifications Page 6 Equipment Location Page 7-8 Ignition Key Positions Page 9 Handle Bar Controls Page 10 Accelerating & Braking Page 11 Battery & Charging Page 12 Performance Page 13...
  • Page 3: General Instruction Before Riding

    General Instructions Before Riding 1) To ensure the vehicle is functioning correctly, do a quick check of the vehicle’s tires and check that the brakes are working. (For more detailed maintenance instructions see the Maintenance Schedule). Your vehicle has been thoroughly checked by our engineers before delivery but on the spot checks are equally important.
  • Page 4: Point Inspection

    Point Inspection before every use Item Action Front Brake Squeeze right hand brake and push the vehicle to see whether it rolls easily. If it does, then the brake must be tightened. Tighten the bolt until the vehicle will no longer move with the brakes applied. Rear Power/Disc Brake Listen for any noticeable grinding or squealing from the tires while the brake is applied.
  • Page 5: Assembly Instructions

    Assembly Instructions Installing the mirrors 1. Mirrors can be easily fixed to the handle bars between the grips and the brake handle. 2. Screw in the mirror clockwise. The mirror that goes on the left controller is curved to the left and the mirror that goes on the right controller curves to the right.
  • Page 6: Technical Specifications

    Technical Specifications Motor Power 3000W Brushless Hub Motor Battery DC 60V, 38AH with the green saver ( silicone power) batteries Charger 5A,110V~250V/50 Hz ~60Hz Charging Time 6~10 Hours Life of Battery 400 Deep Cycles Wheelbase 10 Inches Torque 110Nm (76 ft-lb) Top Speed 40 mph (65km/H) Single Charge...
  • Page 9: Ignition Key Positions

    Ignition Key Position Description Position Key cannot be taken out when power is on. Key can be taken out when power is off Lock handle To prevent theft, turn the Handle Bar to the far left and turn the key into the lock position. The key can be taken out when handle bar is in the lock position.
  • Page 10: Handle Bar Controls

    Left handle bar controls Headlight Switch High Beam – Push switch up Low Beam – Push switch down Horizontal Switch Left Turn Signal – Slide switch to the left Right Turn Signal – Slide switch to the right Turning off Signal – Press central release button Horn Button Sounds Horn –...
  • Page 11: Accelerating & Braking

    Accelerating and Braking Throttle Tips 1. Turn the key to the ‘ON’ position, and turn the Throttle gradually to accelerate. 2. To prevent losing control of the vehicle, turn the Throttle slowly until the speed increases. 3. Do not turn the Throttle until you are in the position to drive. 4.
  • Page 12: Battery & Charging

    Battery Gauge and Charging Instructions Color Description Green While riding, when the battery is fully charged the gauge light will be green. Green (2 This light indicates that the battery is 75% of full charge Yellow When power is low (around 50%) the battery gauge will turn to yellow.
  • Page 13: Performance

    Performance 1. A range of 57Miles (92km) has been recorded, yet the distance and speed depend upon various elements of the rider’s style and the road conditions. A 20mph constant speed will ensure the longest range. Other factors include weather, vehicle condition, and battery charge.
  • Page 14: Maintenance

    Maintenance This electric motor bike represents generation environmentally friendly two-wheeled transportation. Therefore, good maintenance will play a major role in keeping your vehicle in good working condition and prolonging the life of the batteries. Please follow these suggestions:  To prevent rust always keep your vehicle dry and clean. ...
  • Page 15: Maintenance Schedule

    Maintenance Schedule Mileage 400 1000 2000 3000 4000 5000 6000 Maintenance Battery Charger Tire Pressure Tire Wear Brake System Brake Nuts Bolts Mileage 7000 8000 9000 10,000 11,000 12,000 Maintenance Battery Charger Tire Pressure Tire Wear Brake System Brake Nuts Bolts A: Adjust C: Check...
  • Page 16: Frequently Asked Questions

    What about parts, , is it a problem getting parts for the XM-3100? ALL parts can be purchased directly from the supplier including batteries, tires, bulbs, body shells, seats etc.
  • Page 17 outlet, the controller and the internal battery set when washing or cleaning Do you need to wear a helmet to drive the electric vehicle? For safety reasons we always advise the use of a helmet. However, local law dictates whether or not riding vehicle law obligates a helmet. Is it easy to recharge the batteries? Yes, it is very easy.
  • Page 18 13. Why is this product the best available in the world today? It has a Brushless motor. We emphasize "brushless" not just because this is the latest technology, but because these permanent magnet motors are supremely reliable! These more expensive motors produce high torque at low speeds, keeping an acceptable balance of torque and energy across the whole speed range.
  • Page 19: Troubleshooting

    Troubleshooting Problem Condition Check Solution When I turn my Power Check power Fasten vehicle on nothing indicator light is off connection and connections. happens. while riding. battery level. Indicating Check battery Recharge light on motor is not and motor battery. illuminated.
  • Page 20 Check the fuse Unplug the in the charger box. charger and replace the fuse. Contact the supplier to order a new charger fuse/charger. Charger has Replace the blown a fuse. charger fuse. The fuse box is located on the floorboard, unscrew the two screws and open the fuse case, and...
  • Page 21: Support

    For General Information or Parts Visit www.x-tremescooters.com For Technical Support or Assistance Visit www.x-tremescooters.com/support/...
