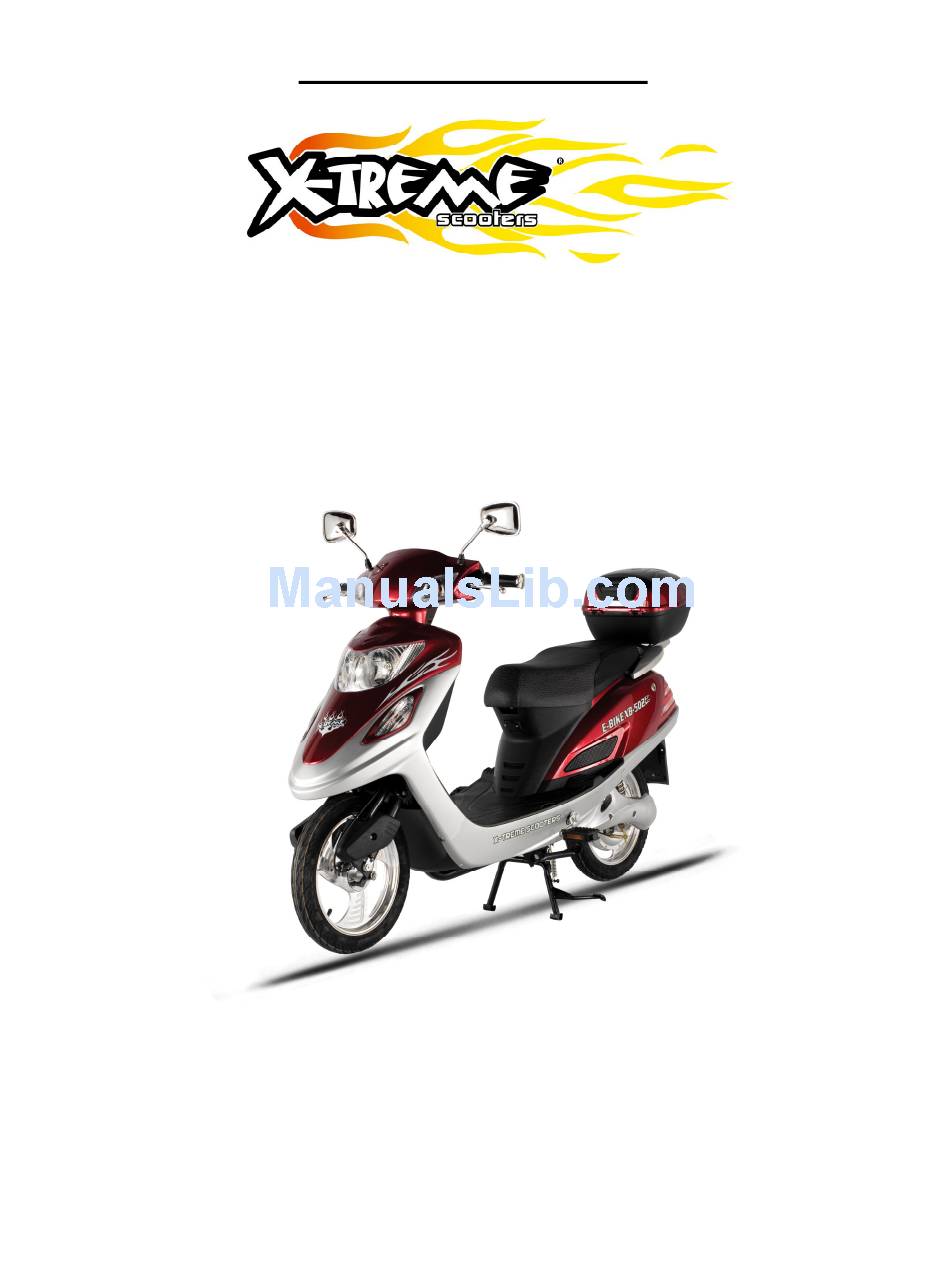

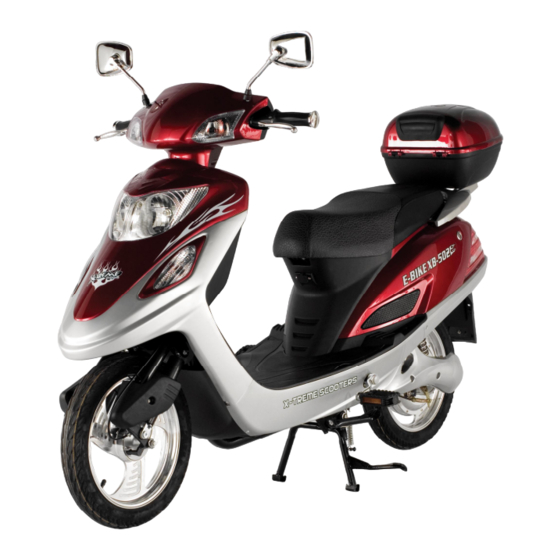

- Page 1 X-Treme Electric Moped XB-502 Electric Moped/Bicycle Read this manual completely before riding your electric bicycle...
-
Page 2: Table Of Contents
DO NOT RETURN TO STORE! Do not use this vehicle for the first time until you have inflated the tires to the correct PSI and completely charged the battery. Failure to follow these instructions may damage your vehicle and void your warranty. CALL TOLL FREE OR GO ONLINE 1-800-772-3852 / www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com... -
Page 3: Riding Safety
Never carry a passenger. The maximum carrying capacity is 300 lbs. Never ride barefoot or wearing sandals. Don’t jump with your XB-502. It puts great stress on everything from frame and forks to drive train. Riders who insist on jumping their XB-502 risk serious damage to their XB-502 as well as to themselves. - Page 4 Operating Reminders and Suggestions Review all instructions carefully before riding the XB-502. Follow all rules and regulations in your area for operating a motorized bicycle. Obey the same road laws as all other road vehicles, including yielding the right-of-way to pedestrians, and stopping at red lights and stop signs.
- Page 5 The battery does NOT require deep discharging. If your XB-502 is put into storage, re-charge its battery at least once every 90 days. Do not store your XB-502 in direct sunlight for an extended time. Store your XB-502 in a dry place. Exposing your XB-502 to rain, snow, or other precipitation may result in damage.
-
Page 6: Product Features
Product features... -
Page 7: Package Contents
Remove axle from front fork & shipping crate and set aside, do not discard. There are 8 installation steps that must be done prior to using your XB-502. Be sure to do them in order and do not skip a step. 1.) INSTALLATION OF FRONT WHEEL AND BRAKE. -
Page 8: Handlebar Installation
Slide axle thru left fork, then spacer before inserting it into the left side of front wheel. Secure with nut on right side (brake side) and tighten securely 2.) HANDLEBAR INSTALLATION Locate and remove the handlebar bolt, washer & nut as shown above. Slide handlebars over post in the correct position, then insert the bolt &... -
Page 9: Headlight/Headlight Fairing Installation
3.) HEADLIGHT/HEADLIGHT FAIRING INSTALLATION Locate and remove packing material from the front headlight fairing. Attach wire clips as shown. Line up headlight fairing to front of scooter being careful not to break the plastic clips underneath. Slide the headlight fairing into place and snap. -
Page 10: Battery Connection & Initial Charging Instructions
Attach left & right foot pedals according to correct side by lining up pedal with bearing on pedal shaft and snap into place. Screw left & right mirrors into place and adjust to appropriate riding need. 7.) BATTERY CONNECTION & INITIAL CHARGING Remove battery pack and locate plug. -
Page 11: Product Specification
Product Specifications 1. Wire diagram 2. Specifications Battery Voltage 48Volt Dc,12Ah Motor Wattage 500W Wheel Size 16 inch Top Speed 20 MPH Charging Time 6-8h Distance of full charge 20 - 25 miles Battery charging cycles Around 350 times Max rider weight 300 Lbs Two rider Left and Right Indicators... -
Page 12: Operation
Operation Your new Electric Bicycle/scooter is a revolutionary new transport product using a sealed lead acid batteries and a super high efficiency electric hub motor designed to ASSIST in the propulsion of you and your bicycle. It is important to note the following riding guidelines to ensure you get the best possible experience from your electric bicycle. - Page 13 Battery Charging and & Battery Safety Charging figure 1-4 Specification: 1．Input（AC） ： 100-240V frequency：50Hz/60Hz 2．Output： 54.60 ± 0.2V 3．Charge current：1.8±0.2A Charging (see figure 1-4) Ensure bike is turned off and key is removed. 1．First connect to the battery charger to the charging socket located below the front of the seat or under the front seat.
- Page 14 4) Plug the end of the charger’s cord into the socket of the adaptor first. Next connect the adaptor to the XB-502 (the charger port in located below the front of the seat). Then plug the chargers’ AC cords into the wall outlet.
- Page 15 Maintenance ----Schedule Service Interval Daily Monthly Every Yearly Months Inspect Tires for wear and condition and inflation Check and adjust Brake Check operation of all lighting and horn devices. Replace globes if necessary Test Battery Capacity Replace Wheel Baring Grease Full Brake Pad Change over Check condition and torque settings of wheel nuts and...
-
Page 16: Support
DO NOT RETURN TO STORE! IF YOU NEED HELP CALL TOLL FREE OR GO ONLINE 1-800-772-3852 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com Revised 3/9/10...
