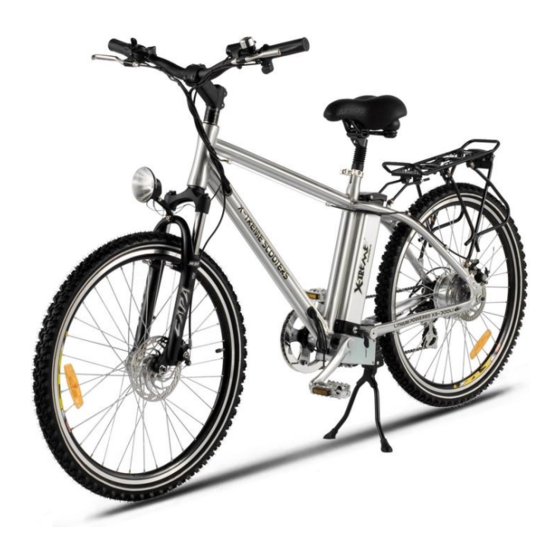

- Page 1 X-Treme Electric Scooters XB-300Li/XB-305LI Electric Mountain bike Owner’s Manual Read this manual completely before riding your mountain bike.
-
Page 2: Table Of Contents
Contents Riding Safety ………………………………………….. · Safety Basics …………………………………………. · Operating Reminders and Suggestions …….. · Wet Weather Riding …………………………….. · Night Riding …………………………………………. · Other Reminders …………………………………… Specifications …………………………………………. Assembly and Setup ……………………………….. Routine Operation ………………………………….. Pre-Ride Check ………………………………………… Steps to Startup ……………………………………… Battery Care and Maintenance…………………. - Page 3 X-TREME has introduced a new and specially developed range of electrically assisted mountain bicycles, called XB-300Li. The XB- 300Li offers a comfortable and affordable alternative when normal cycling becomes too strenuous or the daily trip too long. A XB-300 Li Electric Mountain Bike provides extra energy without much effort.
-
Page 4: Riding Safety
RIDING SAFETY Like any sport, electric bike carries the risk of injury and damage. By choosing to ride the XB-300Li, you assume all responsibility for these risks. Thus, you need to know and practice the rules of safe and responsible riding. -
Page 5: Safety Basics
Wear bright, visible clothing that is not so loose that it can catch on moving parts of the XB-300Li or objects at the side of the road or trail. o Think about your speed, and keep your speed consistent with safe operating conditions. -
Page 6: Operating Reminders And Suggestions
Don’t jump with your XB-300Li. It puts great stress on everything from frame and forks to drive train. Riders who insist on jumping their XB-300Li risk serious damage to their XB-300Li as well as to themselves. o Never carry anything which obstructs your vision or... -
Page 7: Wet Weather Riding
o Concentrate on the path ahead. Avoid potholes, gravel, dirt, wet road, oil, curbs, speed bumps, drain grates and other obstacles. o Be alert for unexpected events, such as opening car doors or cars backing out of concealed driveways. o Be extra careful at intersections and when preparing to pass other vehicles. -
Page 8: Night Riding
Rules of the Road, and take the following precautions: Make sure that your XB-300Li is equipped with correctly positioned and securely mounted reflectors. Make sure your clothing or cargo does not obstruct a reflector or light. -
Page 9: Other Reminders
Other Reminder The battery does NOT require deep discharging. If your XB-300Li is put into storage, re-charge its battery at least once every 90 days. Do not store your XB-300Li in direct sunlight for an extended time. Store your XB-300Li in a dry place. Exposing your XB- 300Li to rain, snow, or other precipitation may result in damage. -
Page 10: Assembly And Setup
Please observe and follow this checklist, even if your XB-300Li was out of its carton when you purchased it. This will ensure its safe and reliable operation. -
Page 11: Routine Operation
3) Verify the proper adjustment and function of the brakes. 4) Make sure the XB-300Li is in good mechanical order. Visually inspect and hand-check the vehicle, and snug any loose bolts, screws, or other fasteners. -
Page 12: Battery Care And Maintenance
Battery Care and Maintenance What to Expect of Your Batteries The battery is a sealed lithium type. With normal use, it can last for well over 400 charge/discharge cycles. Know that normal use should mean partial, and not complete discharging. If you employ “shallow” discharge cycles, using less than 30% of battery’s capacity, the battery can achieve up to 600 charge/discharge cycles. - Page 13 What’s Inside Your XB-300Li Battery The Battery is composed seven-cell, 8 Amp-hour capacity batteries in series, for a total capacity of 24 V, 8 Ah. The component batteries are a standard, commercially available size. Keep this in mind, however, should you choose to service your battery.
-
Page 14: Battery Charging
0 ºF, the battery power will decline more than one third. So it is natural that the XB-300Li will not reach its normal mileage in winter or in cold weather. When the air temperature is up to 68 ºF, the XB-300Li will achieve its normal range capability. - Page 15 4) Plug the end of the charger’s cord into the socket of the adaptor first. Next connect the adaptor to the XB-300Li (the charger port in located below the front of the seat). Then plug the chargers’ AC cords into the wall outlet.
- Page 16 Lubrication You should inspect and maintain your XB-300Li and lubricate the mechanical power transmission components. The brake cables may also need lubrication Lubricate the brake cables with silicone or graphite lubricant.
-
Page 17: Scheduled Maintenance
Scheduled Maintenance XB-300Li should be checked from time to time. Refer to the maintenance schedule in the following chart: adjust ◆ change ▲ lubricate ■ Check ● Parts daily days days Bolts, nuts, screws etc-to ensure that ● ◆ ● ■... - Page 18 Wire diagram...
- Page 19 DO NOT RETURN TO STORE! IF YOU NEED HELP CALL TOLL FREE OR GO ONLINE 1-800-772-3852 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com...
