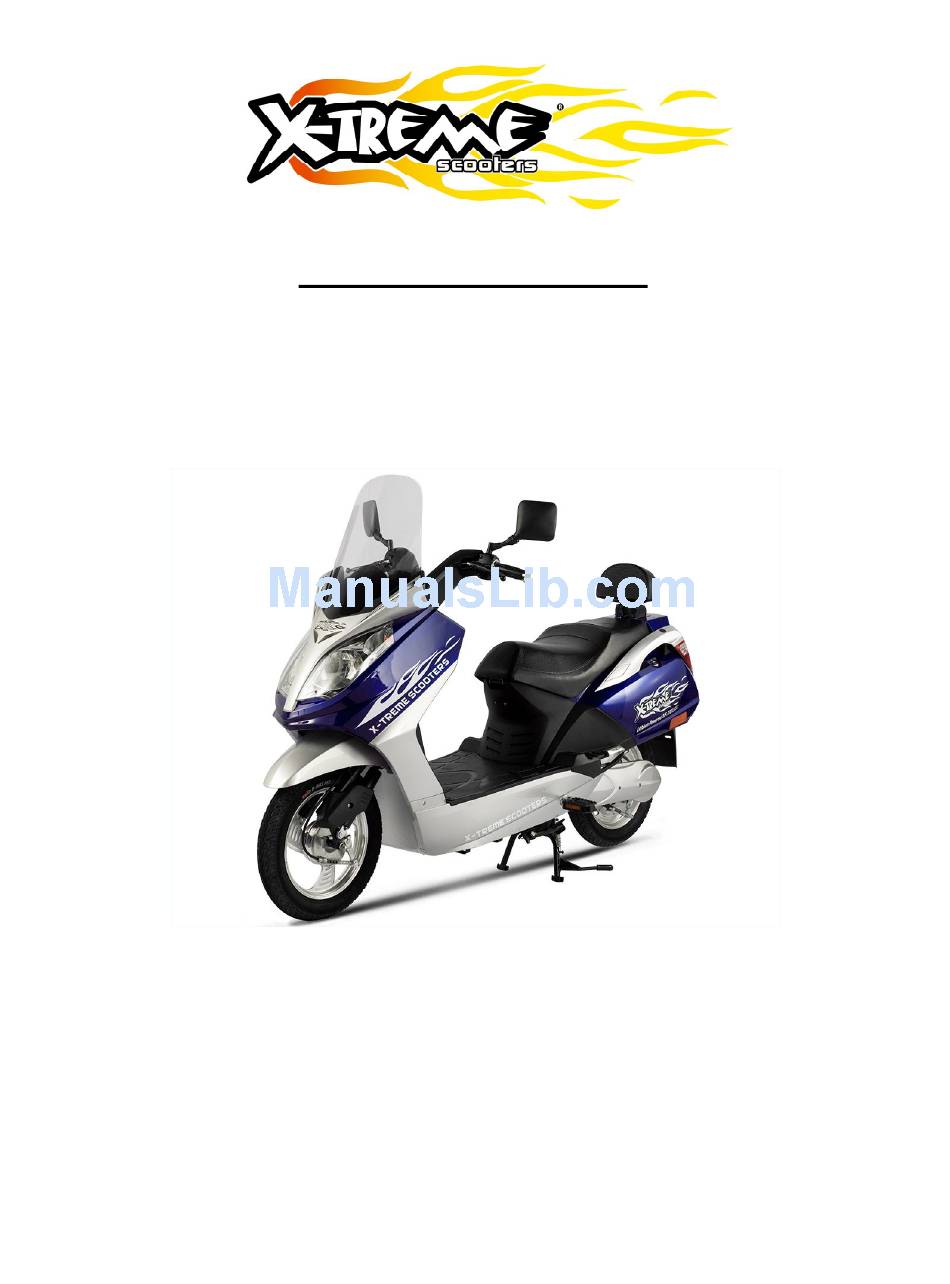

X-TREME X-700Li Owner's Manual

Electric bicycle/moped

Advertisement

Quick Links

TM
X-Treme
Electric Moped
XB-700Li
Electric Bicycle/Moped
Read this manual completely before riding your electric bicycle
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-700Li and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for X-TREME X-700Li

  • Page 1 X-Treme Electric Moped XB-700Li Electric Bicycle/Moped Read this manual completely before riding your electric bicycle...
  • Page 2: Table Of Contents

    DO NOT RETURN TO STORE! Do not use this vehicle for the first time until you have inflated the tires to the correct PSI and completely charged the battery. Failure to follow these instructions may damage your vehicle and void your warranty. CALL TOLL FREE OR GO ONLINE 1-800-772-3852 www.x-tremescooters.com/support/...
  • Page 3: Riding Safety

    RIDING SAFETY Like any sport, biking carries the risk of injury and damage. By choosing to ride the XB-700Li, you assume all responsibility for these risks. Thus, you need to know and practice the rules of safe and responsible riding. YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS INVOLVING THE USE OF THIS ELECTRIC BICYCLE.
  • Page 4 when you are very tired. Each of these conditions increases the risk of accident. Never allow children to ride. Never allow others to ride without reading and understanding these instructions. Operating Reminders and Suggestions Review all instructions carefully before riding the XB-700Li. Follow all rules and regulations in your area for operating a motorized bicycle.
  • Page 5 reflectors. Make sure your clothing or cargo does not obstruct a reflector or light. Wear light colored, reflective clothing and accessories, any reflective device or light source that moves will help you get the attention of approaching motorists, pedestrians and other traffic. Ride slowly.
  • Page 6: Product Features

    Product features...
  • Page 7: Package Contents

    Package Contents:  XB-700Li Moped/Bicycle  110-120VAC 5AH Charger  Left & Right Mirrors  Front Tire  Left & Right Foot Pedals  Windshield & hardware  Windshield Y Fairing  Ignition Keys  Back Rest & bolts  Foot Pad ...
  • Page 8: Handlebar Installation

    Slide axle thru left fork, then spacer before inserting it into the left side of front wheel. Secure with nut on right side (brake side) and tighten securely 2.) HANDLEBAR INSTALLATION Locate and remove the handlebar bolt, washer & nut as shown above. Remove 4 external screws &...
  • Page 9: Windshield Installation

    Slide handlebars over post in the correct position, then insert the bolt & concave washer into the front (speedometer side) of the handlebars and secure with nut on the back (riders side). Concave washer should be partially inserted into the handlebar and make contact with internal post to be tightened properly and securely.
  • Page 10: Backrest/Pedals/Mirror Installation

    4-6.) BACK REST, PEDAL & MIRROR INSTALLATION Install rubber covers over back rest posts. Mount back rest to bike by inserting bolts up thru the bottom (inside trunk) & tighten. Attach left & right foot pedals according to correct side by lining up pedal with bearing on pedal shaft and snap into place.
  • Page 11: Battery Connection & Initial Charging Instructions

    7.) BATTERY CONNECTION & INITIAL CHARGING Unlock battery box located on the foot plate. Remove battery pack and locate plug. Plug battery wire into battery pack and reinstall pack into foot plate. Lock battery pack in place. Charge the batteries until the light turns green indicating that the battery is completely charged.
  • Page 12: Product Specification

    Product Specifications 1. Wire diagram 2. Specifications Battery Type LiPo4 Battery Voltage 51.2 VDC Motor Wattage 700W Wheel Size 16 inch Top Speed 20 MPH Charging Time 3-4hrs Distance of full charge 25 – 35 miles Battery charging cycles Around 500~700 times Max rider weight 350 Lbs Two rider...
  • Page 13: Operation

    Operation Your new Electric Bicycle/scooter is a revolutionary new transport product using many lightweight high-powered Lithium batteries and a super high efficiency electric hub motor designed to ASSIST in the propulsion of you and your bicycle. It is important to note the following riding guidelines to ensure you get the best possible experience from your electric bicycle.
  • Page 14: Battery Charging & Safety

    Battery Charging and & Battery Safety Charging figure 1-4 Charging (see figure 1-4) Ensure bike is turned off and key is removed. 1.First connect to the battery charger to the charging socket located below the front of the seat or under the front seat.
  • Page 15: Basic Maintenance & Schedule

    Battery Charging Safety Notes 1) While charging the Battery, keep the key switch OFF. 2) Verify that you are using the correct charger for your vehicle, and that the charger input power is compatible the “house current” in your area. 3) Keep the charger and battery away from water to prevent electrical shock and shorting.
  • Page 16: Rear Wheel Assembly Instructions

    Maintenance ----Schedule Service Interval Daily Monthly Every Yearly Months Inspect Tires for wear and condition and inflation Check and adjust Brake Check operation of all lighting and horn devices. Replace globes if necessary Test Battery Capacity Replace Wheel Baring Grease Full Brake Pad Change over Check condition and torque settings of wheel nuts and...
  • Page 17 3. Remove the tightening screw. See figure 1-7 & figure 1-8 figure 1-7 figure 1-8 4. Remove the two nuts on both sides of the rear wheel. See figure 1-9 figure 1-9 5. Slide the wheel forward to allow slack in the chain. 6.
  • Page 18 Front Wheel Removal Instructions 1. Remove the two nuts from both sides of the front wheel. See figure 1-10 figure 1-10 2. Remove the screw from the end of Brake Cable, and then pull the cable out. Then remove the axle and spacer as shown below in figure 1-12 &...
  • Page 19: Other Helpful Instructions

    Other Helpful Instructions Pedals 1. Use a pedal wrench of 16mm spanner to tighten pedals. 2. Check and tighten pedal crank bolts with 14mm socket. Tires 1. Inflate tire using a pump to 35-40 psi. Remember lower tire pressures will negatively impact performance by causing too much resistance, but over inflating may cause the tube to burst.
  • Page 20: Support

    DO NOT RETURN TO STORE! IF YOU NEED HELP CALL TOLL FREE OR GO ONLINE 1-800-772-3852 www.x-tremescooters.com/support/ For General Information or Parts Visit www.x-tremescooters.com Revised 6/7/10...
